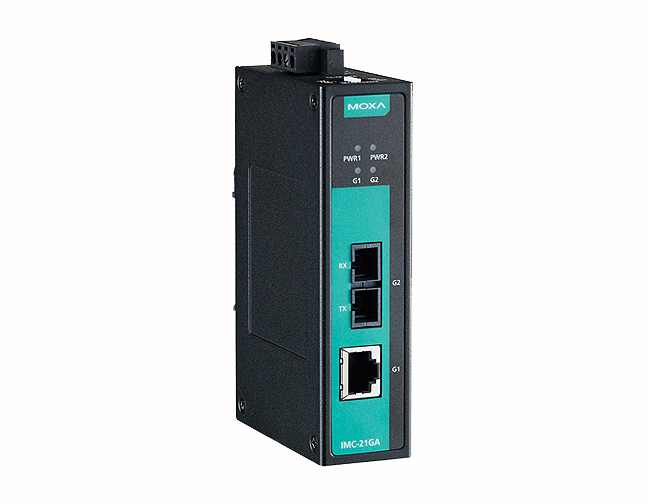

IMC-21GA-LX-SC - Industrial Gigabit Media Converter, Single-Mode 10km, SC, -10 to 60 Degree C
by MOXA

The IMC-21GA-LX-SC industrial Gigabit media converters are designed to provide reliable and stable 10/100/1000BaseT(X)-to-100/1000Base-SX/LX or selected 100/1000Base SFP module media conversion. The IMC-21GA supports IEEE 802.3az (Energy-Efficient Ethernet) and 10K jumbo frames, allowing it to save power and enhance transmission performance. All IMC-21GA models are subjected to a 100% burn-in test, and they support a standard operating temperature range of 0 to 60°C and an extended operating temperature range of -40 to 75°C.

Ethernet Interface

• 10/100/1000BaseT(X) Ports (RJ45 connector)

  1

• 1000BaseLX Ports (single-mode SC connector)

  IMC-21GA-LX-SC models: 1

• Magnetic Isolation Protection

  1.5 kV (built-in)

• Optical Fiber

Power Parameters

• Input Current

  284.7 mA @ 12 to 48 VDC

• Input Voltage

  12 to 48 VDC

• Overload Current Protection

  Supported

• Power Connector

  Terminal block

• Power Consumption

  284.7 mA @ 12 to 48 VDC

Physical Characteristics

• Housing

  Metal

• Dimensions

  30 x 125 x 79 mm (1.19 x 4.92 x 3.11 in)

• Weight

  170 g (0.37 lb)

• Installation

  DIN-rail mounting

Environmental Limits

• Operating Temperature

  Standard Models: -10 to 60°C (14 to 140°F)
  Wide Temp. Models: -40 to 75°C (-40 to 167°F)

• Storage Temperature (package included)

  -40 to 75°C (-40 to 167°F)

• Ambient Relative Humidity

  5 to 95% (non-condensing)

Standards and Certifications

• EMC

  EN 55032/24

• EMI

  CISPR 32, FCC Part 15B Class A

• EMS

  IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
  IEC 61000-4-8 PFMF
  IEC 61000-4-11

• Environmental Testing

  IEC 60068-2-1
  IEC 60068-2-2
  IEC 60068-2-3

• Safety

  EN 60950-1, UL 60950-1

• Vibration

  IEC 60068-2-6

MTBF

• Time

  2,762,058 hrs

• Standards

  MIL-HDBK-217F
