POE-CONV-2AF-AT - Gigabit PoE Converter

Tycon Systems POE-CONV-2AF-AT - Gigabit PoE Converter. Two 802.3af input, One 802.3at Output. 30W
by TYCON SYSTEMS

Very Compact Size
Converts two 802.3af 16W ports to one 802.3at 30W port
Allows use of standard PoE switches to power higher power devices

Description
Specification
Datasheet

The POE-CONV-2AF-AT are unique Gigabit PoE converters which allow a customer to use existing PoE switches to provide PoE+ functionality. They work by turning two 802.3af ports into one 802.3at port.

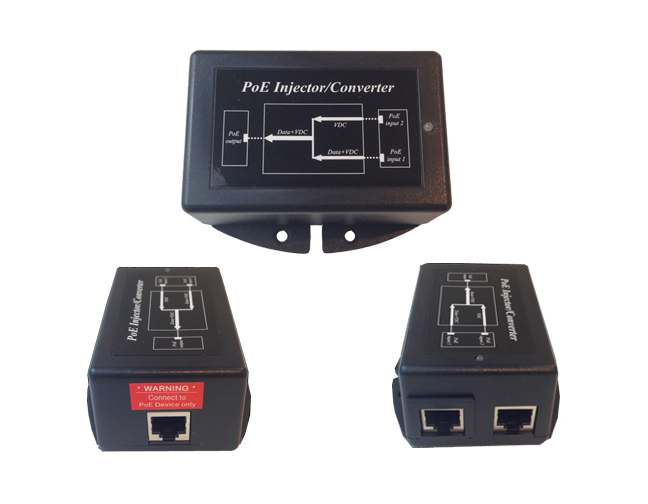

There are two RJ45 socket for input and one RJ45 socket for the output. One input accepts Data and Power, the second input accepts only Power. The design is isolated so input and output are isolated. The devices include protections for short circuit and overload.

Note: If the inputs come from the same PoE switch then the output power is full power. If the inputs come from different PoE sources, then the output power may be ½.

	POE-CONV-2AF-AT
Input	Qty 2 802.3af Mode A or 48V Passive PoE
Output	802.3at Mode A 48V 30W, 2 Pair PoE
Input Connector	Shielded RJ45 Socket x 2
Output Connector	Shielded RJ45 Socket
Load Regulation	5%
Line Reg, Ripple, Noise	1%
Ethernet Speed	10/100/1000MB, GigE, Gigabit
LED	Blinking Red: Only 1 input powering; Solid Red: Two Inputs Powering Solid Green: Output is active with device plugged in
Efficiency	90% Min
EMC Standards	FCC Class B NE55022 Class B
Isolation Voltage	1500VDC
Isolation Resistance	100M Ohms Minimum
Operating Temperature	-30 to +60°C (-22 to +140°F)
Operating Humidity	5% - 90% non-condensing
Storage Temperature	-40 to +85°C (-40 to +176°F)
Dimensions (LxWxH)	65 x 45 x 26mm (2.6 x 1.8 x 1”)
Weight	62g (2.2oz)
Warranty	1 Year
