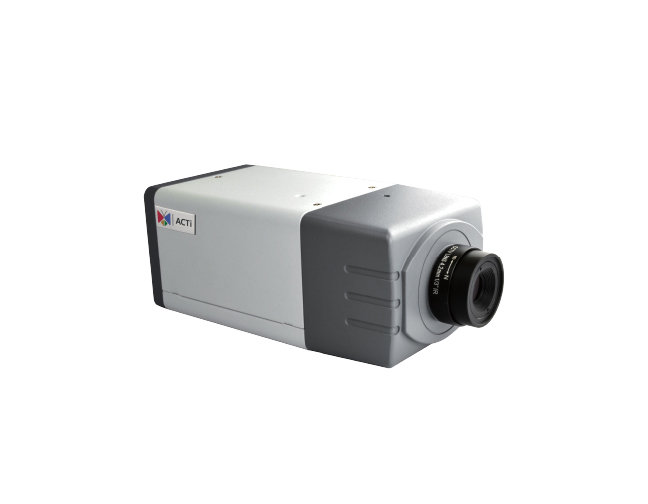

E217 - 2MP Box with D/N, Basic WDR, SLLS, Fixed Lens by ACTi
|
|
|
- 2 Megapixel with 1080p
- Day & Night with Superior Low Light Sensitivity
- Fixed Lens with f2.93mm / F2.0, Fixed Iris, Manual Focus
- Extreme WDR (145 dB)
- 60 fps at 1920 x 1080
- Super Wide Angle
- Built-in Analytics
|
|
|
E217 is
a 2MP Video Analytics Box with D/N, Extreme WDR, SLLS, Fixed lens, f2.93mm/F2.0 (HOV:101.3°), H.264, 1080p/60fps, 2D+3D DNR, Audio, MicroSDHC, PoE/DC12V, DI/DO, RS-422/RS-485, Built-in Analytics
Device |
E217 |
Product Type |
Box |
Maximum Resolution |
2MP |
Application Environment |
Indoor/Outdoor |
Image Sensor |
Progressive Scan CMOS |
Sensor Size |
1/2.8 " |
Effective Pixels |
1944(H) X 1224(V) (2.38 MP) |
Day / Night |
Yes |
Low Light Sensitivity |
Superior |
Minimum Illumination |
Color: 0.1 lux at F2.0 (30 IRE , 2400 K); B/W: 0.05 lux at F2.0 (30 IRE, 2400 K) |
Color to B/W Switch |
ISP based switch, configurable |
Mechanical IR Cut Filter |
Yes |
IR Sensitivity Range |
700-1100nm |
IR LED |
No |
Electronic Shutter |
1/5-1/2000sec (manual mode); 1/5-1/10000sec (auto mode) |
Horizontal Resolution (TV Lines) |
1100 TVL |
S/N Ratio |
56 dB |
Lens |
|
Focal Length |
Fixed focal, f2.93mm |
Aperture |
F2.0 |
Iris |
Fixed iris |
Focus |
Manual focus |
Lens Mount |
CS Mount (interchangeable lens) |
Horizontal Viewing Angle |
101.3° |
Vertical Viewing Angle |
54.3° |
PTZ |
|
Pan, Tilt or Zoom protocol |
Visca, Pelco-D, Pelco-P |
Video |
|
Compression |
H.264 (Baseline/ Main/ High profile), MJPEG |
Maximum Frame Rate vs. Resolution |
60 fps at 1920 x 1080
60 fps at 1280 x 720
30 fps at 640 x 480
30 fps at 320 x 240 |
Multi-Streaming |
Simultaneous triple streams |
Bit Rate |
28Kbps - 6Mbps (per stream) |
Bit Rate Mode |
Constant, Variable |
Wide Dynamic Range |
Extreme WDR (145 dB) |
Image Enhancement |
White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless, Digital Image Stabilizer, Defogging |
Digital Noise Reduction |
2D + 3D DNR |
Privacy Mask |
4 configurable regions |
Text Overlay |
Yes |
Built-in Analytics |
Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Loitering |
VMS-based Analytics |
Object Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection, Heat Map, Dwell time, People Queue management, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
Image Orientation |
Rotation |
IVS performance |
Certain algorithms may require more computing power, which may limit the number of algorithms that can be concurrently used in the camera. Please test the actual performance before using in a project. |
Audio |
|
Audio Type |
2-way, Line-in, Line-out |
Audio Compression |
8 kHz, 16 bit encoding, Mono, PCM, G.711 |
Network |
|
Network Protocol & Service |
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
Ethernet Port |
1 x RJ-45 connector |
Security |
IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control |
Event |
|
Event Trigger |
Video motion detection (10 regions), External device through digital input, Sound detection, Intelligent event detection |
Event Response |
Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output |
Integration |
|
Unified Solution |
Fully compatible with ACTi software |
Software Development Kit |
Yes |
GPS Position |
Manual setting |
ONVIF Compliant |
Yes, Profile S, Profile G |
Web Browser |
IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime |
Auto Firmware Upgrade |
Yes |
Interface |
|
Serial Port |
1, RS-485/RS-422, Terminal block |
Audio Interface |
Terminal block |
Auto Iris Connector |
External connector for DC iris lens |
Local Storage |
MicroSDHC, MicroSDXC memory card slot (card not included) |
Digital Input/Output |
1/1 |
General |
|
Power Source |
DC 12V, PoE Class 3 (IEEE802.3af) |
Power Consumption |
7 W (PoE) |
Dimensions |
(W x H x D): 14.2mm x 6.7mm x 6.5mm (5.6" x 2.6" x 2.6") |
Environmental Casing |
Optional housing (IP66) |
Mount Type |
Bracket, Pole Mount, Corner Mount |
Starting Temperature |
-10°C ~ 50°C (14°F ~ 122°F) |
Operating Temperature |
-10°C ~ 50°C (14°F ~ 122°F) |
Operating Humidity |
10% - 85% RH |
Approvals |
CE, FCC, UL (for optional PoE injector) |
|
|
