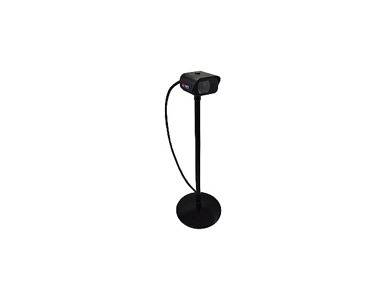

Q22-K1 - 2MP Interview Outdoor Micro Box with Basic WDR, SLLS, Fixed lens
by ACTi
|
|
|
|
- 2 Megapixel
- Fixed Lens with f2.55mm/F2.2
- Basic WDR
- Super wide angle
- Event trigger, response and notification
|
|
|
Q22-K1 2MP Outdoor Micro Box with Basic WDR, SLLS, Fixed Lens
Device |
Q22-K1 |
Product Type |
Micro Box |
Maximum Resolution |
2MP |
Application Environment |
Outdoor |
Image Sensor |
Progressive Scan CMOS |
Sensor Size |
1/2.8 " |
Effective Pixels |
1944(H) X 1224(V) (2.38 MP) |
Day / Night |
No |
Low Light Sensitivity |
Superior |
Minimum Illumination |
Color: 0.1 lux at F2.2 (50 IRE) |
Mechanical IR Cut Filter |
No |
IR LED |
No |
Horizontal Resolution (TV Lines) |
1100 TVL |
S/N Ratio |
52 dB |
Lens |
|
Focal Length |
Fixed focal, f2.55mm |
Aperture |
F2.2 |
Iris |
Fixed iris |
Focus |
Fixed focus |
Lens Mount |
RJ12 connector up to 3m from main unit |
Horizontal Viewing Angle |
110.3° |
Vertical Viewing Angle |
61.3° |
Video |
|
Compression |
H.264 (Baseline/ Main/ High profile), MJPEG |
Maximum Frame Rate vs. Resolution |
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240 |
Multi-Streaming |
Simultaneous dual streams based on two configurations |
Bit Rate |
28Kbps - 6Mbps (per stream) |
Bit Rate Mode |
Constant, Variable |
Wide Dynamic Range |
Basic WDR (75 dB) |
Digital Noise Reduction |
DNR |
Privacy Mask |
4 configurable regions |
VMS-based Analytics |
Object Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection, Heat Map, Dwell time, Direction Detection, License Plate Recognition, People Queue management, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
Audio |
|
Audio Type |
2-way, Built-in Microphone, Mic-in, Line-out |
Audio Compression |
8 kHz, 16 bit encoding, Mono, PCM, G.711 |
Network |
|
Network Protocol & Service |
IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
Ethernet Port |
1 x RJ-45 connector |
Security |
IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control |
Event |
|
Event Trigger |
Video motion detection (3 regions), External device through digital input, Sound detection |
Event Response |
Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server, Activate external device through digital output |
Integration |
|
Unified Solution |
Fully compatible with ACTi software |
GPS Position |
Manual setting |
ONVIF Compliant |
Yes, Profile S, Profile G |
GB28181 Compliant |
Yes |
Web Browser |
IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime |
Auto Firmware Upgrade |
Yes |
Interface |
|
Local Storage |
MicroSDHC, MicroSDXC memory card slot (card not included) |
Digital Input/Output |
1/1 |
General |
|
Power Source |
DC 12V, PoE Class 2 (IEEE802.3af) |
Power Consumption |
6.49 W (PoE) |
Dimensions |
Main Unit
(W x H x D): 75mm x 100.33mm x 30mm (3.0" x 4.0" x 1.2")
Lens Unit
(W x H x D): 57.2mm x 34.1mm x 56.5mm (2.3" x 1.3" x 2.2") |
Environmental Casing |
Weatherproof (IP68), (for Camera module and Lens cable), Vandal proof metal casing (IK10), Q22: Vibration proof (EN50155) |
Bundled Accessories |
Gooseneck Bracket (PMAX-1110), Desktop Mount (PMAX-0901) |
Mount Type |
Desktop Mount, Edge Clamp, Bracket, Pole Mount |
Starting Temperature |
-20°C ~ 50°C (-4°F ~ 122°F) |
Operating Temperature |
-30°C ~ 60°C (-22°F ~ 140°F) |
Approvals |
Camera: CE, FCC, IP68, NEMA 4X, (for Camera module and Lens cable), EN50155, IK10 (metal casing), UL (for optional PoE injector and power adapter) |
|
|
