Advantech - 24G + 4 10G SFP+ L3 Modular Managed Switch
by Advantech
|
|
|
|
IEC 61850-3 L3 Modular Managed Switch
- 3 x 8 Gigabit ports module slots + 4 x 10G SFP+ ports
- Dual power input options for 110/220V AC or 24-48V DC power module
- L3 functions: RIP v1/v2, OSPF, VRRP, PIM and NAT
- Fully layer 2 and TSN-enabled functions
- Features IEEE 802.1AS Time Synchronization, IEEE 802.1Qbu Frame Preemption, IEEE 802.1Qbv Time Aware Shaper and IEEE 802.1CB Seamless Redundancy
- Redundancy: X-Ring Pro (< 20ms @250units), X-Chain
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB
- -40 ~ 75˚C wide-range operating temperature
|
|
|

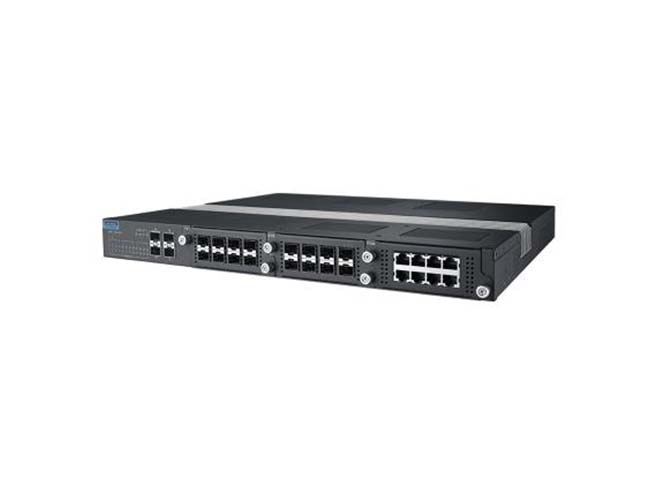

Advantech EKI-8528-4XF-A
EKI-8528 series is a standard 19" rackmount Layer 3 and 2 modular managed switch which provides up to 24 Gigabit ports and 4x10Gigabit uplink solution, it is designed for medium and large Industrial networking environment, as a distribution level L3 switch, it supports RIPv1/v2, OSPFv2/v3, VRRP routing protocols, PIM multiple routing feature and provides 4.5K routing table size for data exchange among multiple network nodes. Users can choose different Ethernet modules (RJ45 or SFP) and Power modules(24/48VDC or 110/220VAC/VDC) for bringing high flexibility to fulfil various kinds of industrial scenario, such as power substation and trackside signaling which are connecting the wide area of networking devices.
|
|
|
|
