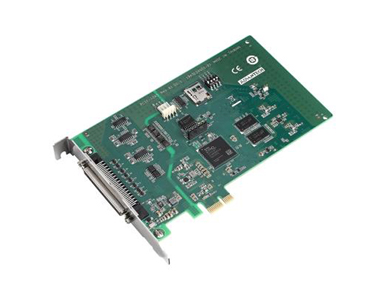

Advantech PCIE-1245-AE - Standard 4-Axis ARM-Based SoftMotion PCIE Card
by Advantech
|
|
|
|
Full 4-Axis Motion Control Universal PCI Express Card
- Encoder input: 5 MHz for CW/CCW,P/D,AB mode; Pulse output: up to 5 MHz
- Supports memory buffer (10 K points) for trajectory planning
- Supports point-to-point, line and E-Gear; Supports hardware emergency input
- Circular and helical interpolation (PCIE-1245 only)
- Position latch up to 10KHz and memory buffer 1K points (PCIE-1245 only)
- Position compare triggering up to 100 KHz, and memory buffer is up to 100 K points (PCIE-1245 only)
- 1D&2D plane position compensation (PCIE-1245 only)
- Gantry mode by semi-closed loop pulse train control (PCIE-1245 only)
- Dynamic PWM output for velocity following (PCIE-1245 only)
|
|
|
Advantech PCIE-1245-AE
PCIE-1245/1245E series are 4-axis motion control PCI Express cards which are designed for electrical machine automation and traditional machine automation wide applications. The board is equipped with SoftMotion algorithm inside to perform the motion trajectory and timing control to meet the synchronization in precise movement. The Advantech SoftMotion features synchronization control in gantry, electronic gear and dynamic PWM following; interpolation in linear, circular and helical (spiral) curve; continuous movement in buffering piecewise trajectory to realize; cutting movement in tangential following to ensure the Z-axes is tangent to X-Y curve; high-speed position compare and triggering with any 3rd party machine vision solution. PCIE-1245/1245E are applied to “MotionNavi API” architecture which is an unified user programming interface. Programmer can benefit from integrating any Advantech SoftMotion controller without changing the application code in large scale. This architecture can save the effort of application maintenance and upgrade.
|
|
|
|
