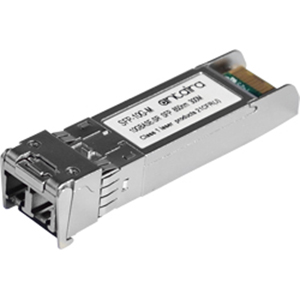

Antaira SFP-10G-M-I

850nm, 0~70C * Intel Compatible *
by ANTAIRA

10Gb/s serial optical interface compliant to 802.3ae 10GBASE-SR
Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module "SFP+"
850nm VCSEL transmitter, PIN photo-detector
2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers
Operating case temperature: 0 to 70°C
All-metal housing for superior EMI performance
Low power consumption
Advanced firmware allow customer system encryption information to be stored in transceiver
Cost effective SFP+ solution, enables higher port densities and greater bandwidth

Description
Specification
Datasheet

SFP-10G-M-I

The SFP-10G-M-I is designed to transmit and receive optical data over 50/125 um or 62.5/125 um multimode optical fiber. The transmitter converts 10Gbit/s serial PECL or CML electrical data into serial optical data compliant with the 10GBASE-SR standard.

SFP-10G-M-I: 10G SFP+ Transceiver, Multi-Mode 300M/ LC/ 850nm, 0ºC~70ºC (Intel compatible)
