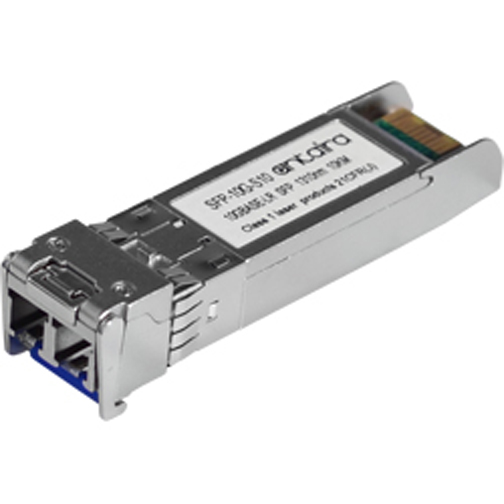

Antaira SFP-10G-S10-H3

1310nm, 0~70C
by ANTAIRA

10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LR
Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module ??SFP+??
1310nm DFB transmitter, PIN photo-detector
2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers
Operating case temperature: 0 to 70°C
All-metal housing for superior EMI performance
Low power consumption
Advanced firmware allow customer system encryption information to be stored in transceiver
Cost effective SFP+ solution, enables higher port densities and greater bandwidth

Description
Specification
Datasheet

SFP-10G-S10-H3

The SFP-10G-S10-H is designed to transmit and receive optical data over single mode optical fiber for a link length of 10km. The transmitter converts 10Gbit/s serial PECL or CML electrical data into serial optical data compliant with the 10GBASE-LR standard. (HP Procurve Series Compatible)
