Antaira LMX-1204G-SFP-T-BABA - 12-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch, w/8*10/100/1000Tx + 4*100/1000
by ANTAIRA
|
|
|
|
- Supports 8*10/100/1000Tx Fast Ethernet Ports and 4*100/1000 SFP Slots
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
- Configuration: Web Console, Telnet, CLI Command
- Supports IGMP v1/v2, up to 256 Groups
- Supports QoS (IEEE802.1p) and CoS/ToS
- Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3
- System Warning Setting for Automatic Warning through E-Mail
- Redundant Power Input Design – 12~48VDC
- Housing: Metal IP 30 Rated; DIN-Rail and Wall Mount Support
- Extended Operating Temperature: -40~75C
- 5-Year Warranty
- Build America Buy America Act Compliant
|
|
|

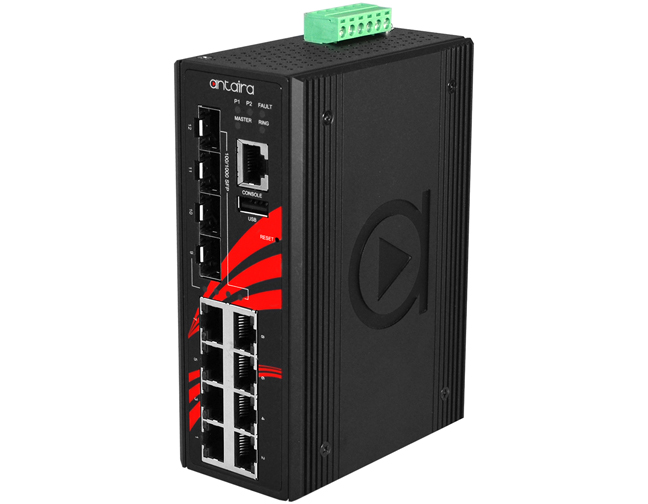

Antaira LMX-1204G-SFP-T-BABA
Antaira’s LMX-1204G-SFP-T-BABA is a 12-port industrial gigabit Light Layer 3 managed Ethernet switch that is embedded with 8*10/100/1000Tx Fast Ethernet ports and four dual rate (100/1000X) SFP slots. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software. It supports Jumbo Frame and wide bandwidth for data transmission and has sufficient port counts for any edge level connectivity solutions.
The LMX-1204G-SFP-T-BABA has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -40°C to 75°C. It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, or any other outdoor or harsh environment.
LMX-1204G-SFP-T-BABA Specifications
Hardware Specifications
| Part Number |
LMX-1204G-SFP-T-BABA |
| Total Ports |
12 |
| RJ-45 Gigabit Ethernet Ports |
8 |
| SFP Gigabit Fiber Ports |
4 |
| System Power Consumption |
15W |
| Input Voltage |
12 ~ 48VDC |
| Operating Temperature |
-40°C to 75°C
(-40°F to 167°F)
|
Physical Specifications
| Dimensions (W × H × D) |
54 × 142 × 99 mm
2.13 × 5.59 × 3.9 in
|
| Weight (Unit) |
1.13 kg
2.5 lb
|
| Weight (Shipping) |
1.36 kg
3.0 lb
|
| Mounting |
DIN-Rail, Wall-Mount |
| Housing |
Metal, IP30 |
|
|
