Antaira INJ-0201X-bt-AC-95-T - Industrial 10G PoE++ Injector - 1*10M/100M/1G/2.5G/5G/10G Base-T(X) (95W/Port) and 1*10M/100M/1G/
by ANTAIRA
|
|
|
|
- Data-in 1*10/100/1000/2.5G/5G/10G Base-Tx RJ45
- Data and PoE++ Out 1*10/100/1000/2.5G/5G/10G Base-Tx RJ45 with PoE++
- Provides up to 95W on PoE++ Port
- 85~264VAC Power Input with IEC C14 Socket, simply plug into wall outlet
- IP40 Protection
- DIN-Rail or Wall Mountable
- Operating Temperature Range: -40°C to 75°C
- 5-Year Warranty
|
|
|

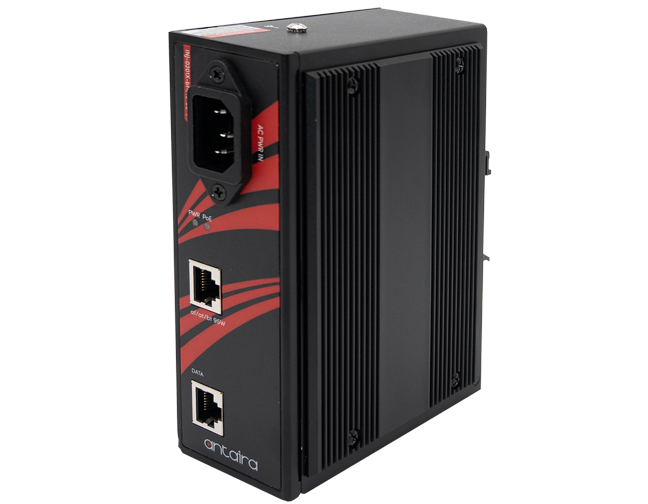

Antaira INJ-0201X-bt-AC-95-T
Antaira Technologies’ INJ-0201X-bt-AC-95-T ultra-high power hardened 10GBE Gigabit PoE injector features two 10G RJ45 copper interfaces to support high-speed data transmission. It also includes an IEC C14 power input socket, offering greater installation flexibility for your PoE deployment.
Engineered to meet the increasing demands for both power and speed, it is ideal for high-performance network devices such as Wifi radios, machine vision cameras, outdoor IP surveillance cameras, PoE PTZ speed dome cameras, and other bandwidth- and power-intensive equipment.
INJ-0201X-bt-AC-95-T Specifications
Hardware Specifications
| Part Number |
INJ-0201X-bt-AC-95-T |
| Total Ports |
2 |
| RJ45 10G Ports |
2 |
| 95W PoE++ Ports |
1 |
| PoE Budget |
95W Max |
| Power Consumption |
1W @ 56VDC |
| Power Input |
85 ~ 264VAC
120 ~ 370VDC
|
| Operating Temperature |
-40°C to 75°C
(-40°F to 167°F)
|
Physical Specifications
| Dimensions (W × H × D) |
51.5 × 155 × 120 mm
2.03 × 6.10 × 4.72 in
|
| Weight (Unit) |
0.60 kg
1.32 lb
|
| Weight (Shipping) |
0.65 kg
1.43 lb
|
| Mounting |
DIN-Rail, Wall Mount |
| Housing |
Aluminum, IP40 |
| PoE LED Indicator |
Yes |
| PoE Pin Assignment |
Pin 1 (V−), 2 (V−), 3 (V+), 6 (V+)
Pin 4 (V+), 5 (V+), 7 (V−), 8 (V−)
|
|
|
