Antaira LMP-2812G-4X8S-24 - 28-Port Industrial Managed Gigabit Ethernet PoE+ Switch, with 16*10/100/1000T (30W/Port), 4*1G/2.5G/
by ANTAIRA
|
|
|
|
- Support 16*10/100/1000BASE-T Gigabit IEEE 802af/at Compliant PoE Ports (30W/Port)
- Support 4*1G/2.5G/10G SFP+ Slots and 8*100/1000 SFP Slots
- ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) Protocol
- IEEE 802.1D STP (Spanning Tree Protocol), IEEE 802.1w RSTP (Rapid Spanning Tree Protocol), IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
- Static Routes, ARP
- SNMPv1/v2c/v3, RMON, Modbus TCP, and HTTP/HTTPS
- RADIUS, TACACS+, 802.1X Authentication
- ACL, IP Source Guard
- VLAN, QoS, and, SNMPv3
- IP30 Rugged Metal Case Design
- iPoE Budget Control
- Redundant Power Input
- Fanless Operation
- Power Reverse Polarity Protection
- High EFT and ESD Protection
- Operating Temperature: -10°C to 65°C
|
|
|

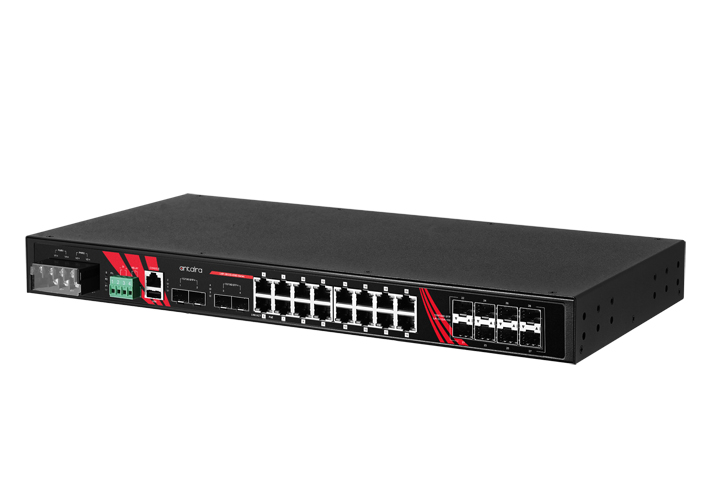

Antaira LMP-2812G-4X8S-24
Antaira Technologies’ LMP-2812G-4X8S-24 is a 28-port industrial gigabit PoE+ managed Ethernet switch features 16*10/100/1000T (30W/port), 4*1G/2.5G/10G SFP+ and 8*100/1000 SFP Ports. This makes the product ideal for applications that demand high density of port connectivity, wide bandwidth and long-distance communication. LMP-2812G-4X8S-24 is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, port lock, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMP-2812G-4X8S-24 is designed with IP40 rated 1U 19” rackmount. This model supports a dual power input having a low voltage range (12~55VDC) and a built-in voltage booster, allowing the unit to give a full 48VDC PoE power for any PoE application. Supporting the standard operating temperature model -10° to 65˚C also makes it the best solution for any harsh and extreme ambient weather environment applications, such as power/utility, transportation, water wastewater treatment plant, oil/gas, and security surveillance system industries.
Antaira LMP-2812G-4X8S-24 : 28-Port Industrial Managed Gigabit Ethernet PoE+ Switch, with 16*10/100/1000T (30W/Port), 4*1G/2.5G/10G SFP+ and 8*100/1000 SFP Port, 12-55VDC Power Input
|
|
|
|
