Antaira FNP-0500G-T - 5-Port Industrial Gigabit Unmanaged Flat-Type PoE+ Ethernet Switch, w/4*10/100/1000Tx (30W/Port) + 1*10/10 by ANTAIRA

Antaira FNP-0500G-T - 5-Port Industrial Gigabit Unmanaged Flat-Type PoE+ Ethernet Switch, w/4*10/100/1000Tx (30W/Port) + 1*10/10
by ANTAIRA

Write a review Write a review
  • Compact Industrial Grade Design
  • Support 5*10/100/1000Tx RJ45 with 4*IEEE 802.3af/at PoE+ (PSE: 30W/port)
  • Support 120W Total PoE Power with 56VDC Power Input
  • Power Reverse Polarity Protection
  • Overload Current Protection
  • 48~56VDC Dual Redundant Power Input
  • IP30 Rugged Metal Case Design
  • IP30 Rugged Metal Case Design
  • DIN-Rail or Wall Mountable
  • Operating Temperature: -40°C to 75°C
  • 5-Year Warranty
Mfg SKU # : FNP-0500G-T
Our Price : $289.00
Stock : Call for Availability
Quantity :

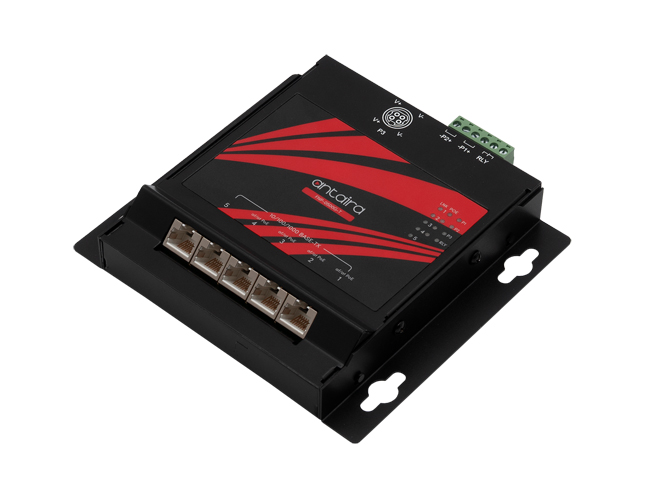

Antaira FNP-0500G-T

Antaira Technologies’ FNP-0500G-T industrial 5-port PoE switch is engineered for optimal performance in IP surveillance, traffic monitoring, and diverse industrial applications. Its distinctively flat, lightweight, and compact form factor renders it exceptionally suitable for space-constrained environments, including shallow cabinets and small enclosures. The switch is furnished with four 30W Power Sourcing Equipment (PSE) ports, capable of supplying up to 120 Watts of power to Powered Devices (PDs). It can function as an independent unit for surveillance applications in vehicular contexts, such as buses, trucks, and other transportation modalities. This product has undergone rigorous testing to ensure its suitability for demanding security, transportation, and telecommunications deployments.

FNP-0500G-T Specifications

Hardware Specifications
Part Number FNP-0500G-T
Total Ports 5
RJ45 Gigabit Ethernet Ports 5
30W PoE+ Ports 4
PoE Budget 120W @ 56VDC
100W @ 48VDC
Power Consumption 5W @ 48VDC full load, without PoE
Power Input 48 ~ 56VDC (Redundant Dual Input)
Operating Temperature -40°C to 75°C
(-40°F to 167°F)
Physical Specifications
Dimensions (W × H × D) 120.6 × 145 × 31.5 mm
4.75 × 5.71 × 1.24 in
Dimensions with Brackets (W × H × D) 158.6 × 145 × 31.5 mm
6.25 × 5.71 × 1.24 in
Weight (Unit) 0.45 kg
1.00 lb
Weight (Shipping) 0.50 kg
1.10 lb
Mounting DIN-Rail, Wall Mount
PoE LED Indicator Yes
