Antaira LNP-0500G-M12-67-T

Por
by ANTAIRA

4*10/100/1000BASE-TX Gigabit M12 (X-Coded) Port with IEEE 802.3af/at PoE+ (30W/Port)
1*10/100/1000BASE-TX Gigabit M12 (X-Coded) Port
1*M12 (A-Coded) Power Connector
Reverse Polarity Protection
Overload Current Protection
Operating Temperature: -40°C to 75°C
EN50155, EN50121 Rated
DIN-Rail or Wall Mountable
IP67 Rated
5-Year Warranty

Description
Specification
Datasheet

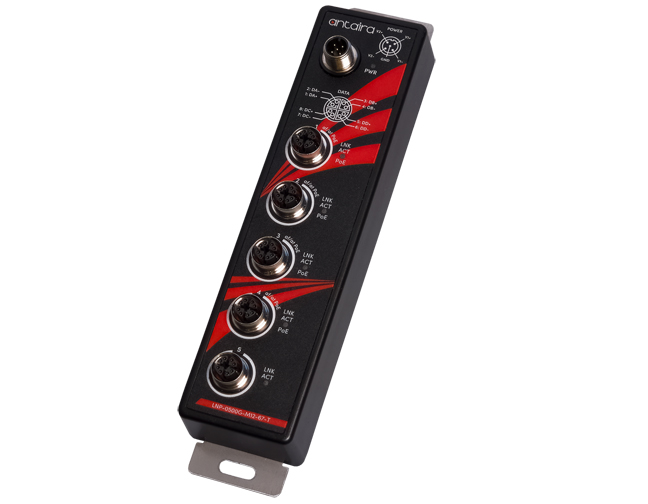

Antaira LNP-0500G-M12-67-T

Antaira Technologies’ LNP-0500G-M12-67-T is equipped with one M12 A-coded power connector, 4x 30W 10/100/1000M M12 (X-coded) TX PSE, and 1x 10/100/1000M M12 (X-coded) TX. The M12 connector provides a strong and tight connection and ensures stable Ethernet operating performance that withstands humidity, dirt, dust, shock, vibrations, heat and cold. It has been rigorously tested and can meet the high-reliability requirements for moving vehicles, transportation, and security applications.

LNP-0500G-M12-67-T Specifications

Hardware Specifications

Part Number	LNP-0500G-M12-67-T
Total Ports	5
M12 Gigabit Ethernet Ports	5 × M12 Gigabit Ethernet
PoE+ Ports	4 × 30W PoE+
PoE Power Budget	120W @ 56VDC 100W @ 48VDC
Input Voltage	48 ~ 56VDC
Power Consumption	5W @ 48VDC full load (without PoE)
Operating Temperature	-40°C to 75°C (-40°F to 167°F)

Physical Specifications

Dimensions (W × H × D)	220 × 50 × 27.7 mm 8.6 × 1.97 × 1.09 in
Weight (Unit)	0.50 kg 1.10 lb
Weight (Shipping)	0.54 kg 1.18 lb
Mounting	Wall Mount, DIN-Rail
PoE LED Indicator	Yes
