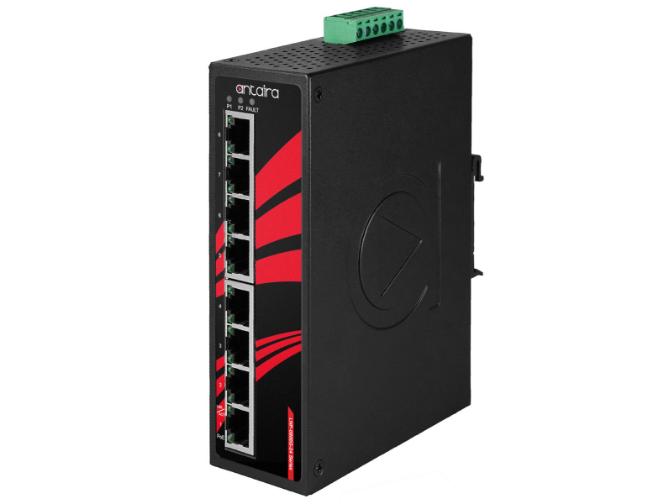

Antaira LNP-0800G-24-T-CC - 8-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch, w/8*10/100/1000Tx (30W/Port), 9~55VDC Powe
by ANTAIRA
|
|
|
|
LNP-0800G-24-T-CC_SUMMARY.html
Features
- Provides 8x10/100/1000Base-T(X) PoE (P.S.E.) Ports
- Supports P.S.E. Based on IEEE 802.3at Standard up to 30 Watts per Port
- Conformal Coated
- 9.6Kbytes Jumbo Frame Support
- Supports Dual Wide Range 9 ~ 55VDC Power Inputs for Power Redundancy
- Supports Auto-Negotiation and Auto-MDI/MDI-X
- Supports Store-and-Forward Transmission
- Supports Flow Control
- Rigid IP30 Housing Design
- DIN-Rail and Wall Mounting Enabled
|
|
|
LNP-0800G-24-T-CC_DESCRIPTION.html
LNP-0800G-24-T-CC - is an industrial gigabit unmanaged PoE+ Ethernet switch with P.S.E. function and a relay output of 24VDC at 1A with conformal coating. The LNP-0800G-24-T-CC supports Power over Ethernet, a system that transmits electrical power along with data to remote devices over standard twisted-pair cable in an Ethernet network. The LNP-0800G-24-T-CC industrial switch supports wide-range 9~55VDC power inputs and generates up to 30W P.S.E. power output per port. The LNP-0800G-24-T-CC industrial Ethernet switch has 8 X 10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. With it's wide operating temperature range from -40°C to 75°C, it can satisfy most operating environments. TheLNP-0800G-24-T-CC industrial switch is one of the most reliable choices for PoE Ethernet applications.
LNP-0800G-24-T-CC.html
| Ambient Relative Humidity |
5 to 95%, (non-condensing)
|
| Certifications |
FCC, CE, UL 61010-1, UL 61010-2-201
|
| Dimensions |
46 x 142 x 99 mm
|
| EMI |
FCC Part 15 Subpart B Class A,
CE EN55032/EN61000-6-4 Class A
|
| EMS |
CE EN55035/EN61000-6-2,
IEC61000-4-2,3,4,5,6,8
|
| Ethernet Port |
8*10/100/1000Base-TX (30W/Port)
Auto-negotiation speed, Full/Half duplex mode, and Auto MDI/MDI-X
connection
|
| Free Fall |
IEC60068-2-32
|
| Green |
RoHS Compliant
|
| Housing |
Metal, IP30 protection
|
| Input Voltage |
9~55VDC Redundant Input
|
| Jumbo Frame |
9.6Kbytes
|
| LED Indicators |
System: Power 1, Power 2, Fault
Ethernet Ports: On-Link/Flash-data transmitting
PoE:
On-connected to PD devices
|
| MAC Table Size |
8K
|
| Max PoE Power Budget |
60W@9VDC
90W@12VDC
150W@24VDC
200W@36VDC
240W@48~55VDC
|
| Memory Buffer |
4Mbits
|
| Mounting |
DIN-Rail mounting, Wall mounting
|
| Network Cable |
10BaseT: 2-pair UTP/STP Cat. 3, 4, 5 cable; EIA/TIA-568 100-ohm (100m)
100BaseTX: 2-pair UTP/STP
Cat. 5 cable; EIA/TIA-568 100-ohm (100m)
1000BaseTX: 4-pair UTP/STP Cat. 5/5E cable; EIA/TIA-568
100-ohm (100m)
|
| Operating Temperature |
-40°C to 75°C
|
| Overload Current Protection |
Present
|
| PoE Pin Out |
V+, V+, V-, V-, for pin 1, 2, 3, 6
(End-span, MDI Alternative A)
|
| Power Connection |
1 removable 6-contact terminal block
|
| Relay Contact |
24VDC, 1A resistive
|
| Reverse Polarity Protection |
Present
|
| Shock |
IEC60068-2-27
|
| Standards |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000BaseT
Gigabit Ethernet
IEEE 802.3af/at/bt Power over Ethernet
|
| Storage Temperature |
-40°C ~ 85°C
|
| Switching Architecture |
Back-Plane (Switching Fabric): 16Gbps
|
| System Power Consumption |
Max. 10W full loading
|
| Transfer Rate |
14,880pps for Ethernet
148,800pps for Fast Ethernet
1,488,000pps for Gigabit Ethernet
|
| Vibration |
IEC60068-2-6
|
| Weight |
Unit: 1.64 lbs.
Shipping: 2.05 lbs.
|
|
|
|
|
