Antaira CNP-2602G-SFP

Port) + 2 * 10
by ANTAIRA

24*10/100/1000 with IEEE 802.3af/at PoE+ (30W/Port)
Supports 380W Total PoE Power with 100~240VAC Power Input
2*100/1000 SFP Slots
Rack Mountable
Operating Temperature: 0°C to 40°C
5-Year Warranty

Description
Specification
Datasheet

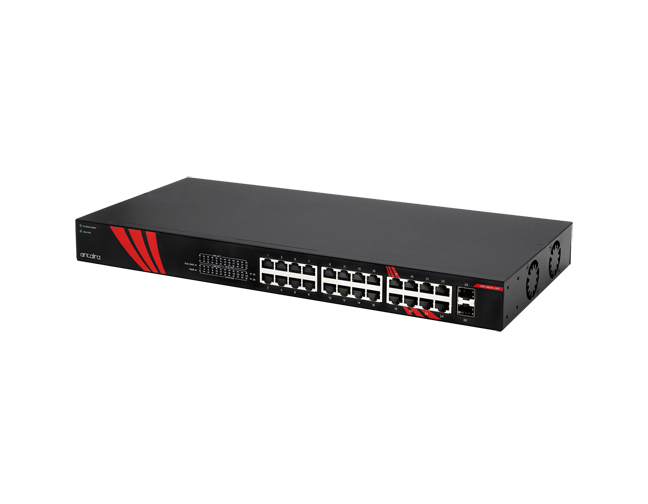

Antaira CNP-2602G-SFP

Antaira Technologies’ CNP-2602G-SFP is a commercial-grade unmanaged Gigabit PoE+ Ethernet switch designed to support high port density and flexible uplink connectivity. It offers 24*10/100/1000BASE-T RJ45 PoE+ ports compliant with IEEE 802.3af/at, delivering up to 380W of total PoE power, and includes two Gigabit SFP slots for fiber uplink integration. The CNP-2602G-SFP provides reliable, plug-and-play operation and consistent performance for SMB and enterprise networks requiring scalable Gigabit infrastructure.

CNP-2602G-SFP Specifications

Hardware Specifications

Part Number	CNP-2602G-SFP
Total Ports	26
RJ45 Gigabit Ethernet Ports	24
30W PoE+ Ports	24
SFP Ports	2
PoE Budget	380W
Power Consumption	15W
Power Input	100 ~ 240VAC (with Internal PSU)
Frequency	50 ~ 60Hz
Operating Temperature	0 to 40°C (32 to 104°F)

Physical Specifications

Dimensions (W × H × D)	441 × 44 × 190mm 17.4 × 1.7 × 7.5in
Weight (Unit)	3.79kg 8.35lb
Weight (Shipping)	3.88kg 8.55lb
Mounting	Rack Mount
PoE LED Indicator	Yes
