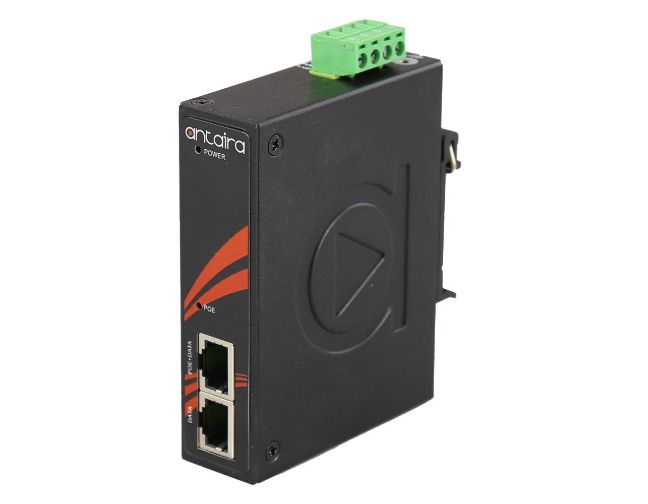

Antaira Technologies' INJ-C200G-PASS-T is an industrial Passive Power over Ethernet (PoE) injector. By utilizing multiple pairs on the RJ45 cable this industrial-grade PoE injector is capable of providing up to 50 Watts of power to tail end devices. The INJ-C200G-PASS-T is IP30 rated, DIN-rail and wall-mountable, and supports an extended operating temperature range of -40C to 75C, making it ideal for outdoor or harsh industrial applications.
| Technology |
| Category |
PoE Injector & Splitter |
| Total Ports |
2 |
| Ethernet Ports |
2 Gigabit (10/100/1000TX) |
| Power |
| PoE Power Output |
50 Watts |
| Connection |
6-Contact Terminal Block |
| Overload Protection |
Yes |
| Mechanical |
| Enclosure |
Metal, IP30 Protection |
| Mounting |
DIN-Rail & Wall Mounting |
| LED Indicators |
Power and PoE |
| Ratings |
| Operating Temperature |
-40 to 75°C |
| Storage Temperature |
-40 to 100°C |
| Humidity |
5 to 95% non-condensing |
| RoHS Compliant |
Yes |
| Certifications |
FCC, CE |
