Antaira LANOBOX-105-T - Pre-built NEMA 4X enclosure with FNP-0500G-T; Mean Well UHP-200-55 power supply; DIN-Rail terminal block by ANTAIRA

Antaira LANOBOX-105-T - Pre-built NEMA 4X enclosure with FNP-0500G-T; Mean Well UHP-200-55 power supply; DIN-Rail terminal block
by ANTAIRA

Write a review Write a review
  • Includes Unmanaged PoE Ethernet Switch, Power Supply, and Surge Suppressor
  • Supports 5*10/100/1000Tx RJ45 with 4*IEEE 802.3af/at PoE+ Compliant (up to 30W/Port)
  • Total PoE Power Budget 120W at 48~56VDC Power Input
  • Power Supply Support Up to 200W
  • Surge Protector Up to 20kA
  • IP68-Rated Cabinet
  • Wall or Pole Mount Installation
  • Operating Temperature: -30 to 75°C (-22 to 167°F)
  • 5-Year Warranty
Mfg SKU # : LANOBOX-105-T
Our Price : $970.00
Stock : Call for Availability
Quantity :

Antaira LANOBOX-105-T

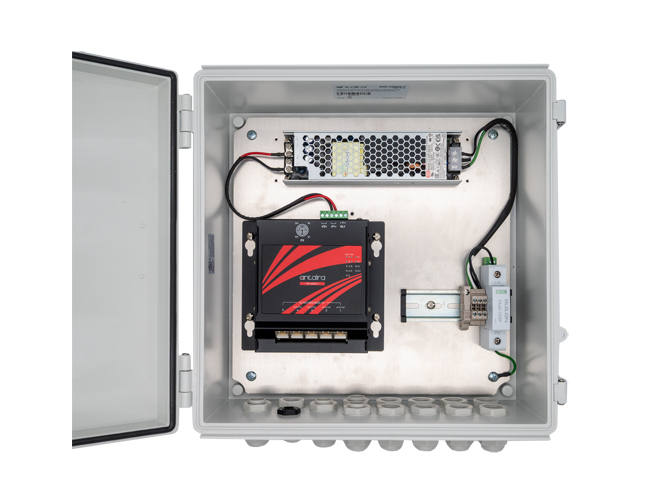

Antaira Technologies' LANOBOX-105-T offers an all-in-one, secure, and protected cabinet enclosure for outdoor industrial networking. This integrated solution combines a power supply and a surge protector, making it a reliable and cost-effective choice for safeguarding industrial PoE/Ethernet devices in harsh outdoor environments. The LANOBOX-105-T is designed for convenience, accommodating most of Antaira's PoE/Ethernet equipment and supporting diverse applications, such as surveillance and other networking needs, to ensure optimal, long-term performance.



LANOBOX-105-T Specifications

System Specifications
Input Voltage 90 ~ 150VAC, 50/60 Hz, Single-Phase
Output Voltage 55VDC (3.6A)
Surge Protection 20kA @ 8/20us
Housing Polycarbonate
IP Rating IP68
Dimensions 350 × 350 × 150mm
Weight 3.64kg / 8.02lb (Unit)
3.65kg / 8.22lb (Shipping)
Installation Wall Mount (Included)
Pole Mount (Sold Separately)
Operating Temperature -30 to 75°C (-22 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Relative Humidity 10% to 95% (non-condensing)
Warranty 5 Years
