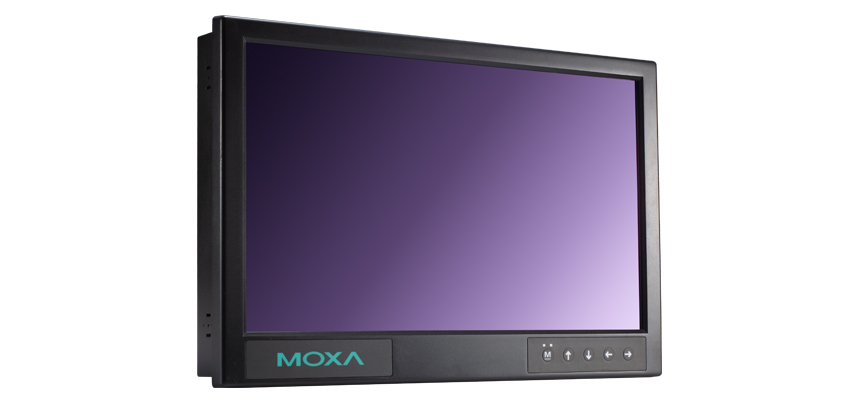

Moxa MD-124X - 24 inches marine display with 16:9 aspect ratio. Full HD (1920x1080). LED backlighting. Multi-Power supply (AC/DC
by MOXA
|
|
|
|
• 24-inch wide screen with 16:9 aspect ratio and 1920 x 1080 pixel resolution
• 300 cd/m2 backlight luminance eases eyestrain for comfortable viewing
• The PIP and PBP functions give viewing options so that crews may arrange information to meet any need
• Independent DC and AC power connectors (24 VDC, 110 to 230 VAC) allow for installation flexibility
• Rugged design with IP66 rated front panel
• Industrial-grade operating temperature: -15 to 55°C (5 to 131°F)
• Anti-vibration design compliant with IEC 60945 DNV 2.4, Class A / Class C
• Optically bonded models increase panel contrast and overall visibility under bright sunlight
• Surface capacitive touch screens give fast, sensitive response with excellent dragging performance
• Color calibration to meet the ECDIS display standard (IEC 61174) is available for all models
|
|
|
The MD-124 ECDIS display Series has been designed to fit the peculiar environmental demands of maritime industrial systems. The 24-inch panel features a 16:9 aspect ratio and a 1920 x 1080 pixel resolution, making this display ideal for any marine application requiring detailed, high-resolution imagery. In addition, with full range dimming, optical bonding (Y models only), and designed with 2D, 178° wide angle viewing, these computer display terminals satisfy a variety of international maritime standards.
| • Display |
| Panel Size |
24” viewable image size |
| Panel Type |
MVA |
| Aspect Ratio |
16:9 |
| Pixels |
1920 x 1080 |
| Pixel Pitch (RGB) |
0.282 (H) x 0.282 (V) mm |
| Response Time |
8 ms (gray to gray) |
| Contrast Ratio |
5000:1 |
| Light Intensity |
300 cd/m2 |
| Viewing Angles |
178° x 178° (right-left/up-down) |
| Active Display Area |
531.36 (H) x 298.89 (V) mm |
| Max Colors |
8-bit color / 16.7M |
| Display Interface |
VGA x 1, DVI-I x 2, BNC composite x 3 |
| Resolution |
• VGA: 640 x 480
• SVGA: 800 x 600
• XGA: 1024 x 768
• SXGA: 1280 x 1024
• WSXGA+: 1920 x 1080 (optimal setting) |
| • Serial Interface |
| Serial Standards |
1 software-selectable RS-232/422/485 port, male DB9 |
| • Serial Signals |
| RS-232 |
TxD, RxD, DTR, DSR, CTS, DCD, GND (RTS for MD-124) |
| RS-422 |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w |
Data+, Data-, GND |
| • Front Panel |
| Panel Control Buttons |
1 Power, 4 OSD control |
| LEDs |
Status, Power |
| • Physical Characteristics |
| Housing |
Aluminum sheet metal |
| Weight |
12 kg |
| Dimensions |
85 x 593 x 384 mm (3.35 x 23.45 x 15.12 in) |
| Mounting |
Console mounting |
| • Environmental Limits |
| Operating Temperature |
-15 to 55°C (5 to 131°F) |
| Storage Temperature |
-20 to 60°C (-4 to 140°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Anti-Vibration |
• IEC 60945
• DNV 2.4, Class A/Class C |
| • Power Requirements |
| Input Voltage |
• 24 VDC (with tolerance from 18 to 36 VDC, 2-pin terminal block)
• 110 to 230 VAC, 50/60 Hz |
| Power Consumption |
75 W (standard) to 90 W (full-loading)
• 6.21 A @ 18 VDC
• 4.55 A @ 24 VDC
• 2.95 A @ 36 VDC |
| • Standards and Certifications |
| Safety |
UL 60950-1, CCC (Pending) |
| EMC |
EN 55022 Class B, EN 55024-4-2, EN 55024-4-3, EN 55024-4-4, FCC Part 15 Subpart B Class A |
| Marine |
IEC 60945 4th. (Pending), DNV (Pending), IACS-E10 (Pending), IEC 61174 |
| Green Product |
RoHS, cRoHS, WEEE |
|
|
|
|
