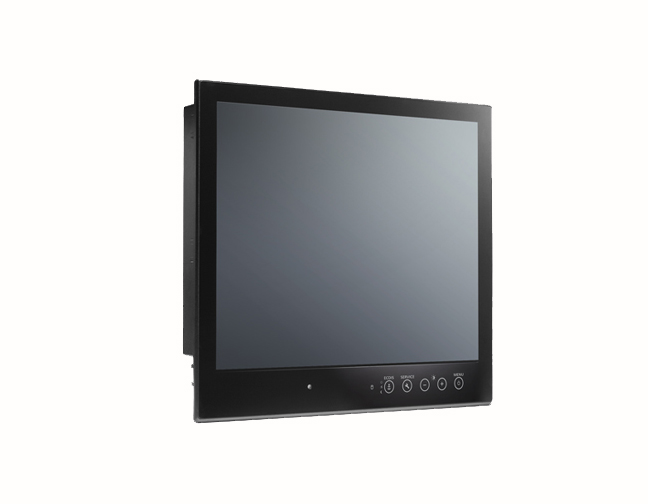

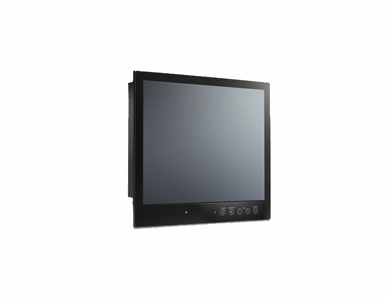

MD-219X - 19-inch, 5:4 aspect ratio display (1280x1024), LED backlight, DVI-D/VGA, RS-232 & RS-422/485 serial ports, AC/DC dual by MOXA
|
|
|
- 19-inch display
- Color calibrated for ECDIS compliant
- SavvyTouch Controls™
- Built-in selectable RS-232/422/485 interfaces
- Multi-power supplies (AC & DC)
- IP54 (front)/IP22 (rear) rated
- Optical bonded and touch panel models available on request
|
|
|
The MD-219 series of marine displays comes with full range dimming, wide viewing angles and optional optical bonding. These displays are built with a small-profile modular design that allows easier integration into industrial marine systems, reducing deployment costs and overall time-to-market.
The innovative and user-friendly Savvy touch display controls offer several unique features not found on any other marine display console: a proximity sensor for convenient adjustments in dark conditions, an info button for immediate updates on hardware status, and a quickswitch to adjust between day, dusk, and night-time ECDIS modes (for color-calibrated ECDIS models only).
The MD-219 series displays are compliant with IEC 60945, DNV, and IACS E10, verifying their resilience and durability in maritime conditions. Their IP54 rated enclosure provides additional protection against dust and moisture above and beyond the limits established by these international standards bodies.
ECDIS-approved models are also available, offering an excellent HMI solution for ECDIS charting and navigation stations.
• Display |
Panel Size |
19” viewable image size |
Panel Type |
MVA |
Aspect Ratio |
5:4 |
Pixels |
1280 x 1024 (SXGA) |
Response Time |
20 ms (gray to gray) |
Contrast Ratio |
2000:1 |
Light Intensity |
300 cd/m2 |
Viewing Angles |
178˚/178˚ |
Active Display Area |
376.32 (H) x 301.06 (V) mm |
Max Colors |
16.7M / 8-bit color |
Display Interface |
VGA input x 1, DVI-D input x 1 |
Resolution |
• VGA: 640 x 480
• SVGA: 800 x 600
• XGA: 1024 x 768
• SXGA: 1280 x 1024 |
• Serial Interface |
Serial Standards |
1 RS-232 port (DB9), 1 RS-422/485 port (terminal block) |
Optical Isolation Protection |
4 kV |
• Serial Signals |
RS-232 |
TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND |
RS-422 |
TxD+, TxD-, RxD+, RxD-, GND |
RS-485-2w |
Data+, Data-, GND |
• Front Panel |
LEDs |
MENU, brightness, INFO, ECDIS, Day/Dusk/Night |
Smart OSD |
Yes |
• Physical Characteristics |
Housing |
Aluminum sheet metal |
Weight |
7.8 kg |
Dimensions |
429 x 387 x 75 mm (16.89 x 15.24 x 2.95 in) |
Mounting |
VESA, panel, and desktop (temporary) |
• Environmental Limits |
Operating Temperature |
-15 to 55°C (5 to 131°F) |
Storage Temperature |
-20 to 60°C (-4 to 140°F) |
Ambient Relative Humidity |
5 to 95% (non-condensing) |
IP Rating |
• Front: IP54
• Rear: IP22 |
Anti-Vibration |
• 0.7 g @ DNV 2.4 (Class A), sine wave, 2-100 Hz, 1 Oct./min., 1.5 hr per axis
• 1 Grms @ DNV 2.4, random wave, 3-100 Hz, 2.5 hr per axis
• 2.1 g @ DNV 2.4 (Class C), sine wave, 2-50 Hz, 1 Oct./min., 1.5 hr per axis |
• Power Requirements |
Input Voltage |
• DC: 24 VDC (with tolerance from 18 to 30 VDC, 2-pin terminal block)
• AC: 100 to 240 VAC |
Power Consumption |
40 W (max.) |
• Standards and Certifications |
Safety |
UL 60950-1, CCC |
EMC |
EN 55022 Class B, EN 55024-4-2, EN 55024-4-3, EN 55024-4-4, FCC Part 15 Subpart B Class A |
Marine Standards |
IEC-60945 4th, IEC-61162, IEC-61174 |
Marine Type Approval |
DNV 2.4 and IACS E10, ABS |
Green Product |
RoHS, cRoHS, WEEE |
|
|
