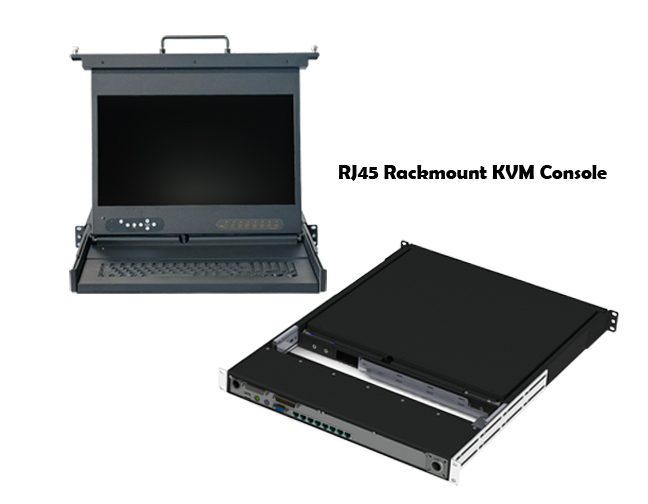

DITHD RD1U-CAT2419HB.B2U.I8.V35x.E8 - 1U, 24" rugged aluminum rackmount KVM console with clamshell design, 19" High bright 1600
by DITHD
|
|
|
|
- MIL-STD 810F/G Compliant / RUGGED Construction
- Keyboard: 103 Keys with Integrated 2 Button Glide Pad
- Displays: 19" LED Backlit LCD with Anti-Glare, Hight Bright Available
- Switches: RJ45 (8) Ports Available
- CAC Card Reader Included
- PCAP Touch Available
- MIL Grade C300 Solid Bearing Friction Slide Rails
- Thumb Screw Front Face with Collapsible Handle
- Power Usage: Less than 45W | DC 12V Power Input
- Dimensions: 19" W x 1.75" H x 24" D
- Operating Temp: -30°C to +85°C
|
|
|
DITHD RD1U-CAT2419HB.B2U.I8.V35x.E8
(RD1U) 1 rack unit tall, (CAT24) 24" rack depth rugged aluminum rackmount KVM console, clamshell design. Built to meet MIL-STD 810F/G Standard. (19HB) 19" High bright (1600 NITS) LED backlit LCD display. (B2U) 103 button keyboard with integrated 2 button glide pad. (I8) 8 port RJ45 KVM switch with required RJ45 KVM Modules. (V35x) FHD 1080x1920 max. resolution @60Hz video controller board. (E8) Locking front face (thumbscrew) with folding handle. CAC card reader for additional security.
Specifications
- RJ45 Rackmount KVM console
- Display size: 19HB (19")
- Input interface: 8 or 16 RJ-45 female
- Resolution: up to 1920 x 1200 @60Hz
- Hot keys: via keyboard
- Approvals: UL, CE, ROHS compliant
- Operating temp: 0~40ºC (32~104ºF)
- Storage temp: -20~60ºC (-4~140ºF)
|
|
|
|
