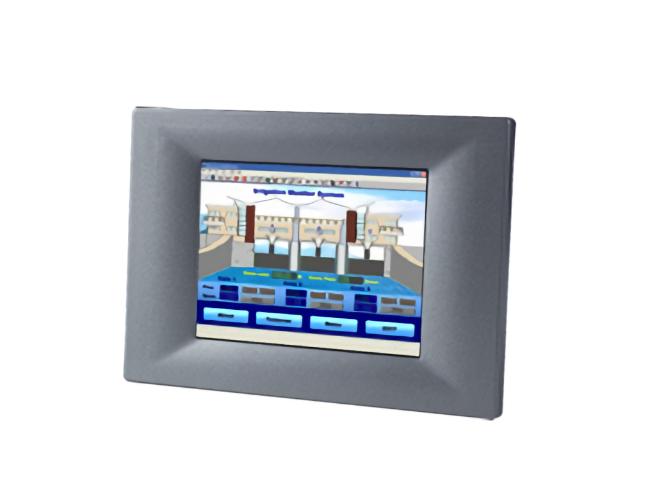

Advantech TPC-31T-E3AE - [WinCE] 3.5" QVGA TFT LED LCD TI Cortex-A8 Touch Panel Computer
by Advantech

The TPC-31T-E3AE is a compact platform without redundant functions, and has been designed for small-sized operator interface applications. It has a 3.5"/5.7" TFT LCD display which is a cost effective choice for a limited budget. Its RISC kernel, the TI Cortex-A8 processor consumes minimum power without sacrificing performance. The TPC-31T/61T has a 10/100Base-T Ethernet port offering solid communication ability and comes bundled with a Windows® CE OS that supports Thin-Client solutions. The built-in Windows CE OS platform lets the TPC-31T/61T become an Open HMI solution for system integration.

Environment
Ingress Protection	Front Panel IP65
Operating Temperature	0~50 °C (32~122 °F)
Storage Temperature	-20~60 °C (-4~140 °F)
Vibration Protection	2 Grms, random
Ethernet
Speed	10/100 Mbps
Hardware
Certification	CE, FCC class A<br>;<br>CB/UL, CE, FCC Class A, CCC, BSMI
CPU	TI® ARM® Cortex™ A8 AM3517
I/O	1 x USB 2.0
LAN	1 x 10/100 Mbps
Memory	1 x SO-DIMM with 256 MB DDR2
OS Support	Microsoft® Windows CE 6.0
Power Consumption	8 W @ 24 VDC
Power Input	18~32 VDC
Storage	512MB on board micro SD card, 1 x SD Card slot
Watchdog Timer	Programmable
I/O Interface
Serial Ports	1 x RS-232/485/Canbus
LCD Display
Backlight Life (hrs)	30,000
Display Size	3.5"
Luminance (cd/m2)	450
Max. Resolution	320 x 240
Viewing Angle (H/V°)	160/140
Mechanical
Dimension (W x H x D)	120.79 x 85.5 x 26.5 mm
Enclosure	ABS
Mounting	Panel
Weight (Net)	0.25 kg (0.55 lb)
Touchscreen
Touch Type	4-wire resistive
