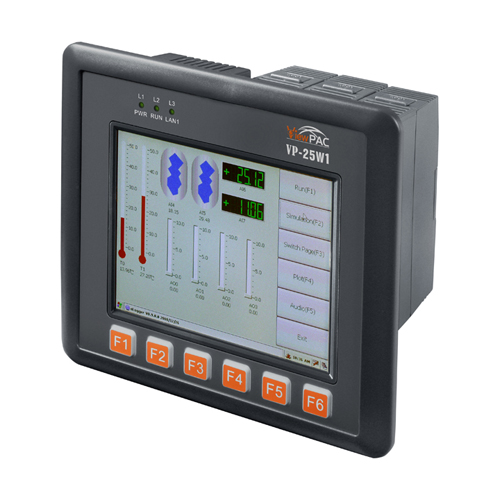

VP-25W1 - Standard ViewPAC controller with 5.7" touch screen and Windows CE.net built in by ICP DAS
|
|
|
ViewPAC Touch Screen Controller with 5.7" Display, Windows CE.NET 5.0 Operating System and 3 I/O Slots. Includes FTP Server, Ethernet Port, RS-485 port, RS-232 Port, Demo Programs and SDK. Comes with Free eLogger Control and Monitoring Software. Ingress Protection - Front panel: IP65.
|
|
|
Features
ViewPAC combines WinPAC, graphic display and keypad in one unit. It equips a PXA270 CPU (520MHz) running Windows CE.NET 5.0 operating system, variant connectivities (USB, Ethernet, RS-232/485), 3 slots to expand I/O modules, 3.5”/5.7” TFT LCD and a rubber keypad.
Its operating system, Windows CE.NET 5.0, has many advantages including hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Running Windows CE.NET 5.0 in the ViewPAC gives it the ability to run PC-based control software such as Visual Basic.NET, Visual C#, Embedded Visual C++, SCADA software, Soft PLC etc.
Compared to traditional IPC + PLC solutions, ViewPAC reduces overall system cost, space and gives you all the best features of IPC and PLC.
- Software Features:
- Windows CE.NET 5.0 Inside
- Easy Remote Maintenance Via Ethernet
- Built-in OPC Server: Quicker
- An OPC Server for SCADA Software
- Integrates Local/Remote I/O Modules Via RS-232/485 or Ethernet
- Provides Library for eVC, C# or VB.NET
- Supports Modbus and DCON Protocols
- Development Software
- Visual Studio.NET 2003/2005/2008 and eVC
- SDK/Demo Programs for C#, VB.NET & eVC
- Hardware Features:
- PXA 270 CPU (32-bit & 520 MHz)
- IP44 Compliant Front Panel
- 3.5”/5.7” TFT LCD (5.7” LCD is with Touch Panel)
- Rubber Keypad with 24/6 Keys
- Audio with MIC-In and Line-Out
- 64-bit Hardware Serial Number for Software Protection
- 3 Slots for High Profile I/O Modules
- Rich I/O Expansion Ability
- Ethernet
- RS-232/422/485
- FRnet
- CAN bus
- Dual Battery Backup SRAM (512 KB)
- One Ethernet Port
- 2 Serial Ports (RS-232, RS-485)
- Operating Temperature: -20°C ~ +70 °C
- Applications:
- Environment monitoring
- factory automation
- building management systems
- industrial machine control
Models |
VP-23W1 |
VP-25W1 |
System Software |
OS |
Windows CE.NET 5.0 |
.Net Compact Framework |
2.0 |
Embedded Service |
FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
SDK Provided |
Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008 |
CPU Module |
CPU |
PXA270 or compatible (32-bit and 520 MHz) |
SRAM |
128 MB |
Dual Battery Backup SRAM |
512 KB (for 5 years data retain) |
Flash |
96 MB (64 MB for OS image, 31 MB for built-in Flash disk, 1 MB for registry) |
EEPROM |
16 KB |
Data Retention: 40 years; 1,000,000 erase/write cycles |
Expansion Flash Memory |
microSD socket with one 1 GB microSD card (support up to 16 GB microSDHC card) |
RTC (Real Time Clock) |
Provide seconds, minutes, hours, day of week/month, month and year, valid from 1980 to 2079 |
64-bit Hardware Serial Number |
Yes |
Dual Watchdog Timer |
Yes |
Rotary Switch |
Yes (0 ~ 9) |
Communication Interface |
Ethernet |
RJ-45 x 1, 10/100 Base-TX
(Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
USB 1.1 (host) |
1 |
COM0 |
Internal communication with I-87K modules in slots |
COM2 |
RS-485 (D2+, D2-); self-tuner ASIC inside; 2500VDC Isolated. 2500 VDC |
COM3 |
RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolated |
MMI (Man Machine Interface) |
LCD |
3.5” TFT (Resolution 320 x 240) |
5.7” TFT (Resolution 640 x 480) |
Touch Panel |
- |
Yes |
Rubber Keypad |
24 Keys |
6 Keys |
Audio |
Microphone-In and Earphone-Out |
LED Indicators |
3 Dual-Color LEDs (PWR, RUN, LAN1, L1, L2, L3; L1~L3 For User Programmable) |
I/O expansion slots |
Slot Number |
3 (For High Profile I-8K and I-87K Modules Only) |
Hot Swap * Will be available |
For High Profile I-87K Modules Only |
Mechanical |
Dimensions (W x L x H) |
182 mm x 158 mm x 125 mm |
Ingress Protection |
Front panel: IP65 |
Environmental |
Operating Temperature |
-20 ~ +70°C |
Storage Temperature |
-30 ~ +80°C |
Ambient Relative Humidity |
5 ~ 90% RH, non-condensing |
Power |
Input Range |
+10V ~ +30VDC |
Isolation |
1KV |
Capacity |
2.5A, 5V supply to I/O expansion slots |
Consumption |
7.2 W (0.3 A @ 24 VDC) |
|
|
