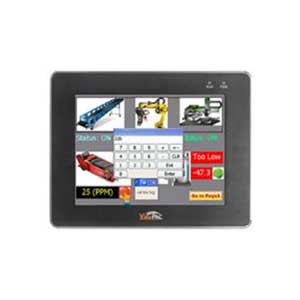

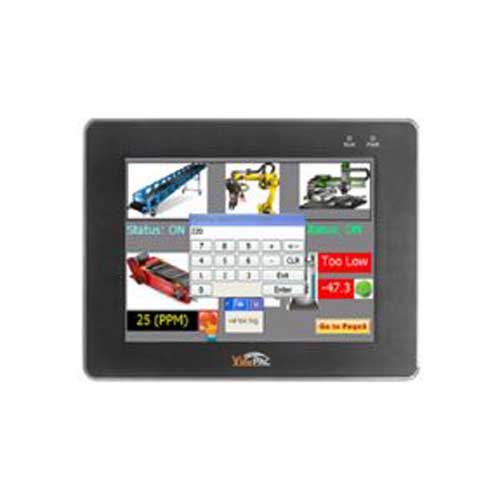

VP-4137 - Indusoft and ISaGRAF ViewPAC with 10.4" Touch LCD by ICP DAS
|
|
|
ISaGRAF based ViewPAC with 10.4” Touch LCD, Windows CE.NET 5.0 Operating System and 3 I/O slots, communicable over Ethernet, RS-485 and RS-232, Modbus TCP, Modbus RTU, supports operating temperatures from -20 ~ +70°C. Ingress Protection - Front panel: IP65.
|
|
|
VP-4137 is part of the new generation ISaGRAF based PACs. ViewPAC integrates WinPAC, a color graphic display with keypad or touch function, into one unit. It is equipped with a PXA270 CPU (520 MHz), various connectivity (USB, Ethernet, RS-232/485), 3 I/O slots, 3.5” TFT LCD and a rubber keypad or 5.7”/10.4” TFT Touch LCD. The benefits of running Windows CE 5.0 on ViewPAC include hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, and achievable deterministic control. ViewPAC is also capable of running ISaGRAF and PC-based control software such as Visual Basic .NET, Visual C#, …. etc.
ISaGRAF is the most powerful SoftLogic package on the market. ISaGRAF is a PLC-like software and it supports IEC 61131-3 standard PLC programming languages (LD, FBD, SFC, ST, IL, FC), and can run the application generated by the workbench on any ISaGRAF PACs. The ISaGRAF workbench Ver. 3.x features
- IEC 61131-3 Standard Open PLC Programming Languages (LD, FBD, SFC, ST, IL, FC) + Flow Chart (FC)
- Auto-Scan I/O
- On-Line Debug/Control/Monitor, Off-Line Simulation
- Simple Graphic HMI
- Support Soft-GRAF HMI
System Software |
OS |
Windows CE 5.0 |
.Net Compact Framework |
3.5 |
Embedded Service |
FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
SDK Provided |
Dll for eVC, Dll for Visual Studio.Net 2005/2008 |
Multilanguage Support |
English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
Development Software |
ISaGRAF Software |
IEC 61131-3 standard |
Languages |
LD, ST, FBD, SFC, IL & FC; Support Soft-GRAF HMI: XP-8xx7-CE6/8xx7-Atom-CE6, WP-8xx7/5xx7 and VP-2xW7/4xx7 PAC |
Max. Code Size |
1 MB |
Scan Time |
3 ~ 15 ms for normal program 15 ~ 50 ms (or more)for complex or large program |
Non-ISaGRAF |
Options: MS eVC++ 4.0 or VS .NET 2005/2008 (VB.NET, C# .NET) |
Web Service |
Web HMI |
PC running Internet Explorer can monitor/control PAC via Internet/modem |
Security |
Support three-level username and password protection. (high/middle/low) |
CPU Module |
CPU |
PXA270, 520 MHz |
SDRAM |
128 MB |
Flash |
128 MB |
Expansion Flash Memory |
microSD socket with one microSD card (support up to 32 GB) |
Dual Battery Backup SRAM |
512 KB; data valid up to 5 years (for retain variables) |
EEPROM |
16 KB |
RTC (Real Time Clock) |
Provide second, minute, hour, date, day of week, month, year |
64-bit Hardware Serial Number |
Yes, for Software Copy Protection |
Dual Watchdog Timers |
Yes (0.8 second) |
Rotary Switch |
Yes (0 ~ 9) |
Communication Interface |
Ethernet |
RJ-45 x 2 |
10/100 Base-TX (Auto-negotiating, LED indicators) |
USB 1.1 (host) |
2 |
USB 1.1 (client) |
1 |
COM 0 |
Internal communication with the high profile I-87K series modules in slots |
COM 1 |
- |
COM 2 |
RS-485 (Data+, Data-) with internal self-tuner ASIC; 2500 VDC isolated |
COM 3 |
RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolated |
MMI (Man Machine Interface) |
LCD |
5.7” TFT (Resolution 640 x 480) |
Touch Panel |
Yes |
Rubber Keypad |
6 Keys |
Audio |
Earphone-Out |
LED Indicators |
2 LEDs (PWR, RUN) |
I/O Expansion Slots |
Slot Number |
3 |
Note: For High Profile I-8K and I-87K Modules Only |
Mechanical |
Dimensions (W x L x H) |
293 mm x 231 mm x 129 mm |
Installation |
Panel Mounting |
Ingress Protection |
Front panel: IP65 |
Environmental |
Operating Temperature |
-20 ~ +70°C |
Storage Temperature |
-30 ~ +80°C |
Ambient Relative Humidity |
10 ~ 90% RH (non-condensing) |
Power |
Input Range |
+10 ~ +30 VDC |
Isolation |
1 kV |
Capacity |
12.5 W |
Consumption |
8.5 W |
Protocols |
NET ID |
1 ~ 255, user-assigned by software |
Modbus TCP/IP Master |
Link to max. 100 devices that support Standard Modbus TCP/IP Slave protocol (FAQ-113) |
Modbus RTU/ASCII Master |
Max. 10 ports: COM2, 3 and COM5 ~ 14. (To connect to other Modbus Slave devices). Support Multi-port. (*) |
Modbus RTU Slave |
Max. 5 Ports: one of COM2/3, COM5 ~ 8. (For connecting ISaGRAF, PC/ HMI/ OPC Server & HMI panels.) (*) |
Modbus TCP/IP Slave |
Yes, LAN1 and optional 2nd Ethernet Port in I-8135W support total up to 32 connections (for connecting ISaGRAF & PC / HMI). When one Ethernet port is broken, the other one can still connect to PC/HMI. |
Web HMI Protocol |
Ethernet Ports for connecting PC running Internet Explorer |
User-Defined Protocol |
User can write his own protocol applied at COM2, 3 and COM5 ~ COM14 by Serial communication function blocks (*). |
I-7000 & I-87K RS-485 Remote I/ O |
One of COM2 or COM3 supports I-7000 I/O modules, I-87K base + I-87K Serial I/O boards and RU-87Pn + I-87K High Profile I/O boards as Remote I/O. Max. 255 modules for one controller. |
M-7000 Series Modbus I/O |
Max. 10 RS-485 ports: COM2, 3, 5 ~ 14. Each port can connect up to 32 M-7000 Modules. (with optional I-7510 repeater connected can connect up to more than 32 M-7000 Modules) (*) |
Modbus TCP/IP I/O |
Supports ICP DAS Ethernet I/O : I-8KE4-MTCP and I-8KE8-MTCP (FAQ-042). If LAN1 is broken, it will switch to the 2nd Ethernet port (in optional I-8135W card) automatically to continuously work. (This need LAN1 & the 2nd Ethernet's IP are set in the same IP domain) |
FRnet I/O |
Support max 3 pcs. I-8172W boards in slot 0 ~ 2 to connect to FRnet I/O modules, like FR-2053, FR-2057, FR-32R, FR-32P (FAQ-082, 154). Each I-8172W board can connect up to 256 DI plus 256 DO channels. |
Send Email |
Support functions to send Email with one attached file via Ethernet port. |
Ebus |
To exchange data between ISaGRAF Ethernet PAC via Ethernet port. (LAN1 Port only) |
SMS: Short Message Service |
COM3 or COM5 can link to a GSM Modem to support SMS. User can request data/control the controller by cellular phone. (*) The controller can also send data & alarms to user’s cellular phone. Optional GSM Modems: GTM-201-RS232 (850/900/1800/1900 GSM/GPRS External Modem) |
MMICON/LCD |
COM3 or COM5 supports ICP DAS's MMICON. (*) The MMICON is featured with a 240 x 64 dot LCD & a 4 x 4 Keyboard to display picture, string, integer, fl oat, & input a char, string, integer & fl oat. |
UDP Server & UDP Client : Exchange Message & Auto-Report |
LAN1 or the 2nd Ethernet (in optional I-8135W card) support UDP Server and UDP Client protocol to send/receive message to/from PC/HMI or other devices. Ex: to automatically report data to InduSoft’s RXTX driver. |
TCP Client : Exchange Message & Auto-Report |
LAN1 or the 2nd Ethernet (in optional I-8135W card) ca send/receive message to/from PC/HMI or other devices which support TCP server protocol. Ex: automatically report data to InduSoft’s RXTX driver, or to connect a location camera. |
GPRS/SMS |
Support the I-8212W (2G/3G) card to receive/send a short message or to dial up to link the Internet by GPRS connection to send an email or communicate with remote stations by using "FTP Client" (FAQ-151) and "TCP Client" / "UDP Server" / "UDP Client" (FAQ-143). |
SQL Client |
Support SQL Client function to write data to (or read data from) Microsoft SQL Server (2000 SP3, 2005, 2008). |
Hot-Swap and Redundant System |
Must enable the 2nd Ethernet port in the optional I-8135W card. This redundant system has setup two “Active IP” address point to the active VP-2xW7/2xW6 's LAN1 and 2nd Ethernet ports always. One or two or more PC / HMI / SCADA can communicate with this redundant system via one of the two given active IP. So the PC / HMI / SCADA can access to the system easily without any notice about which VP-2xW7/2xW6 is currently active. Moreover, the new redundant system can integrate with the RU-87P4 and RU-87P8 expansion unit plus the I-87K high-profi le I/O cards to support the hot-swap application. If the I/O card is damaged, the maintenance person just takes one good-card with same model number to hot-swap the damaged one without stopping this redundant system. (FAQ-093) |
CAN/CANopen |
COM3 or COM5 ~ COM14 can connect one I-7530 (Converter: RS-232 to CAN) to support CAN/CANopen devices and sensors. One PAC supports max.10 RS-232 ports to connect max.10 I-7530. (*) |
CANopen Master |
Support the I-8123W CANopen Master card to connect other CANopen slave devices. (FAQ-145) |
HART Solutions |
Support I-87H17W modules in slot 0 to 2 to communicate with other HART devices. |
FTP Client |
Support FTP client to upload files in the PAC to a remote FTP server on PC. (FAQ-151) Soft-GRAF’s g_Alarm & g_Logger1 HMI objects support FTP client, too. (FAQ-146) |
Soft-GRAF HMI |
Support the Soft-GRAF HMI . User can use the Soft-GRAF Studio on the PC to design the HMI screen and then download it to the PAC to display the HMI on the PAC. (FAQ-146) |
Optional I/O Functions (Refer to ISaGRAF PAC I/O Selection Guide for I/O Module list) |
PWM Output |
High Speed PWM Module |
I-7088, I-8088W, I-87088W: 8-ch. PWM outputs, software support 1 Hz~100 kHz (non-continuous), duty: 0.1~99.9% |
DO Module as PWM |
8-ch. max. 250 Hz max. For Off=2 & On=2 ms. Output square curve: Off: 2 ~ 32766 ms, On: 2 ~ 32766 ms. Optional DO Boards: I-8037W, 8041W, 8041AW, 8042W, 8050W, 8054W, 8055W, 8056W, 8057W, 8060W, 8063W, 8064W, 8068W, 8069W. (Relay Output boards cannot generate fast square wave) |
Counter, Encoder, Frequency |
Parallel DI Counter |
8-ch. max. For 1 controller. Counter val: 32-bit. 250 Hz max. Min. ON & OFF width must > 2 ms. Optional DI boards: I-8040W, 8040PW, 8042W, 8046W, 8048W, 8050W, 8051W, 8052W, 8053W, 8053PW, 8054W, 8055W, 8058W, 8063W. |
Serial DI Counter |
Counter input: 100 Hz max. Counter value: 0 ~ 65535 (16-bit) Optional serial I-87K DI boards: I-87040W, 87046W, 87051W, 87052W, 87053W, 87053W-A5, 87054W, 87055W, 87058W, 87059W, 87063W. |
Remote DI Counter |
All remote I-7K/I-87K DI modules support counters. 100 Hz max. Value: 0 ~ 65535 |
High Speed Counter |
I-87082W: 100 kHz max., 32-bit; I-8084W: 250 kHz max., 32-bit |
Encoder |
I-8093W: 3-axis Encoder Module, max. 1M Hz for quadrant input mode, max. 4 MHz for pulse/direction and cw/ccw input mode. (FAQ-112) I-8084W: 250 kHz max., 4-ch encoder, pulse/direction or up/down or A/B phase (Quad. mode), Not support Encoder Z-index. (FAQ-100) |
Frequency |
I-87082W: 2-ch, 1 Hz ~ 100 kHz; I-87088W: 8-ch, 0.1 Hz ~ 500 kHz; I-8084W: 8-ch, 1 Hz ~ 250 kHz; |
Motion |
Motion Control |
one I-8091W (2-axis) or two I-8091W (4-axis) can do motion control. only one I-8091W can do X-Y dependent motion. |
Port |
Second Ethernet |
VP-2xW7/2xW6/4137 can add one optional I-8135W card in its slot 0 ~ 2 to expand the second Ethernet port. |
|
|
