Moxa MPC-3101-E4-LB-CT-T - 10.4-inch panel pc with Intel Atom Elkhart Lake qual-core x6425E, 8 GB DDR4, 500-nits LCD with multi-
by MOXA

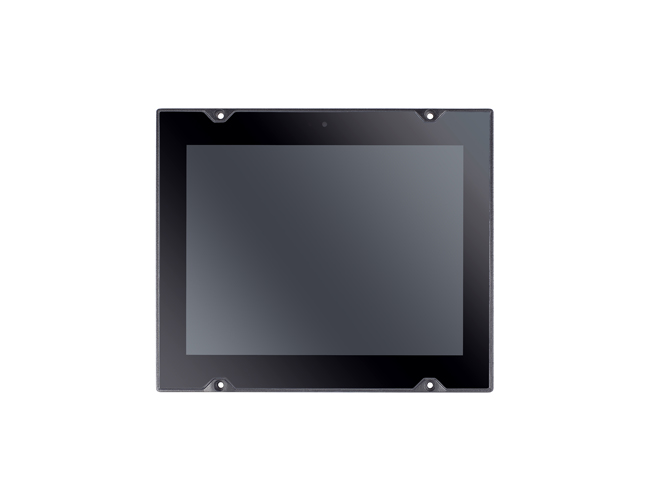

Moxa MPC-3101-E4-LB-CT-T

The MPC-3101 10-inch panel PCs with Intel Atom® x6425E quad-core processor deliver a reliable, durable, and versatile platform for use in industrial environments. All interfaces come with IP66-rated M12 connectors to provide anti-vibration and waterproof connections. With two software selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports, the MPC-3101 Panel PCs support a wide variety of serial interfaces as well as high-speed IT communications, all with native network redundancy. The MPC-3101 panel PCs are designed for the -40 to 70°C temperature range, and come with a fanless, streamlined enclosure for highly efficient heat dissipation. This makes the computers a reliable industrial platform for harsh, hot, outdoor environments like oil and gas fields, or drilling platforms. The MPC-3101 also features a 500-nit or 1000-nit LCD panel offering a sunlight-readable, projected-capacitive, glove-friendly, multitouch screen, providing an excellent user experience.

Specifications

• CPU: Intel Atom x6425E processor (Quad core, 1.5M cache, 2 GHz)
• Graphics controller: Intel UHD Graphics
• System Memory Pre-Installed: 8 GB DDR4 2400 MHz (32 GB max)
• System Memory Slot: SODIMM DDR4 2400 slots x 1, up to 32 GB max.
• Ethernet ports: auto-sensing 10/100/1000 Mbps ports (M12 push-pull X-coded x 2)
• Serial ports: RS-232/422/485 ports (M12 push-pull A-coded 12P) x 1
• Digital Input: DIs x 4 (M12 push-pull A-coded connector)
• Digital Output: DOs x 2 (M12 push-pull A-coded connector)
• Audio Input/Output: 1 x Speaker out/Line out (M12 push-pull A-coded 8-pin)
• Panel Size: 10 inch
• Aspect Ratio: 4:3
• Panel Type: AAS
• Pixels: 1024 x 768
• Touch Type: Projective Capacitive Touchscreen (PCAP)
• Touch support points: 4 points
• Glove support: yes
• Operating Temperature: -40~70ºC
