EXPC-1519-C1-S1-T - Fanless, Zone 2 19-inch 1000 nits LCD panel

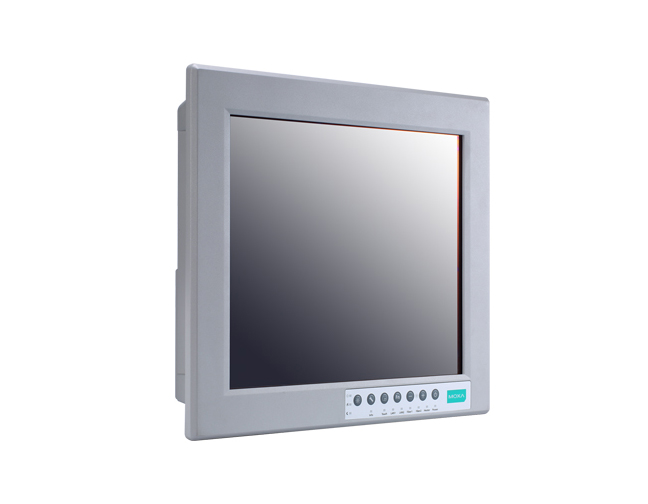

Moxa EXPC-1519-C1-S1-T - Fanless, Zone 2 19-inch 1000 nits LCD panel computer, Intel Celeron Processor 1047UE 1.4GHz
by MOXA

Anti-scratch, 19-inch sunlight viewable, 1000-nit LCD panel
High performance Intel® processor, Core™ i7-3555LE or Celeron 1047UE CPU
Fanless design with highly efficient heat dissipation in 70°C environment
Booting up within 3 minutes without heater in -40°C
Multi-touch with glove-friendly touch screen interface
Cable gland and standard USB Type-A/RJ45 connector design
4 LAN ports with independent MACs; 2 RJ45 and 2 fiber ST
Totally sealed IP66 / NEMA 4X enclosure
Class 1 Division 2, ATEX Zone 2, and IECEx certified
Dual AC/DC power supply
Optional WLAN and TPM module by request

Description
Specification
Datasheet

The EXPC-1519 panel computers are designed for Zone 2 applications in hazardous environments, both indoors and outdoors. The EXPC- 1519 series features Intel® 3rd generation Core™ i7-3555LE 2.5 GHz or Celeron 1047UE 1.4 GHz processor, with up to 16 GB of memory to deliver high performance processing.
The EXPC-1519 series offers flexible interface connectivity options to meet your application needs: standard connectors with cable glands, terminal block with cable glands, and standard connectors on the bottom panel. The EXPC-1519 computers are designed with wide temperature range (-40 to 70°C) and come with a patented, fanless, streamlined enclosure designed for highly efficient heat dissipation, making this one of the most reliable industrial platforms available for harsh, hot outdoor environments like oil and gas fields, or drilling platforms.
In addition, the EXPC-1519 computers feature touchscreen controls with anti-reflection treatment and 1000-nit LED backlight, making them easy to read even during the peak daylight hours.

• Computer
CPU	Intel® Core™ i7-3555LE 2.5 GHz or Intel® Celeron® 1047UE 1.4 GHz processor
OS	Windows Embedded Standard 7 32/64-bit, Windows 7 Professional 32/64-bit
System Chipset	Intel® QM77 Express Chipset (Intel® BD82QM77 PCH)
System Memory	2 SO-DIMM slot, DDR3/DDR3L support, 4 GB pre-installed, maximum 16 GB capacity
Expansion Bus	1 mini PCIe socket
BIOS	64 Mbit SPI Flash
Graphics Controller	Intel® HD Graphics 4000
Touchscreen	Projected capacitive touch, 7H surface hardness, anti-reflection treatment, glove-friendly
• Storage
HDD Support	2.5-inch SATA, 7 or 9.5 mm in height, access externally
CFast	Push-push type, access externally
• Display
Panel Size	19-inch SXGA, 1000-nit LED backlit LCD
Aspect Ratio	5:4
Response Time	5 ms
Contrast Ratio	1000:1
Viewing Angles	• Horizontal: 170° (left to right) • Vertical: 160° (up to down)
Resolution	• VGA: 640 x 480 • SVGA: 800 x 600 • XGA: 1024 x 768 • SXGA: 1280 x 1024
• Serial Communication Parameters
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS, XON/XOFF
Baudrate	50 bps to 115.2 Kbps
• Serial Signals
RS-232	TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND
RS-422	TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w	TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w	Data+, Data-, GND
• Interface (EXPC-1519-C1-S1/EXPC-1519-C7-S1)
Connector type	On motherboard via cable glands
USB	USB 2.0 hosts x 3, type-A connectors
VGA	15-pin D-Sub connector (DB15 female), with resolution up to 2048 x 1536 pixels with 32-bit color at 75 Hz
Serial Port	RS-232/422/485 ports (DB9 male) x 2, software-selectable
Ethernet	Auto-sensing 10/100/1000 Mbps ports (RJ45) x 2
Optical Fiber	Multimode 100M fiber optic ports x 2
AC	100 to 240 VAC (3-pin terminal block)
DC	24 VDC (2-pin terminal block)
• Interface (EXPC-1519-C1-S2/EXPC-1519-C7-S2)
Connector Type	On terminal block via cable glands
USB	USB 2.0 hosts x 4, terminal block
Serial Port	RS-232/422/485 ports (terminal block) x 2, software-selectable
Ethernet	Auto-sensing 10/100/1000 Mbps ports (terminal block) x 2
Optical Fiber	Multimode 100M fiber optic ports x 2
AC	100 to 240 VAC (3-pin terminal block)
DC	24 VDC (2-pin terminal block)
• Interface (EXPC-1519-C1-S3/EXPC-1519-C7-S3)
Connector Type	On bottom panel
USB	USB 2.0 hosts x 1, type-A connector
Ethernet	Auto-sensing 10/100/1000 Mbps port (RJ45) x 1
AC	100 to 240 VAC (3-pin terminal block)
DC	24 VDC (2-pin terminal block)
• LEDs and Buttons
System LEDs	Power, Fiber1, Fiber2, LAN1, LAN2, Touch, Info, DAY, Dusk, Night
LAN LEDs	100M/Link, 1000M/Link (on each RJ45 connector)
Buttons	Power, Brightness +/-, Fn, Touch, Info, Brightness mode
• Physical Characteristics
Housing	Aluminum
Weight	10.7 kg (23.78 lb)
Dimensions	483 x 408 x 99.5 mm (19.02 x 16.06 x 3.92 in)
Mounting	VESA (100 x 100 mm), desktop, yoke, wall, panel
• Environmental Limits
Operating Temperature	-40 to 70°C (-40 to 158°F)
Storage Temperature	-40 to 70°C (-40 to 158°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Anti-vibration	2 Grms, 5-500 Hz frequency, compliant with IEC 60068-2-6 standard
Anti-shock	20 Grms, half sine wave under system operating, 11 ms duration, compliant with IEC 60068-2-27 standard
• Power Requirements
Input Voltage	100 to 240 VAC or 24 VDC (18 to 32 VDC, 2-pin terminal block)
Power Consumption	100 to 240 VAC, 47 to 63 Hz, 1 A (less than 100 W) or 24 VDC, 6 A (less than 150 W)
• Standards and Certifications
Safety	UL 60950-1, IEC 60950-1
Hazardous Environments	Class 1 Division 2, ATEX Zone 2, IECEx
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: AC Power: 2 kV; Signal: 1 kV; DC Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8, IEC 61000-4-11
Ingress Protection Rating	IP66 / NEMA 4X
Green Product	RoHS, cRoHS, WEEE
