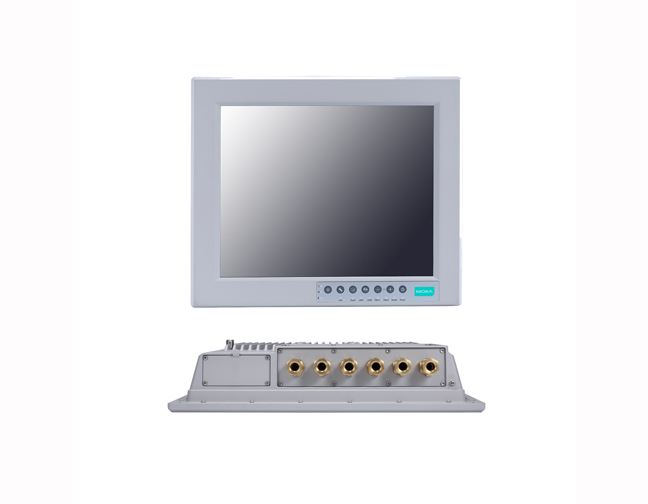

EXPC-1519-C7-S3-T of The EXPC-1519 panel computers are designed for indoor and outdoor Zone 2 applications in hazardous environments. The EXPC-1519 Series features a third-generation Intel® Core™ i7-3555LE 2.5 GHz or Celeron 1047UE 1.4 GHz processor, with up to 16 GB of memory to deliver high-performance processing.
The EXPC-1519 Series offers flexible interface connectivity options to meet your application needs: standard connectors with cable glands, terminal block with cable glands, and standard connectors on the bottom panel.
The EXPC-1519 computers support wide-temperature (-40 to 70°C) operation, and come with a patented, fanless, streamlined enclosure designed for highly efficient heat dissipation, making this one of the most reliable industrial platforms available for harsh, hot outdoor environments like oil and gas fields and drilling platforms.
In addition, the EXPC-1519 computers feature touchscreen controls with anti-reflection treatment and 1000-nit LED backlight, making them easy to read even during peak daylight hours.
CPU
EXPC-1519-C1-x-T: Intel® Celeron® Processor 1047UE (2M Cache, 1.40 GHz)
EXPC-1519-C7-x-T: Intel® Core™ i7-3555LE Processor (4M Cache, up to 3.20 GHz)
System Memory Pre-installed
4 GB DDR3/DDR3L
System Memory Slot
SODIMM DDR3/DDR3L slot x 2
Pre-installed OS
OS is not pre-installed
Supported OS
Windows 7 Pro for Embedded Systems
Windows Embedded Standard 7 (WS7P) 64-bit
Windows 10 Pro 64-bit
Windows 10 Embedded IOT Ent 2016 LTSB High End EPKEA
Windows 10 Embedded IOT Ent 2016 LTSB Value EPKEA
Storage Slot
2.5-inch SSD slot x 1
CFast slot x 1
Ethernet Ports
EXPC-1519-C1-S1-T/C1-S2-T/C7-S1-T/C7-S2-T: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
EXPC-1519-C1-S3-T/C7-S3-T: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 1
Serial Ports
EXPC-1519-C1-S1-T/C1-S2-T/C7-S1-T/C7-S2-T: RS-232/422/485 ports x 2, software-selectable (terminal block)
USB 2.0
EXPC-1519-C1-S1-T/C7-S1-T: USB 2.0 hosts x 3, type-A connectors
EXPC-1519-C1-S2-T/C7-S2-T: USB 2.0 hosts x 4, type-A connectors
EXPC-1519-C1-S3-T/C7-S3-T: USB 2.0 hosts x 1, type-A connectors
Video Output
EXPC-1519-C1-S1-T/C7-S1-T: VGA x 1, 15-pin D-sub connector (female)
System
Power x 1
Active Display Area
376.32 (H) x 301.06 (V) mm
Aspect Ratio
5:4
Contrast Ratio
1000:1
Light Intensity (Brightness)
1000 cd/m2
Max. No. of Colors
16.7M (8-bit/color)
Panel Size
19-inch viewable image
Panel Type
TN
Pixel Pitch (RGB)
0.294 (H) x 0.294 (V) mm
Pixels
1280 x 1024
Response Time
5 ms (gray to gray)
Viewing Angles
170°/160°
Touch Type
Capacitive Touch (PCAP)
Touch Support Points
4 points
Glove Support
Yes
Baudrate
50 bps to 115.2 kbps
Data Bits
5, 6, 7, 8
Flow Control
RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
