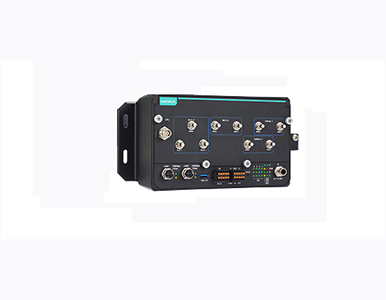

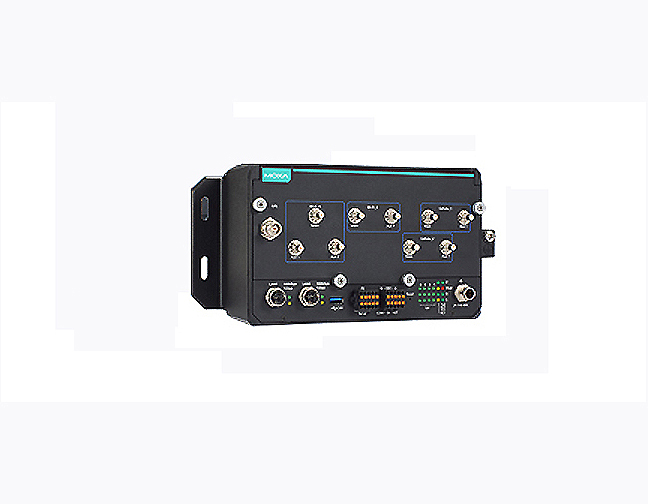

| Hardware Specifications |
| • Computer |
| CPU |
ARMv7 Cortex-A7 dual-core 1 GHz processor |
| OS (pre-installed) |
Debian 8 (Linux Kernel v4.1) |
| USB |
USB 2.0/3.0 hosts x 1 (Type A connector) |
| DRAM |
1 GB DDR3L SDRAM |
| • Wireless-Enabled Mini-PCIe Slots |
| Number of Slots |
4 |
| Slots 1 to 3 |
USB signal for cellular modules |
| Slot 4 |
PCIe signal for Wi-Fi module |
| SIM Card Slots |
2 SIM card slots per Mini-PCIe slot for celular modules |
| Note |
Wireless modules must be purchased separately. |
| • Storage |
| Main Storage |
4 GB eMMC for OS storage |
| Storage Expansion |
mSATA slots x 1 |
| • Ethernet Interface |
| LAN |
Auto-sensing 10/100/1000 Mbps Ethernet ports x 2 (M12 X-coded, 8-pin) |
| Magnetic Isolation Protection |
1.5 kV built in |
| • GPS Module |
| Receiver Types |
• 72-channel u-blox M8 engine
• GPS L1C/A
• SBAS WAAS, EGNOS, and MSAS
• QZSS L1C/A
• GLONASS L1OF
• BeiDou B1 |
| Protocols |
|
| Time Pulse |
0.25 Hz to 10 MHz (configurable) |
| Velocity Accuracy |
0.05 m/s |
| Heading Accuracy |
0.3 degrees |
| Assisted GNSS (A-GNSS) |
Supports AssistNow Online and AssistNow Offline A-GNSS services, supports AssistNow Autonomous, and is OMA SUPL compliant |
| Operational Limits (assuming Airborne < 4 g platform) |
• Dynamics: 4 g
• Altitude: 50,000 m
• Velocity: 500 m/s |
| Antenna Type |
Passive/Active |
| Connector Type |
SMA/TNC |
| • Serial Interface |
| Serial Standards |
RS-232/422/485 software-selectable ports (5-pin terminal block connector) x 2 |
| Console Port |
RS-232 (TxD, RxD, GND), 4-pin pin-header output (115200, n, 8, 1) |
| • Serial Communication Parameters |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
XON/XOFF, ADDC® (automatic data direction control) for RS-485 |
| Baudrate |
115200 bps (max.) |
| • Serial Signals |
| RS-232 |
TxD, RxD, RTS, CTS, GND |
| RS-422 |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w |
Data+, Data-, GND |
| • Digital Input/Output |
| Digital Inputs |
3 (terminal block) |
| Digital Input Default Value |
High |
| Input Voltage |
0 to 30 VDC at 25 Hz |
| Digital Input Levels for Dry Contacts |
Logic level 0: Close to GND
Logic level 1: Open |
| Digital Input Levels for Wet Contacts |
Logic level 0: +3 V max.
Logic level 1: +10 V to +30 V (COM to DI) |
| Digital Outputs |
3 (terminal block) |
| DO Default Value |
High-Z |
| DO IO Type |
Open drain |
| Output Current |
Max. 200 mA per channel |
| On-State Voltage |
24 VDC nominal, open collector to 30 VDC |
| Isolation |
3 KV optical isolation |
| Connector |
10-pin terminal blocks with CAGE CLAMP® connection (4 inputs, COM, GND, 4 outputs) |
| • LEDs |
| System |
Power x 1, System Ready x 1 |
| LAN |
100/1000M x 4 |
| Serial |
Tx x 2, Rx x 2 |
| Programmable |
Diagnostics x 1 |
| Wireless Signal Strength |
Cellular/Wi-Fi x 12 |
| • Buttons |
| Reset to Default |
Resets the device to factory default values |
| • Physical Characteristics |
| Housing |
AI 5052 + ADC 12 |
| Weight |
2.2 kg (4.86 lb) |
| Dimensions |
• 220 x 134 x 88 mm (8.66 x 5.28 x 3.46 in) without wallmount ears
• 270 x 134 x 88 mm (10.63 x 5.28 x 3.46 in) with wallmount ears |
| Mounting |
Wall |
| • Environmental Limits |
| Operating Temperature |
• UC-8580-LX, UC-8580-Q-LX:
EN 50155 Class T1, -25 to 55°C (-13 to 131°F)
• UC-8580-T-LX, UC-8580-T-Q-LX, UC-8580-T-CT-LX,
UC-8580-T-CT-Q-LX (with LTE module):
EN 50155 Class Tx, -40 to 70°C (-40 to 158°F) |
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Anti-Vibration |
7.9 m/s2 @ EN 50155 random wave, 5-150 Hz, 5 hrs per axis |
| Anti-Shock |
50 m/s2 @ EN 50155 , half sine wave, 30 ms |
| Conformal Coating |
EN 50155 Tx |
| • Power Requirements |
| Input Voltage |
24 to 110 VDC(EN 50155 nominal input voltages: 24/48/72/96/110 V) |
| Input Current |
1.66 A @ 24 VDC; 0.36 A @ 110 VDC |
| Power Consumption |
Less than 40 W(with external loading on USB port and Mini-PCIe module) |
| Power-to-Chassis Isolation |
1400 VDC(EN 50155 power interuption class S2) |
| Connector |
M12 4-pin A-coded (2-pin M12, V+, V-) |
| • Standards and Certifications |
| Safety |
UL 60950-1, CSA C22.2 No. 60950-1-03, EN 60950-1 |
| EMC |
EN 55032 Class A, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, FCC Part 15 Subpart B Class A |
| Green Product |
RoHS, CRoHS, WEEE |
| Rail Traffic |
EN 50155, EN 50121-4, EN 45545, NFPA 130 |
| • Reliability |
| Alert Tools |
Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger |
Built-in WDT (watchdog timer) |
| • Warranty |
| Warranty Period |
5 years |
| Details |
See www.moxa.com/warranty |
| Note |
The Hardware Specifications apply to the embedded computer unit itself, but not to accessories. In particular, the wide temperature specification does not apply to accessories such as the power adapter and cables. |
| |
| Software Specifications |
| • Linux |
| OS |
Debian 8 |
| Web Server (Apache) |
Allows you to create and manage web sites; supports PHP and XML |
| Terminal Server (SSH) |
SSH allows remote logins to a secure encrypted console from any connected network |
| Kernel |
GNU/Linux 4.1System Shell: dash, bash
Text Editor: vim, nano |
| File System |
Ext2, Ext3, Ext4 |
| Internet Protocol Suite |
TCP, UDP, IPv4, IPv6, SNMPv2, ICMP, ARP, HTTP, CHAP, PAP, DHCP, NTP, NFS, SSH, PPP, SFTP, RSYNC, SSL |
| Programming Language Support |
PHP, Perl, Python |
| Internet Security |
OpenVPN, iptables |
| Cryptographic Hardware Accelerators |
AES, SHA, OpenSSL |
| Self Diagnosis |
Check the status of system and hardware components via software |
| Linux Board Support Packages (BSP) |
GCC C/C++ cross development tool chain: Bootloader/Kernel/filesystem |
| Cellular Networking |
• WVDIAL: Point-to-Point Protocol dialer that dials a modem and starts pppd service to connect to the Internet
• QMI (Qualcomm MSM Interface): Glib-based library for talking to WWAN modems and devices that speak the Qualcomm MSM Interf |
| Watchdog |
Features a hardware function to trigger system reset in a user-specified time interval (Linux standard provided) |
| Application Development Software |
• Moxa API Library (Watchdog timer, Moxa serial I/O control, Moxa DI/DO API)
• GNU C/C++ cross-compiler
• GNU C library
• GDB source-level debugging server |
| Software Protection |
Encryption tool for user executable files (based on patented Moxa technology) |
| Wireless Communication Management Tool |
SW utility and SDK for the management of wireless interfaces; supports the management of dual-SIM-on-single-modem |
