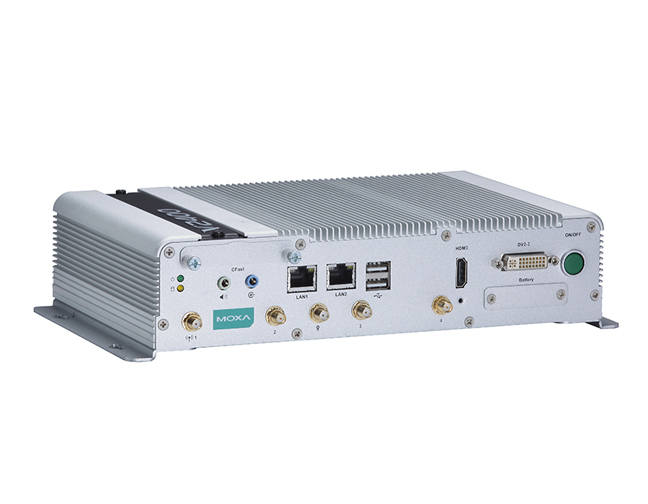

| Hardware Specifications |
| • Computer |
| CPU |
V2403-C2 Series: Intel® Celeron 1047UE (Dual Core, 2M Cache, 1.40 GHz)
V2403-C3 Series: Intel® Core i3-3217UE (Dual Core, 3M Cache, 1.60 GHz)
V2403-C7 Series: Intel® Core i7-3517UE (Dual Core, 4M Cache, 1.70 GHz) |
| OS |
Windows Embedded Standard 7 64-bit or Linux Debian 8 64-bit |
| System Memory |
1 DDR3-1600 SDRAM slot, 8 GB max. |
| USB |
USB 2.0 hosts x 4, type A connectors, supporting system boot up |
| • Storage |
| CFast |
1 removable CFast socket for OS storage, 1 internal CFast socket for OS backup |
| mSATA |
1 internal mini-PCIe socket for storage expansion |
| SSD/HDD |
1 internal SATA-II connector for 2.5” SSD/HDD |
| • Audio |
| Input |
Line-in interface (audio jack) |
| Output |
Line-out interface (audio jack) |
| • Wireless Peripherals |
| Expansion Slot |
2 Mini-PCIe sockets
• 1 USB signal, for Sierra Wireless 3G/LTE module
• 1 USB + PCIe signal |
| USIM |
2 USIM slots |
| • Display |
| Graphics Controller |
Intel® HD (integrated) |
| Connector Type |
1 HDMI connector (type A), 1 DVI-I connector, 1 VGA connector (CV required) |
| Display Interface |
HDMI supports HDMI 1.4b, 1920 x 1200 resolution @ 60 Hz
• DVI up to 1920x1200 resolution @ 60 Hz
• VGA up to 1920x1200 resolution @ 60 Hz
• VGA up to 2048x1536 resolution @ 75 Hz |
| • Ethernet Interface |
| LAN |
Auto-sensing 10/100/1000 Mbps ports (RJ45) x 2 |
| Isolation Protection |
1.5 kV |
| • Wireless SMA Interface |
| Wi-Fi |
2 SMA connectors |
| 3G/LTE |
2 SMA connectors |
| GPS |
1 SMA connector |
| • Serial Interface |
| Serial Standards |
RS-232/422/485 software selectable ports (DB9 male) x 4 |
| • Serial Communication Parameters |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485 |
| Baudrate |
50 bps to 921.6 kbps |
| • Serial Signals |
| RS-232 |
TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND |
| RS-422 |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w |
Data+, Data-, GND |
| • Digital Input |
| Input Channels |
DI x 4 |
| Input Voltage |
0 to 30 VDC at 25 Hz |
| Digital Input Levels for Dry Contacts |
Logic level 0: Close to GND
Logic level 1: Open |
| Digital Input Levels for Wet Contacts |
Logic level 1: +3 V max
Logic level 0: +10 V to +30 V (Source to DI) |
| Connector Type |
10-pin screw-fastened Euroblock terminal |
| Isolation |
3 kV optical isolation |
| • Digital Output |
| Output Channels |
DO x 4, sink type |
| Output Current |
Max. 200 mA per channel |
| On-State Voltage |
24 VDC nominal, open collector to 30 VDC |
| Connector Type |
10-pin screw-fastened Euroblock terminal |
| Isolation |
3 kV optical isolation |
| • LEDs |
| System |
Power |
| Storage |
CFast/SSD/HDD/mSATA |
| LAN |
2 LEDs per port (10/100/1000 Mbps) |
| Serial |
2 LEDs per port (Tx and Rx) |
| • Switches and Buttons |
| Power Switch |
on/off |
| Reset Button |
System reset |
| • Physical Characteristics |
| Housing |
Aluminum |
| Weight |
"-W" Models: 2.247 kg (4.99 lb)
non "-W" Models: 2.168 kg (4.82 lb) |
| Dimensions |
Without ears: 250 x 57 x 154 mm (9.84 x 2.23 x 6.06 in)
With ears: 275 x 63 x 154 mm (10.83 x 2.47 x 6.06 in) |
| Mounting |
DIN rail, wall |
| • Environmental Limits |
| Operating Temperature |
Standard models: -40 to 70°C (-40 to 158°F), with Moxa recommended wireless modules (3G/LTE + Wi-Fi) installed |
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Anti-Vibration |
IEC 60068-2-64: 5 Grms, 5 Hz to 500 Hz, 1 hr/axis w/ mSATA, CFast, SSD |
| Anti-Shock |
IEC 60068-2-27: 50 g/11ms ±X, ±Y, ±Z, 3 shocks each axis w/ mSATA, CFast, SSD |
| • Power Requirements |
| Input Voltage |
9 to 36 VDC (3-pin terminal block for V+, V-, SG) |
| Input Current |
• 3.51 A @ 9 VDC
• 1.39 A @ 24 VDC
• 0.93 A @ 36 VDC |
| Power Consumption |
34 W |
| • Standards and Certifications |
| Safety |
UL 60950-1, CSA C22.2 No. 60950-1-03 (60950-1-07), EN 60950-1, UL 508 |
| EMC |
EN 55032/24, EN 61000-6-2/6-4 |
| EMI |
CISPR 32, FCC Part 15B Class A |
| EMS |
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: Signal: 1 kV
IEC 61000-4-8 |
| Green Product |
RoHS, CRoHS, WEEE |
| • Reliability |
| Automatic Reboot Trigger |
Software-programmable watchdog timer configurable from 1 to 255 seconds |
| • MTBF (mean time between failures) |
| Time |
V2403-C2-W-T/V2403-C3-W-T /V2403-C7-W-T: 335,810 hrs
V2403-C2-T/V2403-C3-T/V2403-C7-T: 358,958 hrs
V2403-C2-T-W7E/V2403-C2-T-LX: 329,398 hrs |
| Standard |
Telcordia (Bellcore) Standard TR/SR |
| |
| Software Specifications |
| • Linux |
| OS |
Linux Debian 8 64-bit |
| Web Server (Apache) |
Allows you to create and manage web sites; supports PHP and XML |
| Terminal Server (SSH) |
Provides secure encrypted communications between two unsecure hosts over an unsecure network |
| Kernel Version |
GNU/Linux 3.16 |
| System Shell |
DASH (default), BASH |
| Text Editor |
vim |
| File System |
ext4 |
| Internet Protocol Suite |
TCP, UDP, IPv4, SNMPv2, ICMP, ARP, HTTP, ICMP, ARP, DHCP, NTP, NFS, SSH, SFTP, RSYNC, SSL |
| Internet Security Suite |
OpenVPN, IPTables Firewall |
| Cellular Networking |
QMI (Qualcomm MSM Interface): Glib-based library for talking to WWAN modems and devices that speak the Qualcomm MSM Interface (QMI) protocol. |
| Watchdog |
A watchdog timer that triggers a system reset upon software freezes, for both specific applications and system-wide failures. |
| Application Development Software |
• Moxa API Library
• GNU C library
• Perl |
| Embedded Self-Health Maintenance Software |
Moxa Proactive Monitoring |
| Security Update of Existing Software Packages |
All software packages installed on the V2403 can be automatically updated using Debian Linux's Advanced Packaging Tool (APT) server or Moxa's server. |
| • Windows Embedded Standard 7 |
| Core OS |
• 64-bit support
• Remote Client
• Remote Procedure Call |
| Applications and Services Development |
• Remote Desktop Protocol 7.1
• COM OLE Application Support
• COM + Application Support
• MSMQ |
| Internet Services |
• Internet Explorer 8.0
• IIS 7.0 |
| Diagnostics |
• Common Diagnostic Tools
• Problem Reports and Solutions |
| Fonts |
Western, Middle Eastern, South East Asian, and South Asian |
| Graphics and Multimedia |
• MPEG Layer-3 Audio Codecs (MP3)
• MPEG4 Decoders
• DirectX and Windows Device Experience |
| Management |
• Group Policy Management
• Windows Management Instrument (WMI)
• Windows Update |
| Networking |
• Extensible Authentication Protocol (EAP)
• Internet Authentication Service
• Telnet Server
• Bluetooth
• Domain Services
• Network Access Protection
• Network and Sharing Center
• Quality of Service
• Remote Access Service (RAS)
• Telephony API Client
• Windows Firewall
• Wireless Networking |
| Security |
• Credential Roaming Service
• Credentials and Certificate Management
• Windows Authorization Manager (AZMAN)
• Windows Security Center
• Active Directory Rights Management
• Security Base
• Encrypted File System (EFS) |
| Embedded Features |
• Enhanced Write Filter (EWF)
• File-Based Write Filter (FBWF)
• Registry Filter
• WSDAPI for .NET |
| File Systems and Data Store |
• Windows Data Access Components
• Windows Backup and Restore |
| Maintenance |
Moxa Proactive Monitoring and Moxa Smart Recovery |
