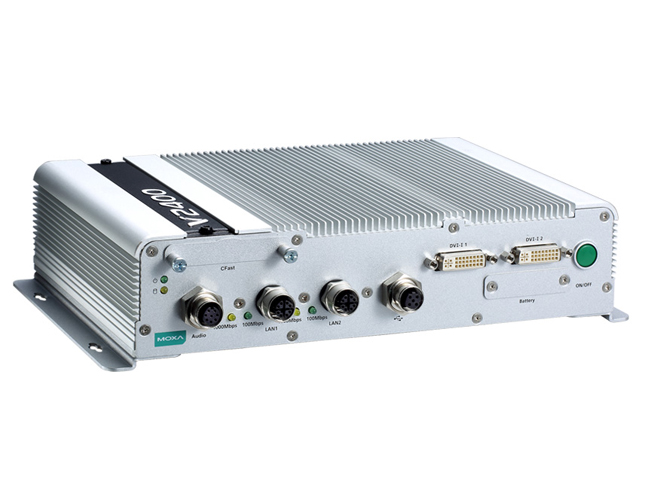

| Hardware Specifications |
| • Computer |
| CPU |
• Intel Celeron 1047UE processor (2M cache, 1.40 GHz) for the V2406A-C2 series
• Intel Core i7-3517UE processor (6M cache, 1.7 GHz) for the V2406A-C7 series |
| OS |
Windows Embedded Standard 7 or Linux Debian 7 |
| System Chipset |
Mobile Intel® HM65 Express |
| System Memory |
1 DDR3-1600 SO-DIMM SDRAM slot, 8 GB max., 4 GB pre-installed |
| USB |
3 bootable USB 2.0 ports (2 type A, 1 M12 D-coded) |
| • Storage |
| HDD/SSD Support |
1 internal SATA-II bus for 2.5” HDD/SSD* |
| *Storage drive not included. To be purchased separately. |
| CFast Support |
1 slot for OS*, 1 slot for backup storage |
| *32-bit W7E requires at least an 8 GB CFast card*64-bit W7E requires at least a 16 GB CFast card (optional) *Linux Debian 7 requires at least an 8 GB CFast card (to be purchased separately) |
| • Other Peripherals |
| Audio |
Line-in, line-out interface (M12 A-coded) |
| • Display |
| Graphics Controller |
Intel® HD Graphics 4000 (integrated) |
| Connector Type |
2 DVI-I connectors |
| Display Interface |
DVI up to 1920x1200 resolution @ 60 Hz
VGA up to 1920x1200 resolution @ 60 Hz
VGA up to 2048x1536 resolution @ 75 Hz |
| • Ethernet Interface |
| LAN |
2 auto-sensing 10/100/1000 Mbps ports (M12 X-coded) |
| Isolation Protection |
1.5 kV |
| • Serial Interface |
| Serial Standards |
4 RS-232/422/485 ports, software selectable (DB9 male) |
| ESD Protection |
4 kV for all signals |
| Isolation Protection |
1.5 kV |
| • Serial Communication Parameters |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485 |
| Baudrate |
50 bps to 921.6 kbps (non-standard baudrates supported; see user’s manual for details) |
| • Serial Signals |
| RS-232 |
TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND |
| RS-422 |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w |
Data+, Data-, GND |
| • Digital Input |
| Input Channels |
6, source type |
| Input Voltage |
0 to 30 VDC at 25 Hz |
| Digital Input Levels for Dry Contacts |
• Logic level 0: Close to GND
• Logic level 1: Open |
| Digital Input Levels for Wet Contacts |
• Logic level 0: +3 V max.
• Logic level 1: +10 V to +30 V (Source to DI) |
| Isolation |
3 kV optical isolation |
| • Digital Output |
| Output Channels |
2, sink type |
| Output Current |
Max. 200 mA per channel |
| On-state Voltage |
24 VDC nominal, open collector to 30 VDC |
| Connector Type |
10-pin screw-fastened Euroblock terminal (6 inputs, 2 outputs, DI Source, GND) |
| Isolation |
3 kV optical isolation |
| • LEDs |
| System |
Power, Storage |
| LAN |
2 per port (10/100/1000 Mbps) |
| Serial |
2 per port (Tx and Rx) |
| • Switches and Buttons |
| Power Switch |
on/off (front panel) |
| Reset Button |
For warm reboot (front panel) |
| • Physical Characteristics |
| Housing |
Aluminum |
| Weight |
2 kg |
| Dimensions |
Without ears: 250 x 57 x 154 mm (9.84 x 2.23 x 6.06 in)
With ears: 275 x 63 x 154 mm (10.83 x 2.47 x 6.06 in) |
| Mounting |
DIN rail, wall, VESA |
| • Environmental Limits |
| Operating Temperature* |
Standard models: -25 to 55°C (-13 to 131°F)
Wide temp. models: -40 to 70°C (-40 to 158°F) |
| Storage Temperature* |
-40 to 85°C (-40 to 185°F) |
| *without HDD installed |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Anti-Vibration |
EN 50155 standard |
| Anti-Shock |
EN 50155 standard |
| Conformal Coating |
Available on request |
| • Power Requirements |
| Input Voltage |
12 to 48 VDC (M12 A-coded) |
| Note |
Compliant with EN 50155 at 24 VDC |
| Power Consumption |
• 3.24 A @ 12 VDC, 38.88 W
• 0.74 A @ 48 VDC, 35.52 W |
| • Standards and Certifications |
| Safety |
UL 60950-1, CSA C22.2 No. 60950-1-07, EN 60950-1 |
| EMC |
EN 55022 Class A, EN 61000-3-2 Class D, EN 61000-3-3, EN 55024, FCC Part 15 Subpart B Class A |
| Green Product |
RoHS, CRoHS, WEEE |
| Rail Traffic |
EN 50155*, EN 50121-3-2, EN 50121-4, IEC 61373 |
| *Complies with a portion of EN 50155 specifications. Please contact Moxa or a Moxa distributor for details. |
| • Reliability |
| Automatic Reboot Trigger |
Software-programmable watchdog timer configurable from 1 to 255 seconds |
| • Warranty |
| Warranty Period |
3 years |
| Note |
These hardware specifications describe the embedded computer unit itself, but not its official accessories. In particular, the wide temperature specification does not apply to accessories such as power adapters and cables. |
| |
| Software Specifications |
| • Windows Embedded Standard 7 |
| Core OS |
• 32/64-bit support
• Remote Client
• Remote Procedure Call |
| Applications and Services Development |
• .Net Framework 4.5
• Remote Desktop Protocol 7.1
• COM OLE Application Support
• COM+ Application Support
• MSMQ |
| Internet Services |
• Internet Explorer 8.0
• IIS 7.0 |
| Diagnostics |
• Common Diagnostic Tools
• Problem Reports and Solutions |
| Fonts |
Chinese (Trad. and Simp.), Japanese, Korean, Western, Middle Eastern, South East Asian, and South Asian Fonts |
| Graphics and Multimedia |
• MPEG DTV-DVD Audio Decoder (MPEG-2, AAC)
• MPEG Layer-3 Audio Codecs (MP3)
• MPEG4 Decoders
• Windows Media Video VC-1 (WMV) Codecs
• DirectX and Windows Device Experience
• Windows Media Player 12 |
| Management |
• Group Policy Management
• Windows Management Instrument (WMI)
• Windows Update |
| Networking |
• Extensible Authentication Protocol (EAP)
• Internet Authentication Service
• Telnet Server
• Bluetooth
• Domain Services
• Network Access Protection
• Network and Sharing Center
• Quality of Service
• Remote Access Service (RAS)
• Telephony A |
| Security |
• Credential Roaming Service
• Credentials and Certificate Management
• Windows Authorization Manager (AZMAN)
• Windows Security Center
• Active Directory Rights Management
• Security Base
• Encrypted File System (EFS) |
| Embedded Features |
• Enhanced Write Filter (EWF)
• File-Based Write Filter (FBWF)
• Message Box Default Reply
• Registry Filter
• WSDAPI for .NET |
| File Systems and Data Store |
• Windows Data Access Components
• Windows Backup and Restore |
| Embedded Self-Health Diagnostic Software |
SNMP-based remote scripting layer for monitoring, reporting, and control |
| • Linux |
| OS |
Linux Debian 7 |
| File System |
EXT 4 |
| Internet Protocol Suite |
TCP, UDP, IPv4, SNMPv1/v2c/v3, ICMP, ARP, HTTP, SSH 1.0/2.0, SSL, DHCP, NTP, NFS, Telnet, FTP, TFTP, PPP, PPPoE |
| Internet Security |
OpenVPN, iptables firewall |
| Web Server (Apache) |
Allows you to create and manage web sites; supports PHP and XML |
| Secure Shell for Remote Access |
SSH allows remote logins to a secure encrypted console from any connected network |
| Dial-up Networking |
PPP Daemon for Linux that allows Unix machines to connect to the Internet through dialup lines, using the Point-to-Point Protocol (PPP). Works with ‘chat’, ‘dip’, and ‘dialu dip’, and ‘diald’, among (many) others. Supports IP, TCP, UDP |
| File Server |
Enables remote clients to access files and other resources over the network |
| Watchdog |
A watchdog timer that triggers a system reset upon software freezes, for both specific applications and system-wide failures. |
| Application Development Software |
• Moxa API Library
• GNU C/C++ cross-compiler
• GNU C library
• Perl |
| Software Package |
• SNMP
• SafeGaurd technology |
| Terminal Server (SSH) |
Provides secure encrypted communications between two un-trusted hosts over an insecure network |
| Tailored MIB File for SNMP Control |
SNMP allows centralized network monitoring and control. With Moxa’s proprietary MIB file, trap notifications keep network overhead low while providing monitoring and control of key BIOS settings; internal hardware senso |
