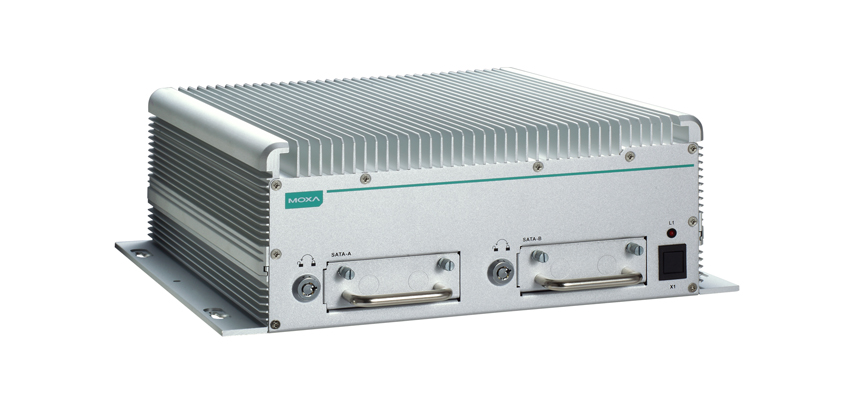

| Hardware Specifications |
| CPU |
• Intel® Core™ i5-3610ME dual-core processor (3M Cache, 2.7 GHz) for
V2616A-C5 series
• Intel® Core™ i7-3517UE dual-core processor (4M Cache, 1.7 GHz) for
V2616A-C7-T series
• Intel® Core™ i7-3612QE quad-core processor (6M Cache, 2.1 GHz) for
V2616A-C8 series |
| OS (pre-installed) |
Linux or Windows Embedded Standard 7 |
| System Chipset |
Mobile Intel HM65 Express Chipset |
| System Memory |
16 GB capacity, 4 GB pre-installed: 2 slot of 8 GB DDR3-1600 SO-DIMM SDRAM |
| USB |
3 USB 2.0 compliant hosts; 2 with type A connectors supporting system bootup, 1 with M12 connector |
| • Storage |
| Built-in |
8 GB CFast to store OS |
| Storage Expansion |
2 hot-swappable storage trays for 2.5” SATA SSD or HDD |
| HDD Support |
1 internal SATA-II storage connector for 2.5” SSD or HDD |
| Expansion Slot |
1 full-size/half-size mini PCIe socket with 1 SIM card socket. Mini PCIe socket supports power on/off control |
| • Other Peripherals |
| Audio |
Line-in, line-out (M12) |
| • Display |
| Graphics Controller |
Intel® HD Graphics 4000 (integrated) |
| VGA Interface |
DB15 female connector, max. resolution 2048 x 1536 |
| DVI Interface |
DVI-D connector (Chrontel CH7307 SDVO to DVI transmitter), max. resolution 1920 x 1200 |
| • Ethernet Interface |
| LAN |
2 auto-sensing 10/100/1000 Mbps ports (M12 X-coded) |
| • Serial Interface |
| Serial Standards |
2 software-selectable RS-232/422/485 ports (DB9 male) |
| Optical Isolation Protection |
2 kV |
| ESD Protection |
4 kV for all signals |
| Magnetic Isolation Protection |
1.5 kV built-in |
| • Serial Signals |
| RS-232 |
TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND |
| RS-422 |
TxDA(-), TxDB(+), RxDB(+), RxDA(-), GND |
| RS-485-4w |
TxDA(-), TxDB(+), RxDB(+), RxDA(-), GND |
| RS-485-2w |
DataA(-), DataB(+), GND |
| • Serial Communication Parameters |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485 |
| Baudrate |
50 bps to 921.6 Kbps (non-standard baudrates supported; see user’s manual for details) |
| • Digital Input |
| Input Channels |
6, source type |
| Input Voltage |
0 to 30 VDC at 25 Hz |
| Digital Input Levels for Dry Contacts |
• Logic level 0: Close to GND
• Logic level 1: Open |
| Digital Input Levels for Wet Contacts |
• Logic level 0: +3 V max.
• Logic level 1: +10 V to +30 V (Source to DI) |
| Isolation |
3 kV optical isolation |
| • Digital Output |
| Output Channels |
2, sink type |
| Output Current |
Max. 200 mA per channel |
| On-state Voltage |
24 VDC nominal, open collector to 30 VDC |
| Connector Type |
10-pin screw terminal block (6 DI points, 2 DO points, DI Source, GND) |
| Isolation |
3 kV optical isolation |
| • LEDs |
| System |
1 Power, 1 Storage |
| LAN |
2 100M/Link, 2 1000M/Link |
| Serial |
2 TX, 2 RX |
| • Physical Characteristics |
| Housing |
Aluminum |
| Weight |
5 kg |
| Dimensions |
Without ears: 287 x 250 x 101 mm (11.29 x 9.84 x 3.97 in)
With ears: 287 x 290 x 101 mm (11.29 x 11.41 x 3.97 in) |
| Mounting |
wall |
| • Environmental Limits |
| Operating Temperature |
(without HDD installed)
Standard models: -25 to 55°C (-13 to 131°F)
Wide temp. models: -40 to 70°C (-40 to 158°F) |
| Storage Temperature |
(with SSD installed) -30 to 60°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Anti-vibration |
EN 50155 standard |
| Anti-shock |
EN 50155 standard |
| • Power Requirements |
| Input Voltage |
24 to 110 VDC, M12 connector |
| Note |
24 and 110 VDC are EN 50155 compliant |
| Power Consumption |
• 60 W (no SSD/HDD attached)
• 2.5 A @ 24 VDC to 0.55 A @ 110 VDC (no SSD/HDD attached) |
| Power Button |
On/off (front panel) |
| • Standards and Certifications |
| Safety |
UL 60950-1, CSA C22.2 No. 60950-1-07, EN 60950-1 |
| EMC |
EN 55022 Class A, EN 61000-3-2 Class D, EN 61000-3-3, EN 55024, FCC Part 15 Subpart B Class A |
| Rail Traffic |
EN 50155, EN 50121-2-3, EN 50121-4, IEC 61373 |
| Green Product |
RoHS, CRoHS, WEEE |
| • Reliability |
| Automatic Reboot Trigger |
Built-in WDT (watchdog timer) supporting 1-255 second system reset, software programmable |
| • Warranty |
| Warranty Period |
3 years |
| Note |
These hardware specifications describe the embedded computer unit itself, but not its official accessories. In particular, the wide temperature specification does not apply to accessories such as power adapters and cables. |
| |
| Software Specifications |
| • Linux |
| OS |
Linux Debian 7 |
| File System |
EXT 4 |
| Internet Protocol Suite |
TCP, UDP, IPv4, SNMPv1/v2c/v3, ICMP, ARP, HTTP, SSH 1.0/2.0, SSL, DHCP, NTP, NFS, Telnet, FTP, TFTP, PPP, PPPoE |
| Internet Security |
OpenVPN, Netfilter/iptables |
| Web Server (Apache) |
Allows you to create and manage web sites; supports PHP and XML |
| Secure Shell for Remote Access |
SSH allows remote logins to a secure encrypted console from any connected network |
| Terminal Server (SSH) |
Provides secure encrypted communications between two un-trusted hosts over an insecure network |
| Dial-up Networking |
PPP Daemon for Linux that allows Unix machines to connect to the Internet through dialup lines, using the Point-to-Point Protocol (PPP). Works with ‘chat’, ‘dip’, and ‘dialup’, ‘dip’, and ‘diald’, among (many) others. Supports IP, TCP, UDP, and (for Linux) IPX (Novell). |
| File Server |
Enables remote clients to access files and other resources over the network |
| Watchdog |
A watchdog timer that triggers a system reset upon software freezes, for both specific applications and system-wide failures. |
| Application Development Software |
• Moxa API library
• GNU C/C++ cross compiler
• GNU C library
• Perl |
| Software Package |
• SNMP
• SafeGuard technology |
| • Windows Embedded Standard 7 |
| Core OS |
• Windows 7 Embedded, 32 bit
• Sensor and Location Platform
• Remote Procedure Call |
| Applications and Services Development |
• .Net Framework 4.5
• Remote Desktop Protocol 7.1
• COM OLE Application Support
• COM+ Application Support
• MSMQ |
| Internet Services |
• Internet Explorer 11
• IIS 7.0 |
| Diagnostics |
• Common Diagnostic Tools
• Problem Reports and Solutions |
| Fonts |
• Chinese (Trad. and Simp.), Middle East, South East Asian, and South Asian Fonts
• True Type Fonts |
| Graphics and Multimedia |
• MPEG DTV-DVD Audio Decoder (MPEG-2, AAC)
• MPEG Layer-3 Audio Codecs(MP3)
• MPEG4 Decoders
• Windows Media Video VC-1 (WMV) Codecs
• DirectX and Windows Device Experience
• Windows Media Player 12 |
| Management |
• Group Policy Management
• Windows Management Instrument (WMI)
• Windows Update |
| Networking |
• Extensible Authentication Protocol (EAP)
• Internet Authentication Service
• Telnet Server
• Bluetooth
• Domain Services
• Network Access Protection
• Network and Sharing Center
• Quality of Service
• Remote Access Service (RAS)
• Telephony API Client
• Windows Firewall
• Wireless Networking |
| Security |
• Credential Roaming Service
• Credentials and Certificate Management
• Windows Authorization Manager (AZMAN)
• Windows Security Center
• Active Directory Rights Management
• Security Base
• Encrypted File System (EFS) |
| Embedded Features |
• Enhanced Write Filter (EWF)
• File-Based Write Filter (FBWF)
• Message Box Default Reply
• Registry Filter
• WSDAPI for .NET |
| File Systems and Data Storage |
• Windows Data Access Components
• Windows Backup and Restore |
| Embedded Self-Health Diagnostics |
SNMP-based remote scripting layer for monitoring, reporting, and control |
