Moxa UC-8112-LX-STK - UC-8112-LX starter kit along
by MOXA

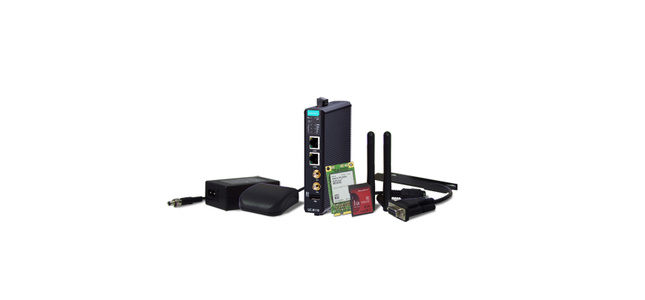

UC-8112-LX-STK Starter Kit Package

Console cable x 1
GPS antenna x 1
LTE antenna x 2
WiFi antenna x 2
Wall mounting kit x 1
1 GB SD x 1
Power cord x 1
Power adapter x 1
Wi-Fi antenna cable x 1
Cellular antenna cable x 1

Description
Specification
Datasheet

Moxa�s UC-8100 series starter kit is an ideal hardware and software package for system evaluation. Containing a UC-8100 computer, optional cellular and Wi-Fi modules, and various software packages, this compact starter kit helps users deploy the system architecture in a short time.

The starter kit offers cellular or Wi-Fi modules that users can easily install to enable wireless communication between the UC-8100 and peripheral devices. In addition, system integrators can easily evaluate the feasibility of using remote management for specific industrial tasks, such as data acquisition, and system integration.

Hardware Specifications
� Computer
CPU	ARMv7 Cortex-A8 300/600/1000 MHz
USB	USB 2.0 host x 1 (type A connector)
DRAM	256 MB DDR3 SDRAM
OS (pre-installed)	Debian ARM 7 (Kernel 3.2)
� Storage
Storage Expansion	� SDHC/SDXC socket for storing OS and storage expansion � 1 GB SD card with OS pre-installed � MicroSD socket for storage expansion (UC-8112-LX only) � 2 GB MicroSD cards with OS pre-installed (UC-8112-LX only)
� Ethernet Interface
LAN	2 auto-sensing 10/100 Mbps ports (RJ45)
Magnetic Isolation Protection	1.5 kV built-in
� Serial Interface
Serial Standards	1 or 2 RS-232/422/485 ports, software-selectable (5-pin terminal block connector)
Console Port	RS-232 (TxD, RxD, GND), 4-pin pin header output (115200, n, 8, 1)
� Serial Communication Parameters
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	XON/XOFF, ADDC� (automatic data direction control) for RS-485
Baudrate	Max. 921600 bps
� Serial Signals
RS-232	TxD, RxD, RTS, CTS, GND
RS-422	TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w	TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w	Data+, Data-, GND
� LEDs
System	Power x 1, USB x 1, SD x 1, signal strength x 3 (UC-8112/8162/8132 with cellular module)
LAN	10M/100M on connector
Programmable	Diagnosis x 3
� Switches and Buttons
Push Button	Initially configured to return a diagnostic report, and to reset the device to factory defaults
� Physical Characteristics
Housing	Polycarbonate plastic
Weight	224 g
Dimensions	101 x 27 x 128 mm (3.98 x 1.06 x 5.04 in)
Mounting	DIN rail, wall (with optional kit)
� Environmental Limits
Operating Temperature	Standard Models: -10 to 60�C (14 to 140�F) Wide Temp. Models*: -40 to 75�C (-40 to 167�F)
Note	Available by request.
Storage Temperature	-40 to 80�C (-40 to 176�F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Anti-Vibration	2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without any USB devices attached)
Anti-Shock	20 g @ IEC 60068-2-27, half sine wave, 30 ms
� Power Requirements
Input Voltage	12 to 24 VDC (3-pin terminal block, V+, V-, SG)
Power Consumption	5.4 W (without cellular module and external USB device attached)� 450 mA @ 12 VDC � 225 mA @ 24 VDC
� Standards and Certifications
Safety	UL 60950-1, EN 60950-1, CCC (GB9254, GB17625.1)
EMC	EN55022 Class B, EN 55024-4-2, EN 55024-4-3, EN 55024-4-4, FCC Part 15 Subpart B Class A
Green Product	RoHS, CRoHS, WEEE
� Reliability
Alert Tools	Built-in RTC (real-time clock)
Automatic Reboot Trigger	Built-in WDT (watchdog timer)
� Warranty
Warranty Period	5 years
Details	See www.moxa.com/warranty

Software Specifications
� Linux
OS	Debian ARM 7
Web Server (Apache)	Allows you to create and manage web sites; supports PHP and XML
Terminal Server (SSH)	Provides secure encrypted communications between two un-trusted hosts over an insecure network
Kernel	GNU/Linux 3.2
System Shell	DASH (default), BASH
Text Editor	vim, nano
Internet Protoctol Suite	TCP, UDP, IPv4, IPv6, SNMPv2, ICMP, ARP, HTTP, CHAP,PAP,DHCP, NTP,NFS, SSH, PPP, SFTP, RSYNC, SSL
Programming Language Support	PHP, Perl, Python
Internet Security Suite	OpenVPN, iptables
Cryptographic hardware accelerators	AES, SHA, OpenSSL
Self Diagnosis	Check status of system and hardware component via software method
Linux Board Support Packages (BSP)	� GCC C/C++ cross development tool chain � Bootloader/ Kernel/ filesystem
Cellular Networking	(UC-8132-LX, UC-8162-LX, UC-8112-LX only)� WVDIAL: Point-to-Point Protocol dialer that dials a modem and starts pppd to connect to the Internet. � QMI (Qualcomm MSM Interface): Glib-based library for talking to WWAN modems and devices
Cybersecurity	� Secure Boot: A novel authentication algorithm proposed to secure platform integration. Only trusted Linux kernel and bootloader should be executed (Patent Pending). � SUDO Mechanism: Sudo (sometimes considered short for Super-user Do) is a program designed to let system administrators allow some users to execute some commands as root (or another user). The basic philosophy is to give as few privileges as possible but still allow people to get their work done, and the Root account is disabled by default. � Security Update of existing software packages: All packages in the UC-8100 could be updated for security purposes via Debian or Moxa�s Advanced Packaging Tool (APT) server. � USB Protection: Provides a mechanism for disabling USB function to avoid USB stick malware attacks. � SD Write Protection: Provides a mechanism for disabling SD write permission both in the filesystem SD and extended storage SD. (Note: Extended storage SD is only supported by the UC-8112-LX). � TPM (Trusted Platform Module, Version 1.2 ): Dedicated microprocessor designed to secure hardware by integrating cryptographic keys into devices (only supported by the UC-8112-LX).
