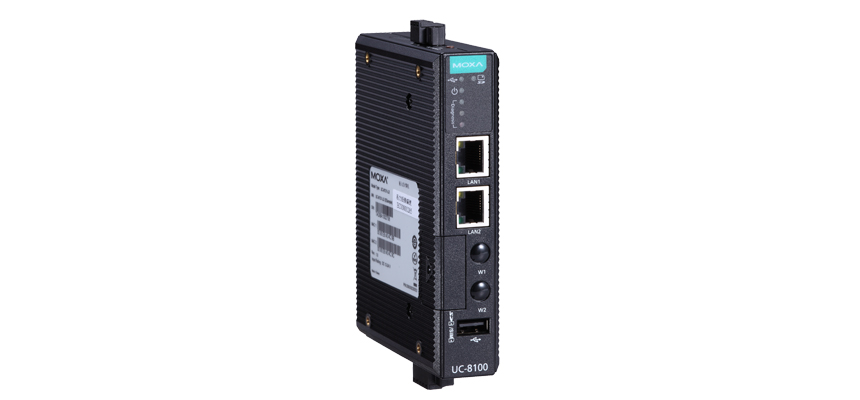

Moxa UC-8162-T-LX - Wide temperature RISC-based communication-centric computing platform with 600 MHz CPU, Mini PCIe socket for
by MOXA
|
|
|
|
- ARMv7 Cortex-A8 300/600/1000 MHz processor
- Dual auto-sensing 10/100 Mbps Ethernet ports
- SD socket for storage expansion and OS installation
- Rich programmable LEDs and a programmable button for easy installation and
maintenance
- Mini PCIe socket for cellular module
- Debian Linux open platform
- Cyber security
|
|
|
The UC-8100 computing platform is designed for embedded data acquisition
applications. The computer comes with one or two RS-232/422/485 serial ports and
dual 10/100 Mbps Ethernet LAN ports, as well as a Mini PCIe socket to support
cellular modules. These versatile communication capabilities let users
efficiently adapt the UC-8100 to a variety of complex communications solutions.
The UC-8100 is built around a Cortex-A8 RISC processor that has been
optimized for use in energy monitoring systems, but is widely applicable to a
variety of industrial solutions. With flexible interfacing options, this tiny
embedded computer is a reliable and secure gateway for data acquisition and
processing at field sites as well as a useful communication platform for many
other large-scale deployments.
The UC-8112-LX-CG and UC-8132-LX-CG models come with ThingsPro™ suite
pre-installed for your industrial IoT application needs. For more information,
please see:
http://www.moxa.com/product/ThingsPro.htm
Wide temperature (T) models are also available for extended temperature
applications. All units are thoroughly tested in a testing chamber, guaranteeing
that the computing platforms are suitable for wide temperature applications.
| Hardware Specifications |
| • Computer |
| CPU |
ARMv7 Cortex-A8 300/600/1000 MHz |
| USB |
USB 2.0 host x 1 (type A connector) |
| DRAM |
256 MB DDR3 SDRAM (512 MB by request) |
| OS (pre-installed) |
Debian ARM 7 (Kernel 3.2) |
| • Storage |
| Storage Expansion |
• SDHC/SDXC socket for storing OS and storage expansion
• 1 GB SD card with OS pre-installed
• MicroSD socket for storage expansion (UC-8112-LX/UC-8112-T-LX only)
• 2 GB MicroSD cards with OS pre-installed (UC-8112-LX/UC-8112-T-LX only) |
| • Ethernet Interface |
| LAN |
2 auto-sensing 10/100 Mbps ports (RJ45) |
| Magnetic Isolation Protection |
1.5 kV built-in |
| • Serial Interface |
| Serial Standards |
1 or 2 RS-232/422/485 ports, software-selectable (5-pin terminal block connector) |
| Console Port |
RS-232 (TxD, RxD, GND), 4-pin pin header output (115200, n, 8, 1) |
| • Serial Communication Parameters |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
XON/XOFF, ADDC® (automatic data direction control) for RS-485 |
| Baudrate |
Max. 921600 bps |
| • Serial Signals |
| RS-232 |
TxD, RxD, RTS, CTS, GND |
| RS-422 |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w |
Data+, Data-, GND |
| • LEDs |
| System |
Power x 1, USB x 1, SD x 1, signal strength x 3 (UC-8112/8162/8132 with cellular module) |
| LAN |
10M/100M on connector |
| Programmable |
Diagnosis x 3 |
| • Switches and Buttons |
| Push Button |
Initially configured to return a diagnostic report, and to reset the device to factory defaults |
| • Physical Characteristics |
| Housing |
Polycarbonate plastic |
| Weight |
224 g |
| Dimensions |
101 x 27 x 128 mm (3.98 x 1.06 x 5.04 in) |
| Mounting |
DIN rail, wall (with optional kit) |
| • Environmental Limits |
| Operating Temperature |
Standard Models: -10 to 60°C (14 to 140°F)Â
Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature |
-40 to 80°C (-40 to 176°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Anti-Vibration |
2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without any USB devices attached) |
| Anti-Shock |
20 g @ IEC 60068-2-27, half sine wave, 30 ms |
| • Power Requirements |
| Input Voltage |
12 to 24 VDC (3-pin terminal block, V+, V-, SG) |
| Power Consumption |
5.4 W (without cellular module and external USB device attached)• 450 mA @ 12 VDC
• 225 mA @ 24 VDC |
| • Standards and Certifications |
| Safety |
UL 60950-1, EN 60950-1, CCC (GB9254, GB17625.1) |
| EMC |
EN55022 Class B, EN 55024-4-2, EN 55024-4-3, EN 55024-4-4, FCC Part 15 Subpart B Class A |
| Green Product |
RoHS, CRoHS, WEEE |
| • Reliability |
| Alert Tools |
Built-in RTC (real-time clock) |
| Automatic Reboot Trigger |
Built-in WDT (watchdog timer) |
| • Warranty |
| Warranty Period |
5 years |
| • Linux |
| OS |
Debian ARM 7 |
| Web Server (Apache) |
Allows you to create and manage web sites; supports PHP and XML |
| Terminal Server (SSH) |
Provides secure encrypted communications between two un-trusted hosts over an insecure network |
| Kernel |
GNU/Linux 3.2 |
| System Shell |
DASH (default), BASH |
| Text Editor |
vim, nano |
| Internet Protoctol Suite |
TCP, UDP, IPv4, IPv6, SNMPv2, ICMP, ARP, HTTP, CHAP,PAP,DHCP, NTP,NFS, SSH, PPP, SFTP, RSYNC, SSL |
| Programming Language Support |
PHP, Perl, Python |
| Internet Security Suite |
OpenVPN, iptables |
| Cryptographic hardware accelerators |
AES, SHA, OpenSSL |
| Self Diagnosis |
Check status of system and hardware component via software method |
| Linux Board Support Packages (BSP) |
• GCC C/C++ cross development tool chain
• Bootloader/ Kernel/ filesystem |
| Cellular Networking |
(UC-8132-LX/UC-8132-T-LX, UC-8162-LX/UC-8162-T-LX, UC-8112-LX/UC-8112-T-LX only)• WVDIAL: Point-to-Point Protocol dialer that dials a modem and starts pppd to connect to the Internet.
• QMI (Qualcomm MSM Interface): Glib-based library |
| Cybersecurity |
• Secure Boot: A novel authentication algorithm proposed to secure platform integration. Only trusted Linux kernel and bootloader should be executed (Patent Pending).
• SUDO Mechanism: Sudo (sometimes considered short for Super-user Do) is a |
|
|
|
|
