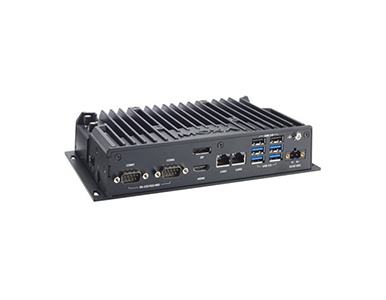

Moxa BXP-C101-C5-S1-T - Box type, Core i5-120U, DDR4, COMx2, LANx2, USBx6, DP+HDMI, 12/24 VDC
by MOXA
|
|
|
|
- Box-type computer with fanless design
- Intel® Core™ 5-120U
- Memory: 8 GB
- Storage Slots: 1 x Cfast, 1 x M.2 M-key
- Compact size to fit most field applications
- Dual storage with a removable cover design for easy maintenance
- -30 to 70°C operating temperature range
** OS not included **
|
|
|

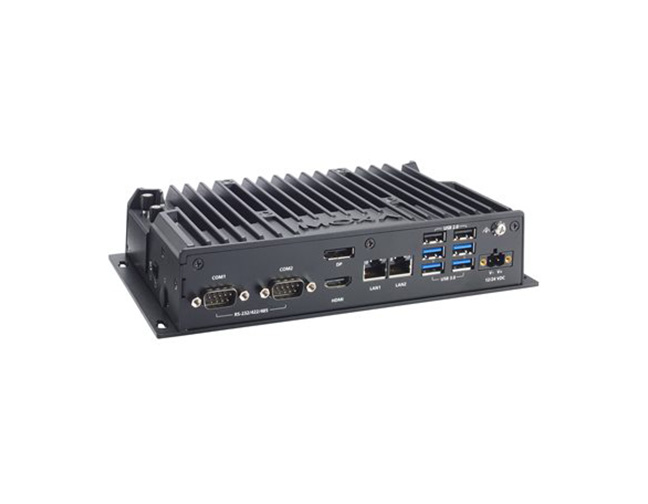

Moxa BXP-C101-C5-S1-T
The BXP-C101 Series computer models are built around an Intel® Core™ 3-100U, 5-120U, or 7-150U processor. The computers come with a rich set of interface options including either two serial ports (S1 models) or five digital inputs and six digital outputs (S2 models), two gigabit Ethernet ports, six USB ports, one HDMI port, and one DisplayPort. A dual-storage design that includes CFast and M.2 slots enables easy storage expansion. The BXP-C101 computers have a compact design and come with wall-mounting kit attached. The computers are fanless enabling them to withstand a temperature range of -30 to 70°C and making them a good fit for harsh operating environments. The built-in TPM 2.0 module secures the platform from unauthorized access. The BXP-C101 is an intelligent computing solution that perfectly fulfills both OT and IT requirements for various industrial environments.
Specifications
- CPU: Intel® Core™ 5-100U processor
- System Memory Slot: SODIMM DDR4 Slots x 1, up to 32 GB max.
- System Memory Pre-installed: 8 GB DDR4
- Storage Slots: 1 x Cfast, 1 x M.2 M-key
- LAN ports: 2
- Serial ports: 2
- USB Ports:
- Video outputs:
- 1 x HDMI 2.1
- 1 x DisplayPort
- Power Input: 12/24 VDC
- Expansion Slots: mPCIe slots x 1
- Supported OS:
- Windows images and drivers supported:
- Windows 11 Professional 64-bit
- Windows 11 IoT Enterprise LTSC 2024 64-bit
- Windows 10 IoT Enterprise LTSC 2021 64-bit
- Linux drivers supported: Debian 13, Ubuntu 24.04 LTS, RHEL 9
- Graphics Controller: Intel® UHD Graphics
- SIM format: Nano
- Number of SIMs: 1
- Buttons: power button
- TPM: TPM v2.0
- Magnetic isolation protection: 1.5 kV (built-in)
- Bitrate: 50 bps to 115.2 kbps
- Connector: DB9 male
- Data bits: 5, 6, 7, 8
- Parity: none, even, odd, space, mark
- Stop bits: 1, 1.5, 2
- Housing: metal
- IP Rating: IP20
- Installation:
- Wall mounting (standard)
- DIN-rail mounting (with optional kit)
- Operating temperature: -30 to 70°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5~95% (non-condensing)
|
|
|
|
