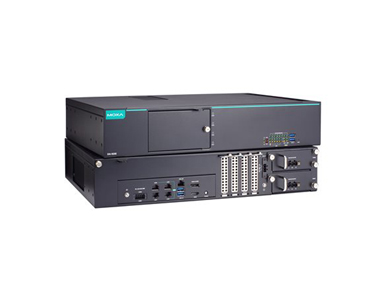

Moxa DA-920E-X08-HH - IEC 61850-3, 2U, Intel Xeon D-1834, Dual 100 to 240 VAC/VDC, -25 to 55C w/o RAM/SSD/OS
by MOXA

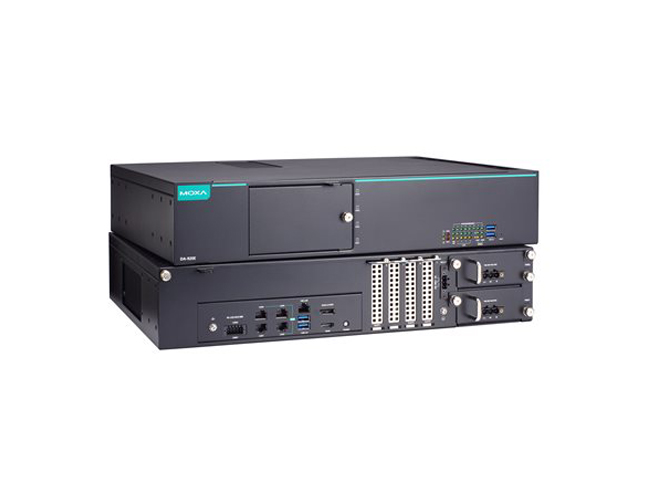

Moxa DA-920E-X08-HH

DA-920E is a 2U rackmount fanless industrial server built for harsh environments, virtualized protection, automation, and control (vPAC), and substation automation. The computer is compliant with IEC 61850-3, IEEE 1613, and IEC 60255 requirements. Powered by Intel® Xeon® D processor with up to 256 GB ECC memory, the DA-920E delivers high-performance, deterministic reliability, and is optimized for virtualization applications. With single or dual wide-range PSUs and RAID storage, the DA-920E ensures reliable computing in modern substations.

Specifications

• CPU: Intel Xeon D-1834 (8 cores)
• System memory slot: RDIMM/UDIMM DDR4 Slots x 4 (256 GB max.)
• DRAM: 256 GB max. (RDIMM/UDIMM x 4 each supporting up to 2666 MHz and 64 GB max. per module)
• Graphic Controller: AST2600 (DisplayPort) SM768 (HDMI)
• Storage slot: M.2 M-Key 2280 sockets x 1 (NVMe PCIe Gen 3 x2) 2.5-inch SSD slots x4 (SATA)
• Ethernet Port: auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2, 1 shared LAN and 1 dedicated management LAN, out-of-band management support. Auto-sensing 10/100/1000/2500 Mbps ports (RJ45 connector) x 3
• Serial ports: RS-232/422/485 ports x 2 (software-selectable, terminal-block connector)
• Expansion slots:
  • PCIe x16 slots x 1 (Gen 4, low-profile)
  • PCIe x8 slots x 1 (Gen 3, low-profile)
  • PCIe x4 slots x 1 (Gen 3, low-profile)
• USB 3.0: USB 3.2 hosts x 4 (Gen 1, font 2, rear 2)
• Secure Boot: UEFI
• TPM: TPM v2.0
• Serial Interface:
  • Bitrate: 50 bps to 921.6 kbps
  • Connector: terminal block
  • Isolation: 2kV
  • Serial Standards: RS-232/422/485-2W/485-4W
• Relay output: 1
• Housing: metal
• IP Rating: IP20
• Installation: 19-inch rack mounting
• Operating temperature: -25~55ºC
