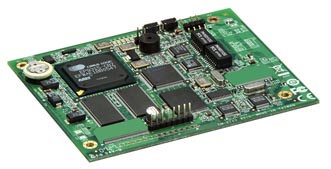

Moxa EM-2260-CE - RISC-based Ready-to-Run Embedded Core Module with VGA, 4 Serial Ports, Dual LANs, DIO, WinCE 6.0
by MOXA
|
|
|
|
- Cirrus Logic EP9315 ARM9 CPU, 200 MHz
- 128 MB RAM on-board, 32 MB flash disk
- Graphical interface for external VGA output connection
- 2 KV optically isolated RS-232/422/485 serial ports
- Dual 10/100 Mbps Ethernet for network redundancy
- 8 DI and 8 DO channels
- Supports CompactFlash and USB 2.0 hosts
- Ready-to-run WinCE 6.0 or Linux platform
Full-function development kit for quick evaluation and application development
|
|
|
The EM-2260 embedded module features 4 RS-232/422/485 serial ports, dual Ethernet ports, an EIDE interface for designing an external storage connection, such as a CompactFlash socket, and USB port signals. The module has a compact design that is easily integrated with a variety of industrial applications, including gas stations, vending machines, and ticketing machines, and offers a powerful serial communication capability for better system integration. Programmers will find the pre-installed, ready-to-run Windows CE 6.0 platform and full-function development kit a great benefit to developing software and building reliable communication bases for industrial automation applications.
The EM-2260 embedded module uses the Cirrus Logic EP9315 ARM9, 32-bit, 200 MHz RISC CPU. This powerful computing engine supports several useful communication functions, but will not generate a lot of heat. The built-in 32 MB NOR Flash ROM and 128 MB SDRAM give you enough memory to run your application software directly on the EM-2260.
With its built-in VGA output interface, the EM-2260 is suitable for use with SCADA systems in industrial applications, such as manufacturing automation, production line process monitoring, and mining automation, that require VGA and HMI features.
The EM-2260 comes pre-installed with either the open standard Linux OS, or the more common WinCE OS. Software written for a desktop PC can be easily ported to the EM-2260 platform by using a common compiler, without needing to modify the code, and the software you develop for your own applications can be stored in the EM-2260’s flash memory.
The EM-2260 Development Kit provides users with a handy tool for first time evaluation to test the functionality of the embedded core module. It has several peripherals built-in, including RS-232/422/485 ports and digital input and output, making it suitable for developing a variety of industrial applications.
| Hardware Specifications |
| • Computer |
| CPU |
Cirrus Logik EP9315 ARM9 CPU, 200 MHz |
| OS (pre-installed) |
Windows CE 6.0 or Linux |
| DRAM |
128 MB onboard |
| Flash |
32 MB |
| • Storage |
| Storage Expansion |
EIDE interface for connecting up to 2 external devices |
| • Display |
| Graphics Controller |
EP9315 internal graphics accelerator engine with TTL graphical signal support |
| Display Memory |
Dynamic video memory (shares system memory) |
| Resolution |
1024 x 768, 8 bits |
| • Ethernet Interface |
| LAN |
2 auto-sensing 10/100 Mbps ports (RJ45) |
| Magnetic Isolation Protection |
1.5 kV built-in |
| • Serial Interface |
| Serial Standards |
4 RS-232/422/485 ports, software-selectable |
| Console Port |
RS-232 (TxD, RxD, GND), 4-pin pin header output (115200, n, 8, 1) |
| • Serial Communication Parameters |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485 |
| Baudrate |
50 bps to 921.6 kbps (supports non-standard baudrates; see user’s manual for details) |
| • Serial Signals |
| TTL |
TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND |
| RS-232 |
TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND |
| RS-422 |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w |
Data+, Data-, GND |
| • Digital Input |
| Input Channels |
8 |
| Input Voltage |
3.3 V, CMOS level |
| • Digital Output |
| Output Channels |
8 |
| Digital Output Levels |
3.3 V, CMOS level |
| • Switches and Buttons |
| Reset Button |
Supports “Reset to Factory Default” |
| • Physical Characteristics |
| Weight |
70 g |
| Dimensions |
106 x 87 mm (4.17 x 3.43 in) |
| • Environmental Limits |
| Operating Temperature |
-10 to 60°C (14 to 140°F) |
| Storage Temperature |
-20 to 80°C (-4 to 176°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| • Power Requirements |
| Input Voltage |
12 VDC |
| Power Consumption |
5.8 W (480 mA @ 12 VDC) |
| • Standards and Certifications |
| EMC |
EN 55022 Class A, EN 61000-3-2 Class A, EN 61000-3-3, EN 55024, FCC Part 15 Subpart B Class A |
| Green Product |
RoHS, CRoHS, WEEE |
| • Reliability |
| Alert Tools |
Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger |
Built-in WDT (watchdog timer) |
| MTBF (meantime between failures) |
131,832 hrs |
| • Warranty |
| Warranty Period |
5 years |
| Software Specifications |
| • Linux |
| OS |
Linux 2.6.23 |
| File System |
JFFS2, NFS, Ext2, Ext3 |
| Internet Protocol Suite |
TCP, UDP, IPv4, SNMPv1/v2c/v3, ICMP, ARP, HTTP, CHAP, PAP, DHCP, NTP, NFS, Telnet, FTP, TFTP, PPP, PPPoE |
| Internet Security |
OpenVPN, iptables firewall |
| Web Server (Apache) |
Allows you to create and manage web sites |
| Terminal Server (SSH) |
Provides secure encrypted communications between two un-trusted hosts over an insecure network |
| Dial-up Networking |
PPP Daemon for Linux that allows Unix machines to connect to the Internet through dialup lines, using the PPP protocol, as a PPP server or client. Works with ‘chat’, ‘dip’, and ‘diald’, among (many) others. Supports IP, TCP, UDP, and (for Linux) IPX (Novell). |
| Watchdog |
Features a hardware function to trigger system reset in a user specified time interval (Moxa API provided) |
| Application Development Software |
• Moxa API Library (Watchdog timer, Moxa serial I/O control, Moxa DI/DO API)
• GNU C/C++ cross-compiler
• GNU C library
• GDB source-level debugging server |
| Software Protection |
Encryption tool for user executable files (based on patented Moxa technology) |
| • Windows Embedded CE 6.0 |
| OS |
Windows Embedded CE 6.0 |
| File System |
FAT (for on-board flash) |
| Internet Protocol Suite |
TCP, UDP, IPv4, SNMPv2, ICMP, IGMP, ARP, HTTP, CHAP, PAP, SSL, DHCP, SNTP, SMTP, Telnet, FTP, PPP |
| Web Server (WinCE IIS) |
Supports ASP, ISAPI Secure Socket Layer (SSL 2/3) and Transport Layer Security (TLS/SSL 3.1) public key-based protocols, and Web Administration ISAPI Extensions |
| Dial-up Networking |
Supports RAS client API and PPP, Extensible Authentication Protocol (EAP), and RAS scripting |
| File Server |
Enables remote clients to access files and other resources over the network |
| Watchdog |
Features a hardware function to trigger system reset in a user specified time interval. (Moxa API provided) |
| Application Development Software |
• Moxa WinCE 6.0 SDK
• Moxa API Library
• C Libraries and Run-times
• Component Services (COM and DCOM)
• Microsoft® .NET Compact Framework 2.0
• XML, including DOM, XQL, XPATH, XSLT, SAX, SAX2
• SOAP Toolkit Client
• Winsock 2.2 |
|
|
|
|
|
|
