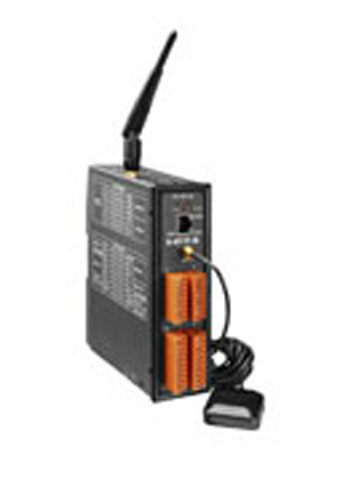

ICP DAS G-4513P-3GWA - GPRS / GSM / GPS Built in Embedded Controller with display, Quad Band, metal case
by ICP DAS
|
|
|
|
3G WCDMA Power Saving PAC with Solar 10/100 Base-TX compatible ethernet controller charger. Embedded MiniOS7, anti-virus. Supports GSM 850 / 900 / 1800 / 1900 MHzWCDMA 850 / 900 / 1900 / 2100 MHz, TCP, UCP client connections over GPRS. GPS with SD Card. Power Saving Feature. Operating temperature range is -15°C ~ +55°C (-59°F ~ +131°F).
|
|
|
The G-4513P-3GWA model is a M2M (Machine to Machine) Power Saving PAC with a cellular transceiver and a solar charger. It can be used in hydrologic monitoring or mudslide monitoring system. With optional GPS model, the G-4513P-3GWA can also be a GPS tracking system for vehicle management or maritime system. The features of G-4513P-3GWA model are the following: Solar charger, 3G module, Ethernet interface, optional GPS module, 3 digital inputs, 3 digital outputs, 8 analog inputs, 1 relay output.
- Embedded MiniOS7, anti-virus
- Support GSM 850 / 900 / 1800 / 1900 MHz
- Support WCDMA 850 / 900 / 1900 / 2100 MHz
- Solar charger for Lead acid battery
- 10/100 Base-TX compatible Ethernet controller
- COM port: COM1 (5-wire RS232), COM2 (RS-485)
- I/O: 3 DI, 3 DO, 8 AI, 1 relay DO
- Support SD card.
- Built-in RTC, NVRAM, EEPROM
- 128*64 dots LCM display (option)
- GPS : 32 channels with All-In-View tracking (option)
- Support TCP ,UDP client connection over GPRS
- High reliability in harsh environments
- DIN-Rail mountable
Specifications
| Item |
|
| CPU |
80 MHz internal microprocessor |
| SRAM/Flash |
512K/512K , real time clock, watchdog timer |
| NVRAM |
31 bytes, battery backup, data valid up to 10 years |
| EEPROM |
16 KB, retention > 40 years. 1,000,000 erase/write cycles |
| Comm. Interface |
| COM ports |
COM1:5-wire RS-232; COM2: RS-485; COM3:3-wire RS-232 |
| Ethernet |
10/100 Base-TX Ethernet controller |
| GPRS Interface |
| Frequency Band |
Quad-band 850/900/1800/1900 MHz |
| GPRS connectivity |
GPRS class 10/8; GPRS station class B |
| SMS |
MT, MO, CB, Text and PDU mode |
| GPS Interface |
| Support Channels |
32 |
| Sensitivity |
Tracking = up to -159 dBm (with external LNA)
Cold start = up to -146 dBm (with external LNA) |
| Acquisition Time |
Hot start (Open Sky) = 2 s(typical)
Cold start (Open Sky) = 36 s(typical) |
| Protocol Support |
NMEA 0183 version 3.01 |
| LED Indicators |
| System |
Red |
| 3G |
Yellow |
| GPS |
Green |
| Charging / Fault |
Green/Red |
| Power |
| Protection |
Power reverse polarity protection |
| Frame Ground Protection |
ESD, Surge, EFT, Hi-Pot |
| Power Requirement |
+10 VDC ~ +30 VDC , (Max. Voltage of Solar Panel must less +30V) |
| Power Consumption |
Sleep: < 10 mA @ 12VDC; Sleep (With LCD): < 11 mA @ 12VDC; Idle: 77 mA @ 24 VDC; Data Link: 150 ~ 400 mA (peak) @ 24 VDC |
| LCD Interface |
| System |
Effective |
- |
| Module Dimension |
- |
| GPRS |
- |
| Life Time Expectancy |
- |
| Mechanical |
| Casing |
Metal |
| Dimensions |
47 mm x 142 mm x 168 mm (W x L x H) |
| Installation |
DIN-Rall and Wall mount |
| Environment |
| Operating Temperature |
-20°C ~ +70°C (-4°F ~ +158°F) |
| Storage Temperature |
-40°C ~ +80°C (-40°F ~ +176°F) |
| Humidity |
5~90% RH, non-condensing |
I/O Specifications
| Digital Output |
| Output Channel |
3 |
| Output Type |
Open Collector (Sink/NPN) |
| Load Voltage |
+30 VDC max. |
| Load Current |
100 mA max. |
| Isolated Voltage |
Non-isolated |
| Digital Input |
| Input Channel |
3 |
| Input Type |
Source (Dry Type), Common Ground |
| Off Voltage Level |
+1 V max. |
| On Voltage Level |
+3.5 ~ +30 V |
| Isolated Voltage |
Non-isolated |
| Analog Input |
| Input Channel |
8 |
| Resolution |
12 - bit |
| Input Range/Type |
0 ~ 20 mA |
| Sample Rate |
1 KHz max. (Read one channel) |
| Relay |
| Output Channel |
1 |
| Type |
Form C |
| Input Range |
2A@30 Vdc ; 0.25 A @250 Vac |
| Mechanical Endurance |
typ. 10^8 operations |
|
|
|
|
