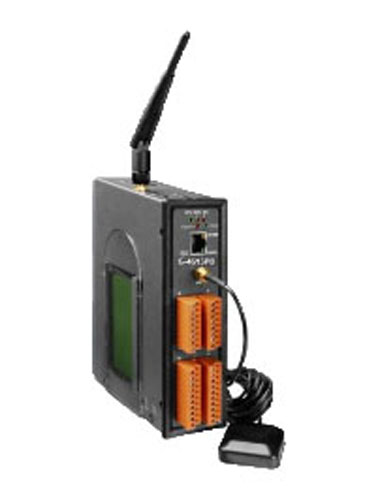

ICP DAS G-4513PD-3GWA - GPRS / GSM / GPS Built in Embedded Controller with display, Quad Band, metal case
by ICP DAS
|
|
|
|
3G GSM/WCDMA Power Saving Programmable Automation Controller (PAC) with solar charger, LCD display, and built-in real time clock. Supports GSM 850/900/1800/1900 MHz and WCDMA 850/900/1900/2100 MHz. Communicates over RS-232, RS-485 and Ethernet. Support TCP ,UDP client connection over GPRS. Has a DIN Rail mount. Operating temperature range is -15°C ~ +55°C (-59°F ~ +131°F).
| Mfg SKU # : | G-4513PD-3GWA |
|
|
|
The G-4513PD-3GWA is a M2M power-saving Programmable Automation Controller (PAC) with a solar charger. It can be used in hydrologic monitoring or mudslide monitoring system. It is also available for use in a vehicle GPS tracking system. The features of G-4513PD-3GWA model are the following: Solar charger, 3G module, Ethernet interface, optional GPS module, 3 digital inputs, 3 digital outputs, 8 analog inputs, 1 relay output.
- Embedded MiniOS7 operating system with anti-virus
- Support GSM 850/900/1800/1900 MHz
- Support WCDMA 850/900/1900/2100 MHz
- Solar charger for Lead acid battery
- 10/100 Base-TX compatible Ethernet controller
- COM port: COM1 (5-wire RS232), COM2 (RS-485)
- I/O: 3 Digital Input, 3 Digital Output, 8 Analog Input, 1 relay Digital Output
- Support SD card
- Built-in Real Time Clock, NVRAM, EEPROM
- 128*64 dots LCM display
- GPS : 32 channels with All-In-View tracking (option)
- Support Modbus TCP and UDP client connection over GPRS
- Very reliable in harsh environments
- DIN-Rail mountable
Specifications
| Item |
|
| CPU |
80 MHz internal microprocessor |
| SRAM/Flash |
512K/512K , real time clock, watchdog timer |
| NVRAM |
31 bytes, battery backup, data valid up to 10 years |
| EEPROM |
16 KB, retention > 40 years. 1,000,000 erase/write cycles |
| Comm. Interface |
| COM ports |
COM1:5-wire RS-232; COM2: RS-485; COM3:3-wire RS-232 |
| Ethernet |
10/100 Base-TX Ethernet controller |
| GPRS Interface |
| Frequency Band |
Quad-band 850/900/1800/1900 MHz |
| GPRS connectivity |
GPRS class 10/8; GPRS station class B |
| SMS |
MT, MO, CB, Text and PDU mode |
| GPS Interface |
| Support Channels |
32 |
| Sensitivity |
Tracking = up to -159 dBm (with external LNA)
Cold start = up to -146 dBm (with external LNA) |
| Acquisition Time |
Hot start (Open Sky) = 2 s(typical)
Cold start (Open Sky) = 36 s(typical) |
| Protocol Support |
NMEA 0183 version 3.01 |
| LED Indicators |
| System |
Red |
| 3G |
Yellow |
| GPS |
Green |
| Charging / Fault |
Green/Red |
| Power |
| Protection |
Power reverse polarity protection |
| Frame Ground Protection |
ESD, Surge, EFT, Hi-Pot |
| Power Requirement |
+10 VDC ~ +30 VDC , (Max. Voltage of Solar Panel must less +30V) |
| Power Consumption |
Sleep: < 10 mA @ 12VDC; Sleep (With LCD): < 11 mA @ 12VDC; Idle: 77 mA @ 24 VDC; Data Link: 150 ~ 400 mA (peak) @ 24 VDC |
| LCD Interface |
| System |
Effective |
80.61 mm x 14.37 mm (W x H) |
| Module Dimension |
93 mm x 70 mm x 1.6 mm (W x H x T) |
| GPRS |
Yellow |
| Life Time Expectancy |
100,000 hours under normal operation |
| Mechanical |
| Casing |
Metal |
| Dimensions |
47 mm x 142 mm x 168 mm (W x L x H) |
| Installation |
DIN-Rall and Wall mount |
| Environment |
| Operating Temperature |
-15°C ~ +55°C (5°F ~ +131°F) |
| Storage Temperature |
-20°C ~ +70°C (-4°F ~ +158°F) |
| Humidity |
5~90% RH, non-condensing |
I/O Specifications
| Digital Output |
| Output Channel |
3 |
| Output Type |
Open Collector (Sink/NPN) |
| Load Voltage |
+30 VDC max. |
| Load Current |
100 mA max. |
| Isolated Voltage |
Non-isolated |
| Digital Input |
| Input Channel |
3 |
| Input Type |
Source (Dry Type), Common Ground |
| Off Voltage Level |
+1 V max. |
| On Voltage Level |
+3.5 ~ +30 V |
| Isolated Voltage |
Non-isolated |
| Analog Input |
| Input Channel |
8 |
| Resolution |
12 - bit |
| Input Range/Type |
0 ~ 20 mA |
| Sample Rate |
1 KHz max. (Read one channel) |
| Relay |
| Output Channel |
1 |
| Type |
Form C |
| Input Range |
2A@30 Vdc ; 0.25 A @250 Vac |
| Mechanical Endurance |
typ. 10^8 operations |
|
|
|
|
