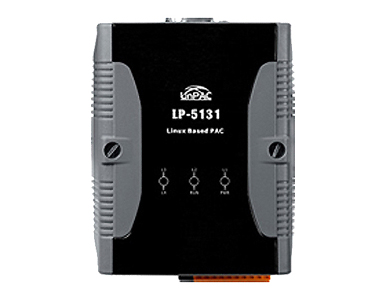

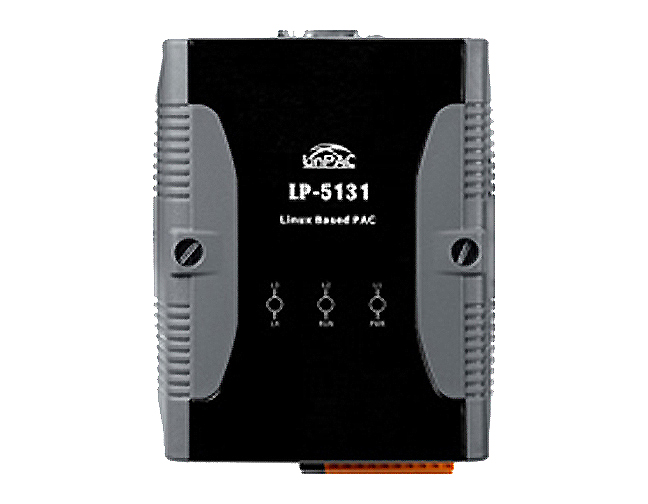

LP-5131-EN - LinPac-5000 with 800 x 600 VGA port
by ICP DAS
|
|
|
|
Linux Controller with 800 × 600 VGA port, LinPAC SDK, microSD card, Audio, Din Rail Mount, USB, Ethernet, RS-232 and RS-485 ports. Supports operating temperatures between -25 ~ +75 °C (-13F ~ 167F).
|
|
|
Features
The LinPAC-5000 is the new generation Linux-based PAC from ICP DAS and is equipped with a PXA270 CPU (520 MHz) running a Linux kernel 2.6.19 operating system, various connectivity (VGA, USB, Ethernet, RS-232/485 and audio ports), contains an optional I/O expansion board that can be used for implementing various I/O functions (e.g., DI, DO, A/D, D/A, Timer/Counter, UART, flash memory, or battery backup SRAM, etc.), together with a wide range of powerful software and development tools.
Main advantage of the LinPAC-5000 is its high quality control system, including its stability, small core size, optional I/O expansion board, support for Web services (Web/FTP/Telnet/SSH server), and multiple development environments (LinPAC SDK for Linux and Windows environment using the GNU C language, JAVA and GUI software), etc., all of which give users the best features of both traditional PLCs and Linux capable PCs, meaning that it is one of the most powerful and flexible embedded control systems available.
Features
- Development Environment - LinPAC SDK
- Built-in Server - Web Server, Ftp Server, SSH Server, UPnP
- Supported Communication - Wireless LAN, PPP over Modem, GPRS, Ethernet, Dual LAN, VxComm, Expansion serial ports, Support USB to Serial Converter --- 7560, 7561, 7563
- Security - Unique Serial Number
- Java - JVM, JIOD(Java I/O Driver)
- Interpreter - Perl, PHP
- Database - MySQL
- GUI - GTK + Library
- Audio - Microphone-In and Earphone-Out
- Other - USB WebCam, RAM Disk, Resolution : 32 bit 800 x 600, OEM LinPAC Boot Logo.
| System Software |
| OS |
Linux kernel 2.6.19 |
| Embedded Service |
Web Server, FTP Server, Telnet Server, SSH Server |
| SDK Provided |
Standard LinPAC SDK for Windows and Linux by GNU C language |
| CPU Module |
| CPU |
PXA270 or compatible (32-bit and 520MHz) |
| SDRAM |
128 MB |
| NVRAM |
31 Byte ( Battery backup , data valid up to 10 years ) |
| Flash |
64 MB |
| EEPROM |
16 KB |
| Data Retention: 40 years; 1,000,000 erase/write cycles |
| Expansion Flash Memory |
microSD socket with one 2GB microSD card (can support 16 GB microSDHC card) |
| RTC (Real Time Clock) |
Provide seconds, minutes, hours, day of week/month, month and year |
| 64-bit Hardware Serial Number |
Yes |
| Dual Watchdog Timer |
Yes |
| LED indicator |
3 Dual-Colors LEDs (PWR, RUN, L1~L4；RUN, L1~L4 for user programmable) |
| Rotary Switch |
Yes (0~9) |
| VGA & Communication Ports |
| VGA |
Yes
800 × 600 |
Ethernet
|
RJ-45 x 1, 10/100 Base-TX
(Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB 1.1 (host) |
2 |
Audio Port
(Microphone-In and Earphone-Out) |
- |
| COM1 |
RS-232 (RxD, TxD and GND); Non-isolated |
| COM2 |
RS-485 (D2+,D2-); 2500 VDC; isolated |
| COM3 |
RS-232 (RxD, TxD and GND); Non-isolated |
| I/O expansion |
| I/O expansion bus |
I/O expansion board optional |
| Mechanical |
| Dimensions(W x L x H) |
91 mm x 132 mm x 52 mm |
| Installation |
DIN-Rail |
| Environmental |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +85 °C |
| Ambient Relative Humidity |
5 ~ 90% RH, non-condensing |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Isolation |
1 kV |
| Consumption |
4.8 W (0.2 A @ 24 VDC) |
|
|
