Advantech UNO-348-ANN1AW - W480, 3*COM, 6*USB, 3*LAN, 1*PCIex16
by Advantech
|
|
|
|
Expandable Embedded Box IPC with 10th Gen Intel® CPU
- Intel® 10th Gen socket type processor with DDR4 memory
- Scalable CPU, RAM selection
- Compact, rugged and fanless design for harsh embedded environment
- Flexible expansion with up to 3 x PCIe/PCI slots, 1 x M.2 (B-key), 1 x mPCIe & 2 x 2.5" SSD
- Optional iDoor expansion
- Remote out-of-band (OOB) power management with Advantech’s iBMC technology
- Built-in TPM2.0 for hardware-based security
|
|
|

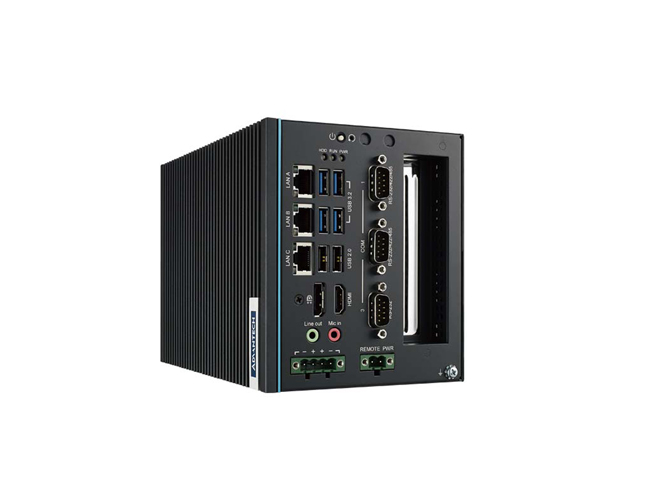

Advantech UNO-348-ANN1AW
UNO-348 is a high-performance, fanless, embedded edge controller equipped with a 10th gen. Intel® Core™ i5 processor with 8/16 GB DDR4 memory and Intel® Intel H420E and W480E PCH chipset. Despite its compact size, UNO-348 offers multiple I/O including 4 x USB 3.2, 2 x USB 2.0, 3 x GigaLAN, 2 x RS-232/422/485, and 1 x RS-232 ports, as well as 1 x Line-out, 1 x Mic-in, 1 x DisplayPort, and 1 x HDMI interfaces. Designed to deliver high-performance computing and maximum flexibility for industrial automation applications, UNO-348 also features 2 x internal HDD/SSD bays, 1 x full-size mPCIe, 1 x M.2 B-key, and up to 3 x PCIe/PCI expansion slots (1 x PCIe x16, 2 x PCI) to support the integration of optional peripherals. UNO-348 is also equipped with Advantech’s iBMC technology to support remote OOB power management to reduce system downtime and operational costs.
|
|
|
|
