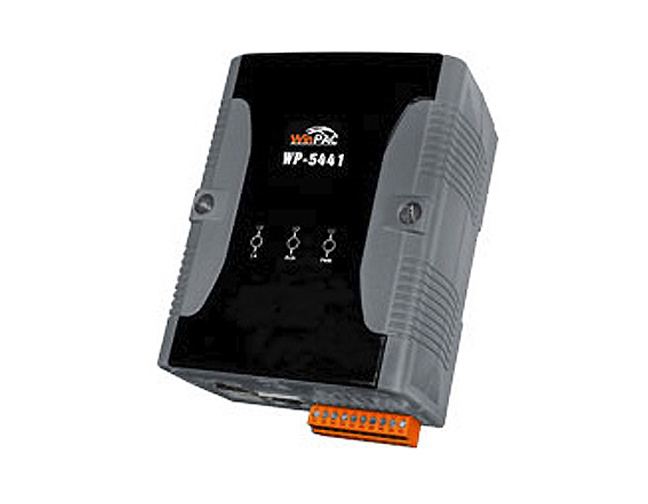

| System Software |
| OS |
Windows CE 5.0 Core |
| .Net Compact Framework |
3.5 |
| Embedded Service |
FTP Server, Web Server |
| Multilanguage Support |
English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| Development Software |
| ISaGRAF Software |
ISaGRAF Ver.3 |
IEC 61131-3 standard |
| Languages |
LD, ST, FBD, SFC, IL & FC
Support Soft-GRAF HMI : XP-8xx7-CE6, XP-8xx7-Atom-CE6, WP-8xx7/5xx7 and VP-2xW7/4xx7 PAC |
| Max. Code Size |
1 MB |
| Scan Time |
3 ~ 15 ms for normal program
15 ~ 50 ms for complex or large program |
| Non-ISaGRAF |
Options: MS eVC++ 4.0 or VS.NET 2005/2008 (VB.NET, C#.NET) |
| CPU Module |
| CPU |
PXA270, 520 MHz |
| SDRAM |
128 MB |
| Flash |
64 MB |
| EEPROM |
16 KB |
| Expansion Flash Memory |
microSD socket with one microSD card (support up to 32 GB) |
| Battery Backup SRAM |
Require one XW608, 512 KB (for retain variables) |
| RTC (Real Time Clock) |
Provide second, minute, hour, date, day of week, month, year |
| 64-bit Hardware Serial Number |
Yes, for Software Copy Protection |
| Dual Watchdog Timers |
Yes |
| LED Indicator |
1 LED for Power and Running
2 LEDs for user programmable |
| Rotary Switch |
Yes (0 ~ 9) |
| VGA & Communication Ports |
| VGA |
Yes ; 640 x 480, 800 x 600 |
| Ethernet |
RJ-45 x 2, 10/100 Base-TX
(Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB 1.1 (client) |
1 |
| USB 1.1 (host) |
1 |
| Audio |
Microphone-In and Earphone-Out |
| COM1 |
RS-232 (RxD, TxD and GND); Non-isolated |
| COM2 |
RS-485 (Data+, Data -); 2500 VDC isolated |
| COM3 |
RS-232 (RxD, TxD and GND); Non-isolated |
| I/O Expansion |
| I/O Expansion Bus |
Yes; to mount one optional XW-Board .
No supporting XW5xx board (i.e. XW506, XW507, XW508, XW509, XW511i, XW514) |
| Mechanical |
| Dimensions (W x L x H) |
91 mm x 132 mm x 52 mm |
| Installation |
DIN-Rail Mounting |
| Environmental |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Ambient Relative Humidity |
10 ~ 90 % RH (non-condensing ) |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Isolation |
1 kV |
| Consumption |
6 W |
| Protocols (Note that certain protocols require optional devices) |
| NET ID |
1 ~ 255, User-assigned by software |
| Modbus TCP/IP Master |
Link to a max. of 100 devices that support the Standard Modbus TCP/IP Slave protocol. Support one or more tGW-700 series gateway (Modbus TCP to Modbus RTU/ASCII) to expand many Modbus RTU / ASCII master ports to connect many Modbus RTU / ASCII slave devices. |
| Modbus RTU/ASCII Master |
Support Multi-port. A max. of 10 ports |
| Modbus RTU Slave |
A max. of 5 ports |
| Modbus TCP/IP Slave |
Two Ethernet ports, LAN1 & LAN2, support total up to 32 connections. If one of the Ethernet port malfunctions, the other one can still be used to connect to the PC/HMI. |
| Web HMI Protocol |
Ethernet Ports for connecting a PC running Internet Explorer. |
| User-defined Protocol |
Custom protocols can be applied at COM1 ~ COM3 using Serial communication function blocks. |
I-7000 & I-87K RS-485
Remote I/O |
COM2 supports I-7000 I/O modules, I-87K base + I-87K Serial I/O boards, or RU-87Pn + I-87K High Profile I/O boards as remote I/O. A max. of 255 I-7000/87K remote I/O modules can connect to one PAC. |
| M-7000 Series Modbus I/O |
A max. of 10 RS-485 ports can support M-7000 I/O. Each port can connect up to 32 M-7000 Modules. |
| Modbus TCP/IP I/O |
LAN2 supports ICP DAS Ethernet I/O: I-8KE4-MTCP and I-8KE8-MTCP. If LAN2 malfunctions, it will automatically switch to LAN1 to continuously work. (The IP address for LAN1 and LAN2 should be set in the same IP domain) |
| Send Email |
Provide functions to send email with a single attached file via the Ethernet port. |
| Ebus |
LAN2 can be used to exchange data between ICP DAS ISaGRAF Ethernet PACs via the Ethernet port. |
UDP Server & UDP Client :
Exchange Message & Auto-report |
LAN1 or LAN2 supports the UDP Server and UDP Client protocols allowing messages to be sent/received to/from a PC/HMI or other device. For example, data can be automatically reported to the InduSoft’s RXTX driver. |
TCP Client :
Exchange Message & Auto-report |
LAN1 or LAN2 supports the TCP Client protocol allowing messages to be sent/received to/from a PC/HMI or other device that supports the TCP server protocol. Ex: automatically report data to InduSoft's RXTX driver, or to connect a location camera. |
| Soft-GRAF HMI |
Support the Soft-GRAF HMI. User can use the Soft-GRAF Studio on the PC to design the HMI screen and then download it to the PAC to display the HMI on the PAC. |
| SQL Client |
Support for the SQL Client function that allows data to be written (or read from) a Microsoft SQL Server (2000 SP3, 2005, 2008). |
| CAN/CANopen |
COM1, COM3 can connect to one I-7530 (converter: RS-232 to CAN) to support CAN/CANopen devices and sensors. One WP-5xx7 supports a max. of 10 RS-232 ports to connect a max. of 10 I-7530. |
| FTP Client |
Enable the FTP Client to upload files from the PAC to a remote FTP server on a PC.
The Soft-GRAF g_Alarm and g_Logger1 HMI objects also support FTP Client. |
| * ICP DAS recommends using NS-205/NS-208 or RS-405/408 (Ring Switch) Industrial Ethernet Switches. |
