ICP DAS WP-8149 - 1 Slot Base Windows CE Indusoft 300 tags Controller
by ICP DAS
|
|
|
|
Windows CE Embedded PAC with InduSoft inside, communicates over RS-485, RS-232, Modbus RTU, Modbus TCP and Ethernet. Supports operating temperatures from -25°C ~ +75°C
|
|
|

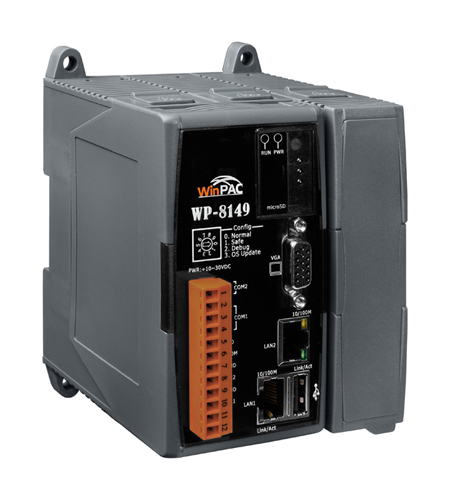

WinPAC-8149 is the new generation WinCE based InduSoft PAC (Programmable Automation Controller) from ICP DAS. It equips a PXA270 CPU (520MHz) running Windows CE.NET 5.0 Operating System, variant connectivity (10/100 Base-TX dual Ethernet Ports, 2 or 4 RS-232/485 ports, 1 VGA, 1 USB port) and 1 slot for high performance Parallel-type I/O modules (High Profile I-8K series) and Serial-type I/O modules (Hot-Swap High Profile I-87K I/O modules). Comes with 128 MB SRAM, 512 KB dual battery backup SRAM, 96 MB FLASH & a 1 GB microSD (supports up to 16GB microSD). For redundant supporting: dual Watchdog Timers, redundant power inputs, dual battery backup SRAM, dual Ethernet Ports. WinPAC-8x47 Series will be a great upgrade for your system!
InduSoft Web Studio General Features
IWS applications run on microcomputers connected in real-time to machines or processors through WinPAC programmable controllers, remote I/O devices, and other data acquisition equipment. These applications consist of animated operator-interface screens, rollable I/O devices, an application tags database, and optional modules such as alarm monitors, trend charts, recipes, schedulers, and a security system.
InduSoft Integrated with WinPAC-8000
- Easy steps to accomplish your system.
- Communication drivers are provided by ICP DAS.
- Monitor and control system from both sites (WinPAC) and control room (PC)
Communication Protocol
- DCON Protocol for ICP DAS embedded controllers or I/O modules is provided.
- Supports more than 200 Communication drivers such as Siemens, Omron and so forth.
- InduSoft supports Modbus / OPC / DDE / TCP/IP / SNMP Client and Server.
Access Database Easily
- Supports third-party SQL relational databases such as SQL Server, MS Access, Excel, Oracle ...etc.
- Database connectivety from any platform supported by IWS or CEView, through the unique Studio Database Gateway.
- Supports Secondary Database in the modes "Redundancy" or "Store and Forward" to increase the reliability of the system and avoid loss of data.
| System Software |
| OS |
Windows CE 5.0 |
| .Net Compact Framework |
2.0 |
| Embedded Service |
FTP Server, Web Server |
| Development Software |
| InduSoft Software |
InduSoft Web Studio v6.1 Service Pack 3 |
| Non-InduSoft |
Options: Microsoft EVC++4.0 or VS.NET 2003/2005/2008 (VB.NET 2003/2005/2008, C#.NET 2003/2005/2008) |
| Web Service |
| Web HMI |
Support Web HMI function, PC running Internet Explorer can access to the WP-8x49 via Local Ethernet or Internet or dial Modem, monitoring and control. |
| Security |
Web HMI supports three levels user name and password protection |
| Power Supply |
| Input Range |
+10 ~ +30 VDC (unregulated) |
| Isolation |
1 kV |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Protection |
WP-8149: 1.0 A, 5 V supply to CPU and backplane; 0.6 A, 5 V supply to I/O expansion slots, total 8 W |
| Consumption |
WP-8149: 7.3 W (0.3 A @ 24 V); |
| General Environment |
| Temperature |
Operating: -25 °C ~ +75 °C ( -13 ° F ~ +167 ° F) ,
Storage : -30 °C ~ +85 °C ( -40 ° F ~ +176 ° F) |
| Humidity |
5 % ~ 95 % RH (non-condensed) |
| System |
| CPU |
CPU: PXA270, 32-bit and 520 MHz or compatible |
| Dual Watchdog Timer |
Watchdog: Dual Watchdog Timer |
| RTC (Real Time Clock) |
Gives hour, minute, sec, day of week, day of month, month & year, valid up from 1980 ~ 2079 |
| SRAM |
128 MB |
| Dual Battery Backup SRAM |
512 KB (for 5 years data retain while power off) |
| FLASH |
96 MB (64 MB for OS image, 31 MB for built-in Flash disk, 1 MB for registry) |
| Expansion Flash Memory |
microSD socket with 1 GB flash card |
| EEPROM |
16 KB, Data retention: 40 years. 1,000,000 erase/write cycles |
| I/O Slots |
WP-8149: 1 slot (slot0); WP-8449: 4 slots (slot0 ~ slot3); WP-8849: 8 slots (slot0 ~ slot7);
Accept High Profile I-8K Parallel & High Profile I-87K Serial I/O boards
I/O Module Hot Swap Ability: for High Profile I-87K only |
| Rotary Switch |
Yes (0~9) |
| DIP Switch |
WP-8449 & WP-8849: Yes, 8 bits DIP Switch; WP-8149 : no DIP Switch |
| LED, NET ID |
1 programmable LED indicator. NET ID: From 1 ~ 255, set by software |
| Unique Serial Number |
Yes,64-bit hardware unique serial number |
| Serial Ports |
| VGA Port |
1 VGA port (800 x 600 resolution) |
| USB Port |
one USB 1.1 Host ports for USB mouse, keyboard or USB drive |
| COM0 |
Internal communication with the I-87K High Profile modules in slots |
| COM1 |
RS-232 (RxD, TxD, and GND); Non-isolation; Speed: 115200 bps max. |
| COM2 |
RS-485 (D2+, D2-; self-tuner ASIC inside); 2500 VDC isolation for 1 slot controller and 3000 VDCisolation for 4/8 slots controller; Speed: 115200 bps max. |
| COM3 |
RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232,
DATA+ and DATA- for RS-485); Non-isolation;
Speed: 115200 bps max. (WP-8149 has no COM3 & COM4.) |
| COM4 |
RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolation; Speed: 115200 bps max. (WP-8149 has no COM3 & COM4.) |
| Dual Ethernet Ports |
2 Ethernet Ports: LAN1 & LAN2, 10/100 Base-TX Ethernet Controller
(Auto-negotiating, Auto MDI/MDI-X, LED indicator)
Please use NS-205/NS-208 Industrial Ethernet Switch. |
|
|
|
|
