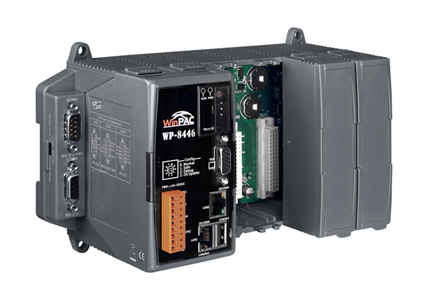

ICP DAS WP-8446 - 4 slot base, Indusoft 300 tags and ISaGRAF Windows CE Controller
by ICP DAS
|
|
|
|
Windows CE.NET 5.0 based Programmable Automation Controller with InduSoft Web Studio and ISaGRAF
|
|
|
ICP DAS WinPAC-8x46 Series (WP-8146/8446/8846) is the new generation WinCE based PAC (Programmable Automation Controller). It features the powerful InduSoft Web Studio and ISaGRAF. InduSoft is a powerful integrated collection of e-automation development tool that includes all the building blocks needed to develop Human Machine Interface (HMI) and Super-visory Control and Data Acquisition (SCADA) systems. ISaGRAF is a PLC-like software and supports all five IEC61131-3 languages (LD, ST, FBD, SFC, and FC). WinPAC-8x46 equips a PXA270 CPU (520MHz) running a Windows CE.NET 5.0 Operating System, variant connectivity (10/100 Base-TX dual Ethernet Ports, 2 or 4 RS-232/485 ports, 1 VGA, 1 USB port) and 1/4/8 slots for high performance Parallel-type I/O modules (High Profile I-8K series) and Serial-type I/O modules (Hot-Swap High Profile I-87K I/O modules). 128 MB SRAM, 512 KB dual battery backup SRAM, 96 MB FLASH & 16 GB microSD are included. For redundant support: dual Watchdog Timers, redundant power inputs, dual battery backup SRAM, and dual Ethernet Ports are provided. WinPAC-8x47 Series will definately upgrade your system!
| System Software |
OS |
Windows CE 5.0 |
.Net Compact Framework |
2.0 |
Embedded Service |
FTP Server, Web Server |
| Development Software |
| InduSoft Software |
InduSoft Web Studio v6.1 Service Pack 3 |
| ISaGRAF Software |
ISaGRAF Version 3 : IEC 61131-3 standard. Languages: LD, ST, FBD, SFC, IL & FC |
| Others |
Options: Microsoft EVC++4.0 or VS.NET 2003/2005/2008 (VB.NET 2003/2005/2008, C#.NET 2003/2005/2008) |
| Web Service |
| Web HMI |
Support Web HMI function, PC running Internet Explorer can access to the WP-8x46 via Local Ethernet or Internet or dial Modem, monitoring and control. |
| Security |
Web HMI supports three levels user name and password protection |
| Power Supply |
| Input Range |
+10 ~ +30 VDC (unregulated) |
| Isolation |
1 kV |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Protection |
WP-8446: 1.1 A, 5 V supply to CPU and backplane; 4.9 A, 5 V supply to I/O expansion slots, total 30 W
|
| Consumption |
WP-8446: 9.1 W (0.38 A @ 24 V); |
| General Environment |
| Temperature |
Operating: -25 °C ~ +75 °C ( -13 ° F ~ +167 ° F) ,
Storage : -30 °C ~ +85 °C ( -40 ° F ~ +176 ° F) |
| Humidity |
5 % ~ 95 % RH (non-condensed) |
| System |
| CPU |
CPU: PXA270, 32-bit and 520 MHz or compatible |
| Dual Watchdog Timer |
Watchdog: Dual Watchdog Timer |
| RTC (Real Time Clock) |
Gives hour, minute, sec, day of week, day of month, month & year, valid up from 1980 ~ 2079 |
| SRAM |
128 MB |
Dual Battery Backup SRAM |
512 KB (for 5 years data retain while power off) |
| FLASH |
96 MB (64 MB for OS image, 31 MB for built-in Flash disk, 1 MB for registry) |
Expansion Flash Memory |
microSD socket with 1 GB flash card. Supports up to 16GB. |
| EEPROM |
16 KB, Data retention: 40 years. 1,000,000 erase/write cycles |
| I/O Slots |
WP-8146: 1 slot (slot0); WP-8446: 4 slots (slot0 ~ slot3); WP-8846: 8 slots (slot0 ~ slot7);
Accept High Profile I-8K Parallel & High Profile I-87K Serial I/O boards
I/O Module Hot Swap Ability: for High Profile I-87K only |
| Rotary Switch |
Yes (0~9) |
| DIP Switch |
WP-8446 & WP-8846: Yes, 8 bits DIP Switch; WP-8146 : no DIP Switch |
| LED, NET ID |
1 programmable LED indicator. NET ID: From 1 ~ 255, set by software |
| Unique Serial Number |
Yes,64-bit hardware unique serial number |
| Serial Ports |
| VGA Port |
1 VGA port (800 x 600 resolution) |
| USB Port |
one USB 1.1 Host ports for USB mouse, keyboard or USB drive |
COM0 |
Internal communication with the I-87K High Profile modules in slots |
| COM1 |
RS-232 (RxD, TxD, and GND); Non-isolation; Speed: 115200 bps max. |
| COM2 |
RS-485 (D2+, D2-; self-tuner ASIC inside); 2500 VDC isolation for 1 slot controller and 3000 VDC isolation for 4/8 slots controller; Speed: 115200 bps max. |
| COM3 |
RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232,
DATA+ and DATA- for RS-485); Non-isolation;
Speed: 115200 bps max. (WP-8149 has no COM3 & COM4.) |
| COM4 |
RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolation; Speed: 115200 bps max. (WP-8149 has no COM3 & COM4.) |
Dual Ethernet Ports |
2 Ethernet Ports: LAN1 & LAN2, 10/100 Base-TX Ethernet Controller
(Auto-negotiating, Auto MDI/MDI-X, LED indicator)
Please use NS-205/NS-208 Industrial Ethernet Switch. |
|
|
|
|
