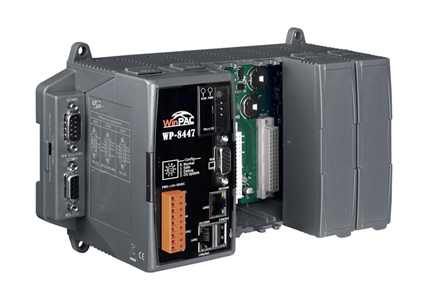

ICP DAS WP-8447 - 4 slot base, ISaGRAF Windows CE controller
by ICP DAS

Name: ICP DAS WP-8447 - 4 slot base, ISaGRAF Windows CE controller
Brand: iComTech
SKU: WP-8447
Price: 2058.0 USD

Write a review

Ethernet ISaGRAF Programmable Automation Controller with 4 I/O slots (Dual-LAN: 10/100 Mbps) and Windows CE.NET 5.0

Mfg SKU # :

WP-8447

List Price :

$2,099.00

Our Price :

$2,058.00

Description
Specification
Datasheet

WinPAC-8x47 Series (WP-8147/8447/8847) is the new generation WinCE based ISaGRAF PAC (Programmable Automation Controller) of ICP DAS. It equips a PXA270 CPU (520 MHz) running Windows CE.NET 5.0 Operating System, variant connectivity (10/100 Base-TX dual Ethernet Ports, 2 or 4 RS-232/485 ports, 1 VGA, 1 USB port) and 1/4/8 slots for high performance Parallel-type I/O modules (High Profile I-8K series) and Serial-type I/O modules (Hot-Swap High Profile I-87K I/O modules). Memories come with 128 MB SRAM, 512 KB dual battery backup SRAM, 96 MB FLASH and 1 GB microSD. For redundant supporting: Dual Watchdog Timers, redundant power inputs, dual battery backup SRAM, dual Ethernet Ports. WinPAC-8x47 Series will upgrade your system!

System Software
OS		Windows CE 5.0
.Net Compact Framework		2.0
Embedded Service		FTP Server, Web Server
Development Software
ISaGRAF Software		ISaGRAF Version 3 : IEC 61131-3 standard. Languages: LD, ST, FBD, SFC, IL & FC
Max. Code Size		WP-8x47 accepts max. 1 MB ISaGRAF code size (Appli.x8m must < 1 MB)
Non-ISaGRAF		Options: Microsoft EVC++4.0 or VS.NET 2003/2005/2008 (VB.NET 2003/2005/2008, C#.NET 2003/2005/2008)
Web Service
Web HMI		Support Web HMI function, PC running Internet Explorer can access to the WP-8x47 via Local Ethernet or Internet or dial Modem, monitoring and control.
Security		Web HMI supports three levels user name and password protection
Power Supply
Input Range		+10 ~ +30 VDC (unregulated)
Isolated		1 kV
Redundant Power Inputs		Yes, with one power relay (1 A @ 24 VDC) for alarm
Protection		WP-8447: 1.1 A, 5 V supply to CPU and backplane; 4.9 A, 5 V supply to I/O expansion slots, total 30 W
Consumption		WP-8447: 9.1 W (0.38 A @ 24 V);
General Environment
Temperature		Operating: -25 ~ +75 °C ( -13 ~ +167 ° F) , Storage : -30 ~ +85 °C ( -40 ~ +176 ° F)
Humidity		5 ~ 95 % RH (non-condensing )
System
CPU		CPU: PXA270, 32-bit and 520 MHz or compatible
Dual Watchdog Timers		Watchdog: Dual Watchdog Timers
RTC (Real Time Clock)		Provide seconds, minutes, hours, day of week/month, month and year, valid from 1980 to 2079
SDRAM		128 MB
Dual Battery Backup SRAM		512 KB (for 5 years data retention while power off)
FLASH		96 MB (64 MB for OS image, 31 MB for built-in Flash disk, 1 MB for registry)
Expansion Flash Memory		microSD socket with 1 GB microSD card (can support up to 16 GB compatible microSDHC card)
EEPROM		16 KB, Data retention: 40 years. 1,000,000 erase/write cycles
Rotary Switch		Yes (0~9)
DIP Switch		Yes (8 bits)
NET ID		From 1 ~ 255, User-assigned by software
Unique Serial Number		Yes,64-bit hardware unique serial number
Serial Ports
VGA Port		1 VGA port (800 x 600 resolution)
USB Port		one USB 1.1 Host ports for USB mouse, keyboard or USB drive
COM0		Internal communication with the I-87K High Profile modules in slots
COM1		RS-232 (RxD, TxD, and GND); Non-Isolated; Speed: 115200 bps max.
COM2	RS-485	D2+, D2- ; self-tuner ASIC inside; Speed: 115200 bps max.
COM2	Isolated	3000 VDC
COM3		RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, DATA+ and DATA- for RS-485); Non-Isolated; Speed: 115200 bps max.
COM4		RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-Isolated; Speed: 115200 bps max.
Ethernet		2 Ethernet Ports: LAN1 & LAN2, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) Please use NS-205/NS-208 Industrial Ethernet Switch.
I/O Slots
Slot Number		4 slot (slot 0 ~ 3)
Slot Number		Accept High Profile I-8K Parallel & High Profile I-87K Serial I/O boards
Hot Swap		* I/O Module Hot Swap Ability: for High Profile I-87K only
Mechanical
Dimensions (W x L x H)		231 mm x 132 mm x 111 mm
Installation		DIN-Rail or Wall Mounting
Motion
Motion Control		WP-8447/8847 integrate with one I-8091W (2-axis) or two I-8091W (4-axis) can do motion control
PWM Output
High Speed PWM Module		I-8088W, 8-ch PWM outputs, 1Hz ~ 100 KHz, duty: 0.1 ~ 99.9%
DO Module as PWM		8-ch. max. 250 Hz max. For Off=2 & On=2 ms . Output square curve: Off: 2 ~ 32766 ms, On: 2 ~ 32766 ms. Optional DO Boards: I-8037W, 8041W, 8041AW, 8042W, 8050W, 8054W, 8055W, 8056W, 8057W, 8060W, 8063W, 8064W, 8068W, 8069W (Relay Output boards cannot generate fast square pulse)
Counter, Encoder, Frequency
Parallel DI Counter		8-ch. max. For 1 controller. Counter val: 32-bit. 250 Hz max. Min. ON & OFF width must > 2 ms. Optional DI boards: I-8040W, 8040PW, 8042W, 8048W, 8050W, 8051W, 8052W, 8053W, 8053PW, 8054W, 8055W, 8058W, 8063W.
Serial DI Counter		Counter input: 100 Hz max. Counter value: 0 ~ 65535 (16-bit) Optional serial I-87K DI boards: I-87040W, 87046W, 87051W, 87052W, 87053W, 87053W-A5, 87054W, 87055W, 87058W, 87059W, 87063W.
Remote DI Counter		All remote I-7000 & I-87K DI modules support counters. 100 Hz max. value: 0 ~ 65535
High Speed Counter		I-87082W: 100 kHz max. 32 bit; I-8084W : 450 kHz max. 32 bit
Encoder		I-8084W : 4-ch encoder, can be dir/pulse, or up/down or A/B phase (Quard. mode) * Not support Encoder Z-index
Frequency		I-87082W: 2-ch, 1 Hz ~ 100 kHz; I-8084W : 8-ch, 1 Hz ~ 450 kHz;
Protocols
Modbus RTU/ASCII Master (multi-port)		Up to 10 COM Ports (COM1~ 4 and COM5~COM14 if multi-serial port boards are plugged in Slot 0~3) can support multi-ports of Modbus RTU/ASCII Master protocol to connect to other Modbus Slave devices. (WP-8147 has no COM3 & COM4.)
Modbus RTU Slave Protocol		Up to 5 COM Ports (COM1, one of COM2/3, COM4 and COM5 ~ COM8) can support Modbus RTU Slave protocol for connecting ISaGRAF, PC/HMI/OPC Server & HMI panels. (WP-8147 has no COM3 & COM4.)
Modbus TCP/IP Slave Protocol		2 Ethernet Ports all support Modbus TCP/IP Slave protocol for connecting ISaGRAF & PC/HMI.LAN1 & LAN2 support total up to 32 connections. (If WP-8x47 uses 1 connection to connect each PC/HMI, it can connect up to 32 PC/HMI; If WP-8x47 uses 2 connections to connect each PC/HMI, it can connect up to 16 PC/HMI; ...) When one Ethernet ports is broken, the other one can still connect to PC/HMI.
Web HMI Protocol		Ethernet port for connecting PC running Internet Explorer.
I-7000 & I-87K RS-485 Remote I/O		One of COM2, COM3 supports I-7000 I/O modules, I-87K base + I-87K Serial I/O boards and RU-87P1/2/4/8 + I-87K High Profile I/O boards as Remote I/O. Max. 255 pcs. of I-7000/87K Remote I/O modules for one controller. (WP-8147 has no COM3 & COM4.)
M-7000 Series Modbus I/O		Max. 10 RS-485 ports (COM1~4 & COM5~COM14 if multi-serial port boards are plugged in) can support M-7000 series Modbus I/O. Each port can connect up to 32 M-7000 Modules.
Modbus TCP/IP I/O		LAN2 supports ICP DAS Ethernet I/O : I-8KE4-MTCP and I-8KE8-MTCP listed at www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) FAQ-042. If LAN2 is broken, it will switch to LAN1 automatically to continuously work. (This need LAN1 & LAN2’s IP are set in the same IP domain)
FRnet I/O		Support max 8 pcs. I-8172W boards in slot 0 to 7 to connect to FRnet I/O modules, like FR-2053, FR-2057 FR-32R, FR-32P, atwww.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) FAQ-048. Each I-8172w board can connect up to 256 DI plus 256 DO channels.
Send Email		Supports mail_snd and mail_set functions to send email with one attached file via Ethernet port.
Ebus		To exchange data between ICP DAS’s ISaGRAF Ethernet controllers via Ethernet port. (LAN2 Port only)
SMS: Short Message Service		One of COM4 (or COM5 if multi-serial port board is plugged in) can link to a GSM Modem to support SMS. User can request data/control the controller by cellular phone. The controller can also send data & alarms to user’s cellular phone. Optional GSM Modems: Supreme (850/900/1800/1900 GSM/GPRS External Modem)
User-defined Protocol		User can write his own protocol applied at COM1~COM4 & COM5~COM14(if multi-serial port boards are plugged in) by Serial communication function blocks.
Modem_Link		WP-8x47 series does not support Modem_Link.
MMICON/LCD		COM4 or COM5(if I-8112W/8114W is found) supports ICP DAS's MMICON. The MMICON is featured with a 240 x 64 dot LCD & a 4 x 4 Keyboard to display picture, string, integer, float, & input a char, string, integer & float.
UDP Server & UDP Client (Exchange Message& Auto-Report)		LAN1 or LAN2 support UDP Server and UDP/IP Client protocol to send/receive message to/from PC/HMI or other devices. For example, to automatically report data to InduSoft's RXTX driver.
TCP Client (Exchange Message & Auto-Report)		LAN1 or LAN2 support TCP Client protocol to send/receive message to/from PC/HMI or other devices which support TCP Server protocol. For example, to automatically report data to InduSoft ‘s RXTX driver, or to connect a location camera.
New Hot-Swap and Redundant System		This redundant system has setup two “Active IP” address point to the active WP-8x47's LAN1 and LAN2 ports always. One or two or more PC/HMI/SCADA can communicate with this redundant system via one of the two given active IP. So the PC/HMI/SCADA can access to the system easily without any notice about which WP-8x47 is currently active. Moreover, the new redundant system can integrate with the RU-87P4 and RU-87P8 expansion unit plus the I-87K high-profile I/O cards to support the hot-swap application. If the I/O card is damaged, the maintenance person just takes one good-card with same model number to hot-swap the damaged one without stopping this redundant system. Please refer to www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) FAQ-093.
CAN/CANopen		WP-8x47 can use its COM1,3,4 or COM5~COM14 resides at the I-8112iW/8114W/8114iW RS-232 expansion board to connect one I-7530 : the RS-232 to CAN converter to support CAN and CANopen devices and sensors. One WP-8x47 supports max.10 RS-232 ports to connect max.10 I-7530. Please refer to www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) FAQ-086.
