| System Software |
OS |
Windows CE 5.0 |
.Net Compact Framework |
2.0 |
Embedded Service |
FTP Server, Web Server |
| Development Software |
| ISaGRAF Software |
ISaGRAF Version 3 : IEC 61131-3 standard. Languages: LD, ST, FBD, SFC, IL & FC |
| Max. Code Size |
WP-8x47 accepts max. 1 MB ISaGRAF code size (Appli.x8m must < 1 MB) |
| Non-ISaGRAF |
Options: Microsoft EVC++4.0 or VS.NET 2003/2005/2008 (VB.NET 2003/2005/2008, C#.NET 2003/2005/2008) |
| Web Service |
| Web HMI |
Support Web HMI function, PC running Internet Explorer can access to the WP-8x47 via Local Ethernet or Internet or dial Modem, monitoring and control. |
| Security |
Web HMI supports three levels user name and password protection |
| Power Supply |
|
| Input Range |
+10 ~ +30 VDC (unregulated) |
| Isolated |
1 kV |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Protection |

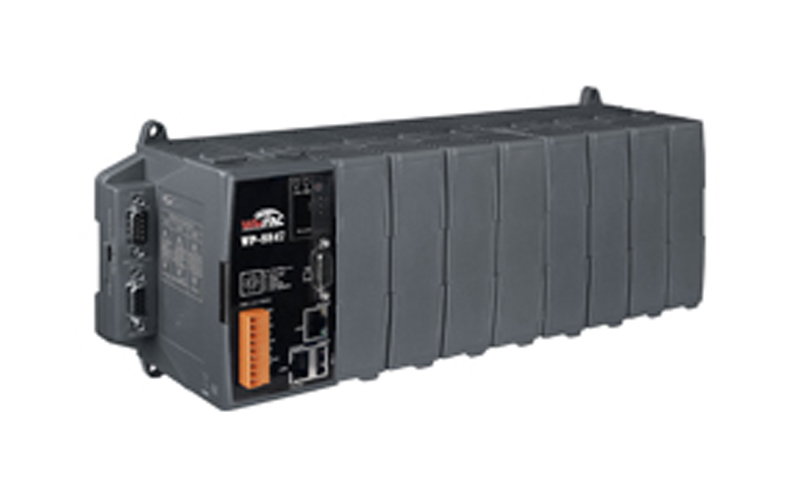

WP-8847: 1.2 A, 5 V supply to CPU and backplane; 4.8 A, 5 V supply to I/O expansion slots, total 30 W |
| Consumption |
WP-8847: 9.6 W (0.4 A @ 24 V); |
| General Environment |
| Temperature |
Operating: -25 ~ +75 °C ( -13 ~ +167 ° F) ,
Storage : -30 ~ +85 °C ( -40 ~ +176 ° F) |
| Humidity |
5 ~ 95 % RH (non-condensing ) |
| System |
| CPU |
CPU: PXA270, 32-bit and 520 MHz or compatible |
| Dual Watchdog Timers |
Watchdog: Dual Watchdog Timers |
| RTC (Real Time Clock) |
Provide seconds, minutes, hours, day of week/month, month and year, valid from 1980 to 2079 |
| SDRAM |
128 MB |
Dual Battery Backup SRAM |
512 KB (for 5 years data retention while power off) |
| FLASH |
96 MB (64 MB for OS image, 31 MB for built-in Flash disk, 1 MB for registry) |
Expansion Flash Memory |
microSD socket with 1 GB microSD card (can support up to 16 GB compatible microSDHC card) |
| EEPROM |
16 KB, Data retention: 40 years. 1,000,000 erase/write cycles |
| Rotary Switch |
Yes (0~9) |
| DIP Switch |
Yes (8 bits) |
| NET ID |
From 1 ~ 255, User-assigned by software |
| Unique Serial Number |
Yes,64-bit hardware unique serial number |
| Serial Ports |
| VGA Port |
1 VGA port (800 x 600 resolution) |
| USB Port |
one USB 1.1 Host ports for USB mouse, keyboard or USB drive |
COM0 |
Internal communication with the I-87K High Profile modules in slots |
| COM1 |
RS-232 (RxD, TxD, and GND); Non-Isolated; Speed: 115200 bps max. |
| COM2 |
RS-485 |
D2+, D2- ; self-tuner ASIC inside; Speed: 115200 bps max. |
| Isolated |
3000 VDC |
| COM3 |
RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232,
DATA+ and DATA- for RS-485);
Non-Isolated; Speed: 115200 bps max. |
| COM4 |
RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND);
Non-Isolated; Speed: 115200 bps max. |
Ethernet |
2 Ethernet Ports: LAN1 & LAN2, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
Please use NS-205/NS-208 Industrial Ethernet Switch. |
| I/O Slots |
| Slot Number |
8 slot (slot 0 ~ 7) |
| Accept High Profile I-8K Parallel & High Profile I-87K Serial I/O boards |
| Hot Swap |
* I/O Module Hot Swap Ability: for High Profile I-87K only |
| Mechanical |
| Dimensions (W x L x H) |
355 mm x 132 mm x 111 mm |
| Installation |
DIN-Rail or Wall Mounting |
| Motion |
Motion Control |
WP-8447/8847 integrate with one I-8091W (2-axis) or two I-8091W (4-axis) can do motion control |
| PWM Output |
| High Speed PWM Module |
I-8088W, 8-ch PWM outputs, 1Hz ~ 100 KHz, duty: 0.1 ~ 99.9% |
| DO Module as PWM |
8-ch. max. 250 Hz max. For Off=2 & On=2 ms . Output square curve: Off: 2 ~ 32766 ms, On: 2 ~ 32766 ms. Optional DO Boards: I-8037W, 8041W, 8041AW, 8042W, 8050W, 8054W, 8055W, 8056W, 8057W, 8060W, 8063W, 8064W, 8068W, 8069W (Relay Output boards cannot generate fast square pulse) |
| Counter, Encoder, Frequency |
| Parallel DI Counter |
8-ch. max. For 1 controller. Counter val: 32-bit. 250 Hz max. Min. ON & OFF width must > 2 ms. Optional DI boards: I-8040W, 8040PW, 8042W, 8048W, 8050W, 8051W, 8052W, 8053W, 8053PW, 8054W, 8055W, 8058W, 8063W. |
| Serial DI Counter |
Counter input: 100 Hz max. Counter value: 0 ~ 65535 (16-bit)
Optional serial I-87K DI boards: I-87040W, 87046W, 87051W, 87052W, 87053W, 87053W-A5, 87054W, 87055W, 87058W, 87059W, 87063W. |
| Remote DI Counter |
All remote I-7000 & I-87K DI modules support counters. 100 Hz max. value: 0 ~ 65535 |
| High Speed Counter |
I-87082W: 100 kHz max. 32 bit; I-8084W : 450 kHz max. 32 bit |
Encoder |
I-8084W : 4-ch encoder, can be dir/pulse, or up/down or A/B phase (Quard. mode)
* Not support Encoder Z-index |
Frequency |
I-87082W: 2-ch, 1 Hz ~ 100 kHz; I-8084W : 8-ch, 1 Hz ~ 450 kHz; |
| Protocols |
Modbus RTU/ASCII Master
(multi-port) |
Up to 10 COM Ports (COM1~ 4 and COM5~COM14 if multi-serial port boards are plugged in Slot 0~3) can support multi-ports of Modbus RTU/ASCII Master protocol to connect to other Modbus Slave devices. (WP-8147 has no COM3 & COM4.) |
| Modbus RTU Slave Protocol |
Up to 5 COM Ports (COM1, one of COM2/3, COM4 and COM5 ~ COM8) can support Modbus RTU Slave protocol for connecting ISaGRAF, PC/HMI/OPC Server & HMI panels. (WP-8147 has no COM3 & COM4.) |
| Modbus TCP/IP Slave Protocol |
2 Ethernet Ports all support Modbus TCP/IP Slave protocol for connecting ISaGRAF & PC/HMI.LAN1 & LAN2 support total up to 32 connections. (If WP-8x47 uses 1 connection to connect each PC/HMI, it can connect up to 32 PC/HMI; If WP-8x47 uses 2 connections to connect each PC/HMI, it can connect up to 16 PC/HMI; ...) When one Ethernet ports is broken, the other one can still connect to PC/HMI. |
| Web HMI Protocol |
Ethernet port for connecting PC running Internet Explorer. |
I-7000 & I-87K RS-485
Remote I/O |
One of COM2, COM3 supports I-7000 I/O modules, I-87K base + I-87K Serial I/O boards and RU-87P1/2/4/8 + I-87K High Profile I/O boards as Remote I/O. Max. 255 pcs. of I-7000/87K Remote I/O modules for one controller. (WP-8147 has no COM3 & COM4.) |
M-7000 Series Modbus I/O |
Max. 10 RS-485 ports (COM1~4 & COM5~COM14 if multi-serial port boards are plugged in) can support M-7000 series Modbus I/O. Each port can connect up to 32 M-7000 Modules. |
Modbus TCP/IP I/O |
LAN2 supports ICP DAS Ethernet I/O : I-8KE4-MTCP and I-8KE8-MTCP listed at www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) FAQ-042.
If LAN2 is broken, it will switch to LAN1 automatically to continuously work. (This need LAN1 & LAN2’s IP are set in the same IP domain) |
| FRnet I/O |
Support max 8 pcs. I-8172W boards in slot 0 to 7 to connect to FRnet I/O modules, like FR-2053, FR-2057 FR-32R, FR-32P, atwww.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) FAQ-048. Each I-8172w board can connect up to 256 DI plus 256 DO channels. |
| Send Email |
Supports mail_snd and mail_set functions to send email with one attached file via Ethernet port. |
| Ebus |
To exchange data between ICP DAS’s ISaGRAF Ethernet controllers via Ethernet port. (LAN2 Port only) |
| SMS: Short Message Service |
One of COM4 (or COM5 if multi-serial port board is plugged in) can link to a GSM Modem to support SMS. User can request data/control the controller by cellular phone. The controller can also send data & alarms to user’s cellular phone. Optional GSM Modems: Supreme (850/900/1800/1900 GSM/GPRS External Modem) |
| User-defined Protocol |
User can write his own protocol applied at COM1~COM4 & COM5~COM14(if multi-serial port boards are plugged in) by Serial communication function blocks. |
| Modem_Link |
WP-8x47 series does not support Modem_Link. |
| MMICON/LCD |
COM4 or COM5(if I-8112W/8114W is found) supports ICP DAS's MMICON. The MMICON is featured with a 240 x 64 dot LCD & a 4 x 4 Keyboard to display picture, string, integer, float, & input a char, string, integer & float. |
UDP Server & UDP Client
(Exchange Message& Auto-Report) |
LAN1 or LAN2 support UDP Server and UDP/IP Client protocol to send/receive message to/from PC/HMI or other devices. For example, to automatically report data to InduSoft's RXTX driver. |
TCP Client
(Exchange Message & Auto-Report) |
LAN1 or LAN2 support TCP Client protocol to send/receive message to/from PC/HMI or other devices which support TCP Server protocol. For example, to automatically report data to InduSoft ‘s RXTX driver, or to connect a location camera. |
| New Hot-Swap and Redundant System |
This redundant system has setup two “Active IP” address point to the active WP-8x47's LAN1 and LAN2 ports always. One or two or more PC/HMI/SCADA can communicate with this redundant system via one of the two given active IP. So the PC/HMI/SCADA can access to the system easily without any notice about which WP-8x47 is currently active.
Moreover, the new redundant system can integrate with the RU-87P4 and RU-87P8 expansion unit plus the I-87K high-profile I/O cards to support the hot-swap application. If the I/O card is damaged, the maintenance person just takes one good-card with same model number to hot-swap the damaged one without stopping this redundant system. Please refer to www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) FAQ-093. |
| CAN/CANopen |
WP-8x47 can use its COM1,3,4 or COM5~COM14 resides at the I-8112iW/8114W/8114iW RS-232 expansion board to connect one I-7530 : the RS-232 to CAN converter to support CAN and CANopen devices and sensors. One WP-8x47 supports max.10 RS-232 ports to connect max.10 I-7530. Please refer to www.icpdas.com > FAQ > Software > ISaGRAF Ver.3 (English) FAQ-086. |
