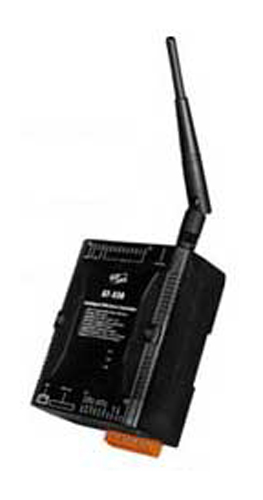

GT-530 - Intelligent SMS Alarm Controller by ICP DAS
|
|
|
ntelligent SMS Alarm Controller with 10 digital inputs, 2 digital outputs, an RS-232 port and GPRS / GSM communication. Comes with free software setup utility. Supports operating temperatures from -25℃ ~ +55℃
|
|
|
Remote Control & Monitoring, sends text message alarms with I/O. GT-530 is an intelligent SMS controller for industry applications with the simple commands and SMS tunnel function, and power can be input by the external power or Li-Battery. It supports UNICODE or 7 bit format for users to implement sending SMS messages with various languages. Applying GT-530, the SMS reports can be sent by defined time or DI/counter event trigger. This can be a remote control and alarm system allowing you to use your mobile phone to monitor and control your business from any location. Its alarm facilities provide a flexible way to distribute critical alarm information to any number of mobile phone users. GT-530 can monitor total 10 digital inputs (6 counters). The users can interrogate the status of I/O through SMS messages. GT-530 also has 2 Digital output which can be activated via DI trigger or SMS to control the lamps, pumps, heaters etc.
- Support 900/1800/1900 MHz tri-band frequency
- Identify ASCII or Unicode SMS Automatically
- Support max. 140 ASCII Characters
- Support max. 70 Unicode Characters
- Built-in ASCII Commands and SMS tunnel Communication Modes
- Max. 10 Default Phone Numbers
- Built-in Watch-dog Function
- Industrial Design with Surge Protection
- Support SMS setting and control
- 10 DI (6 Counter), 2 DO, 2 RS232 port
- Digital input support NC(normal close)/NO(normal open)/Counter modes
- Send alarm SMS by DI trigger or exceed Counter preset limits
- Support simple command to send SMS via RS232
- Support DC +10 VDC ~ +30 VDC Power Input
- Supports 3.7 V Li-ion Battery Backup
- DIN Rail design
System |
CPU |
32 bit Arm7, 72 MHz |
SRAM |
32 Kbytes |
Flash Memory |
512 Kbytes |
RTC |
Gives time(sec, min, hour) & date, leap year compensation from 1980 to 2079 |
WDT(watchdog) |
Yes |
Serial ports |
COM2 |
RS-232 : TxD,RxD,GND for configuration |
COM3 |
RS-232 : TxD,RxD,GND for communication with other devices |
DIO |
Input |
10 Channel ( 6 Counter 5~40Hz + 4 Channel Digital input powered by external power or Li-battery)
On Voltage : +3.5 ~ 24 VDC
Off Voltage : +1V max. |
Output |
D/O :2 Channel Open collector output (100mA@24VDC)
2 digital output channels
Output type : Open-Collector (NPN)
Load Voltage : +24 V max.
Load Current : 100 mA max. |
GSM/GPRS system |
GPRS/GSM |
GPRS/GSM Tri-Band 900/1800/1900 MHz
GPRS multi-slot : class 10/8
GPRS mobile station : class B
GPRS class 10 : Max download speed 85.6 kbps
CSD max speed 14.4 kbps
Compliant to GSM phase 2/2+
-Class 4(2W @ 900 MHz)
-Class 1(1W @ 1800/1900 MHz)
Coding schemes : CS 1, CS 2,CS 3,CS 4
SMS: Text and PDU mode |
Power |
Protection |
Reverse polarity protection |
Frame Ground Protection |
ESD, Surge, EFT, Hi-Pot |
Required Supply Voltage |
+10 VDC ~ +30 VDC
with 600 mAh Li-ion battery backup |
Mechanical |
Casing |
Plastic |
Flammability |
UL 94V-0 materials |
Dimensions (W x L x H) |
91 mm x 132 mm x 52 mm |
Installation |
DIN-Rail |
Environmental |
Operating Temperature |
-25 ℃ ~ +55 ℃ |
Storage Temperature |
-40 ℃ ~ +80 ℃ |
Ambient Relative Humidity |
5 ~ 95% RH, non-condensing |
|
|
