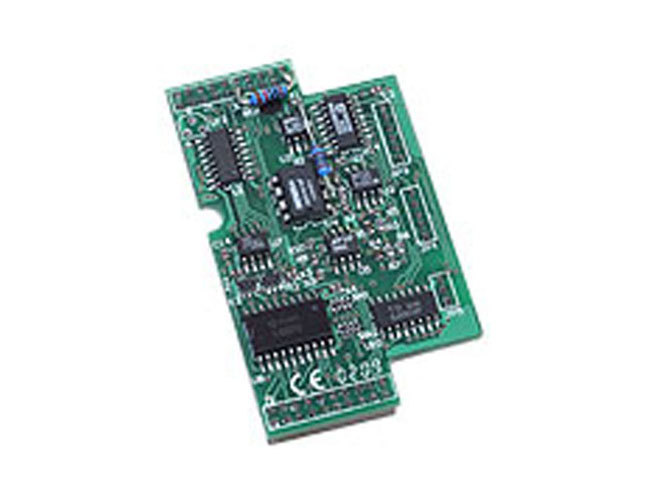

X305D - 7 analog inputs, 1digital input, 1 digital output and one RS 232 port by ICP DAS
|
|
|
7 Channel A/D, 7AI, 1 DI, 1 DO, and 1 RS-485 Channel Module
|
|
|
X305D is an expansion i/o card for use with 7188XB, 7188XG, 7188EX, and 7188EG controllers
Specifications
Analog Input
- Channels : 7
- Resolution : 12-bit
- Input Range/Type : ± 5 V
- Sampling rate :1800 Hz
- Isolated : none
Digital Input
- Channels : 1
- Input Voltage:
Logic high level (3.5V ~ 30V)
Logic low level (0V ~ 1V)
- Isolated : none
Digital Output
- Channels: 1
- Open-collector Output : 100 mA / 30V max
- Isolated : none
RS-485
Power Consumption: 0.9W
|
|
