Advantech PCM-24D2R4-BE

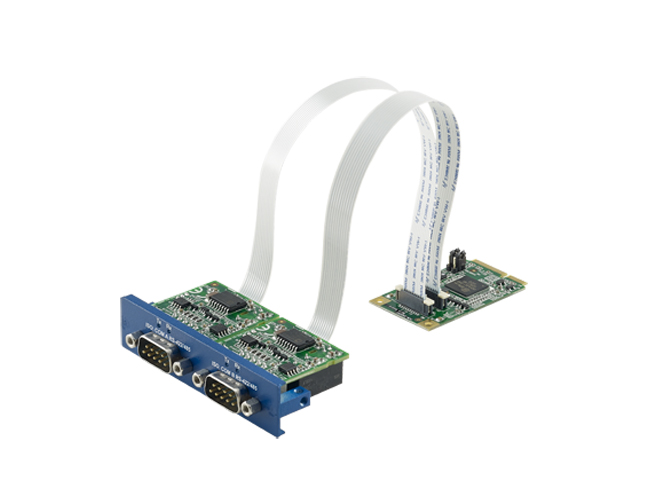

Advantech PCM-24D2R4-BE - Isolated RS-422/485, DB9 x 2, (USB type)
by Advantech

iDoor Module: 2-Ports Isolated RS-422/485 mPCIe, DB9

Meets Advantech Standard iDoor Technology
PCI Express® Mini Card Specification Revision 1.2 compliant
Speeds up to 921.6 kbps for extremely fast data transmission
Supports any baud rate setting (50bps~921.6kbps)
Supports both Isolated & Non-Isolated Protection with 2/4 Ports RS-232/422/485
I/O address automatically assigned by PCIe plug & play
Operating systems supported: Windows 2000/XP/Vista/7, and Linux 2.4/2.6
OXPCIe952/OXPCIe954 UART with 128-byte FIFOs standard
Supports Embedded Automation PC UNO-2200/2300/2400 series
Supports Control DIN-Rail PC UNO-1200/1300/1400 series
Supports Control Cabinet PC UNO-3200/3300/3400 series
Supports Control Panel Computers TPC-xx81/xx82 series
Supports Thin Client Panel Computers TPC-xx51 series

Description
Specification
Datasheet

Advantech PCM-24D2R4-BE

The PCM-24 series are categorized as communication modules from Advantech iDoor Technology. It includes Isolated / Non-Isolated RS-232/422/485 communication cards for automation control, Wi-Fi/3G/GPS/GSM/LTE wireless communication modules for data exchange during the management and machine level of automation application and PoE function for smart camera in detect inspection application of production. The iDoor Technology increases the flexibility to configure the required features for different application.

see datasheet for Advantech PCM-24D2R4-BE
