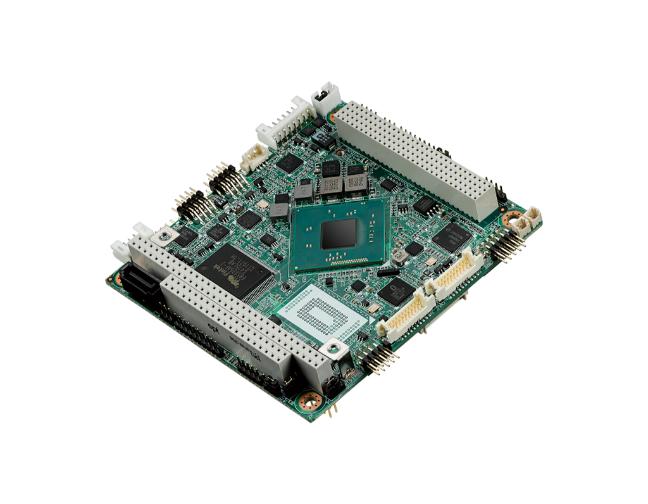

PCM-3365E-S3A2 - Intel® Atom™ E3825 / E3845 & Celeron® N2930, PC/104-Plus SBC, ISA, VGA, HDMI/DVI, LVDS, 6 USB, mSATA or Onboard Flash

Processor
CPU	Intel Atom E3825
Frequency	1.33 GHz
Max Turbo Frequency	-
Core Number	2
L2 Cache	1 MB
BIOS	AMI UEFI BIOS at 64 Mb
Memory
Technology	DDR3L 1066 MHz
Max. Capacity	8 GB
Socket	1 x 204-pin SODIMM
Display
Controller	Intel Gen7 graphic engine
Processor Graphics	DirectX11, OpenGL3.2, OpenCL1.1;Full HW acceleration, decode: H.264, MPEG2/4, VC-1, WMV9. Encode: H.264, MPEG2
VGA	2560 x 1600 at 60Hz
LVDS	24-bit LVDS up to WUXGA 1920 x 1200 at 60Hz, Supports single channel 24-bit LVDS up to 1440 x 900 at 60Hz
HDMI	HDMI 1.4a for HD video playback, 1080P at 60Hz, up to 1920 x 1080
DVI	DVI 1.0 (DVI-D), up to 1920 x 1080
Multiple Display	VGA + LVDS, VGA + HDMI/DVI, HDMI/DVI + LVDS
Ethernet
Speed	10/ 100/ 1000 Mbps
Controller	Intel i210
Connector	Pin Header
Watchdog Timer
	Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds
Storage
SATA	1, up to 3Gb/s (300 MB/s)
mSATA	1 x Full-size (SATA signal shared with Onboard flash)
Onboard Flash	16GB/32GB/64GB (support by request)
Internal I/O
Serial	1 RS-232/422/485 from COM 1, 2 RS-232 from COM2/3 (ESD protection: Air gap ±15kV, Contact ±8kV)
USB2.0	6
I2C	1 (Shared with SMBus pin)
SMBus	1
GPIO	8-bit
Expansion
Mini PCIe	1 x Full-size (default supports SATA and USB, PCIe is supported by request)
PC/104	PC/104 Expansion, Memory and DMA are not supported
PCI-104	PCI-104 Expansion
Power
Power Type	AT / ATX
Power Supply Voltage	5V ± 5%
Power Consumption (Typical)	0.877A@+5V, 0.006A@+12V, 0.003A@+5VSB (4.472W)
Power Consumption (Max)	1.107A@+5V, 0.008A@+12V, 0.008A@+5VSB (5.671W)
Battery	Lithium 3 V / 210 mAH
Power Management	ACPI
Environment
Operational Temperature	0 ~ 60° C with air flow 0.7m/s (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Non-Operational Temperature	-40 ~ 85° C and 60° C @ 95% RH Non-Condensing
Physical
Dimension (mm)	96 x 90 mm (3.8" x 3.5")
Weight	0.735 kg (1.62 lb) (with heat-sink)
Total Height	Top side: 14.4mm; Bottom side:7.8mm, PCB: 1.6mm
