DITHD RD1UCAT2419LH.B2U.O31.V35x.E8.T

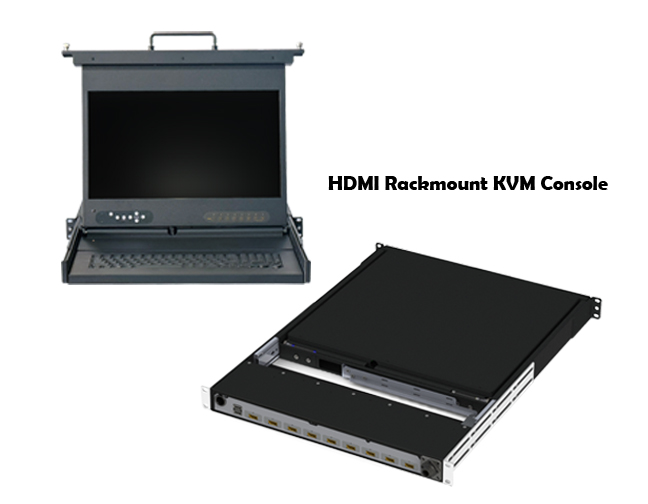

DITHD RD1UCAT2419LH.B2U.O31.V35x.E8.T - 1U, 24" rugged aluminum rackmount KVM console with clamshell design, 19" LED-backlit LCD
by DITHD

MIL-STD 810F/G Compliant / RUGGED Construction
Keyboard: 103 Keys with Integrated 2 Button Glide Pad
Displays: 17.3" or 19" LED Backlit LCD with Anti-Glare, Hight Bright Available
Switches: HDMI (8) / RJ45 (8) Ports Available
CAC Card Reader Included • PCAP Touch Available
MIL Grade C300 Solid Bearing Friction Slide Rails
Thumb Screw Front Face with Collapsible Handle
Power Usage: Less than 45W | DC 12V Power Input
Dimensions: 19" W x 1.75" H x 24" D
Total Weight: 30 lbs.
Operating Temp:
- 173W: 0°C to +70°C
- 19LH: -30°C to +85°C

Description
Specification
Datasheet

DITHD RD1U-CAT2419LH.B2U.O31.V35x.E8.TP19U

(RD1U) 1 rack unit tall, (CAT24) 24" rack depth rugged aluminum rackmount KVM console, clam shell design. Built to meet MIL-STD 810F/G Standard. (19LH) 19" LED backlit LCD display. (B2U) 103 button keyboard with integrated 2 button glide pad. (O31) 8 port HDMI KVM switch. (V35x) FHD 1080x1920 max. resolution @60Hz video controller board. (E8) Locking front face (thumbscrew) with folding handle. ( TP19U) PCAP touch functionality. CAC card reader for additional security.

Specifications
