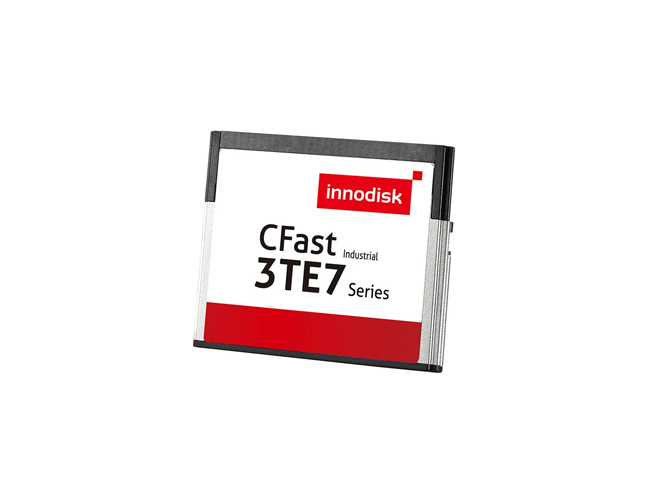

Innodisk DECFA-C12DK1KWAQF - CFast 3TE7 512GB, -40 to 85 Degree C
by InnoDisk

Innodisk DECFA-C12DK1KWAQF

Innodisk CFast 3TE7 is SATA III 6.0 Gb/s Flash based disk, which adopts latest SATA III NAND controller with Innodisk’s exclusive L³ FW architecture. The upgraded L³ FW architecture, combining Innodisk signature 4K mapping algorithm L² FW architecture with powerful LDPC technology, makes 3TE7 series have outstanding high IOPS, better data integrity and extended lifespan through reducing the bad block number happening. Built-in thermal sensor, and iData Guard ensure data integrity and reliability of CFast 3TE7 for industrial applications.

Specifications

• Model Name: CFast 3TE7
• Flash Type: 3D TLC
• Interface: SATA III 6.0 Gb/s
• Form Factor: CFast 2.0
• Capacity: 512 GB
• Sequential R/W (MB/sec, max.): 560/490
• P/E Cycle: 3,000
• TBW (Max.): 1,200
• Storage Temperature: -40~85ºC
• Max. power consumption: 2.5W
• Max. channels: 4
• External DRAM buffer: N
• Feature: AES, H/W Write Protect, S.M.A.R.T.
• Dimension (WxLxH/mm): 42.8 x 36.4 x 3.6
• Vibration: 20G @ [7~2000 Hz]
• Shock: 1500G @ 0.5ms
• MTBF: >3 million hours
